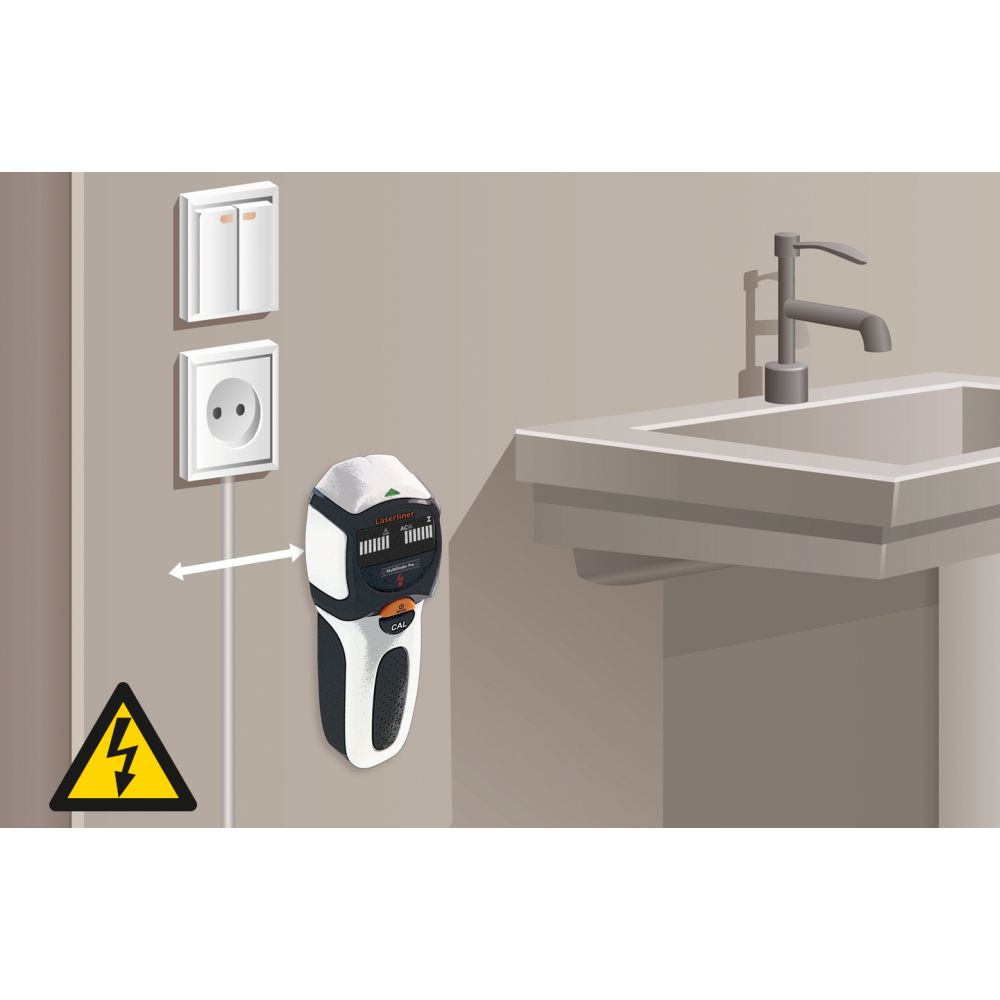

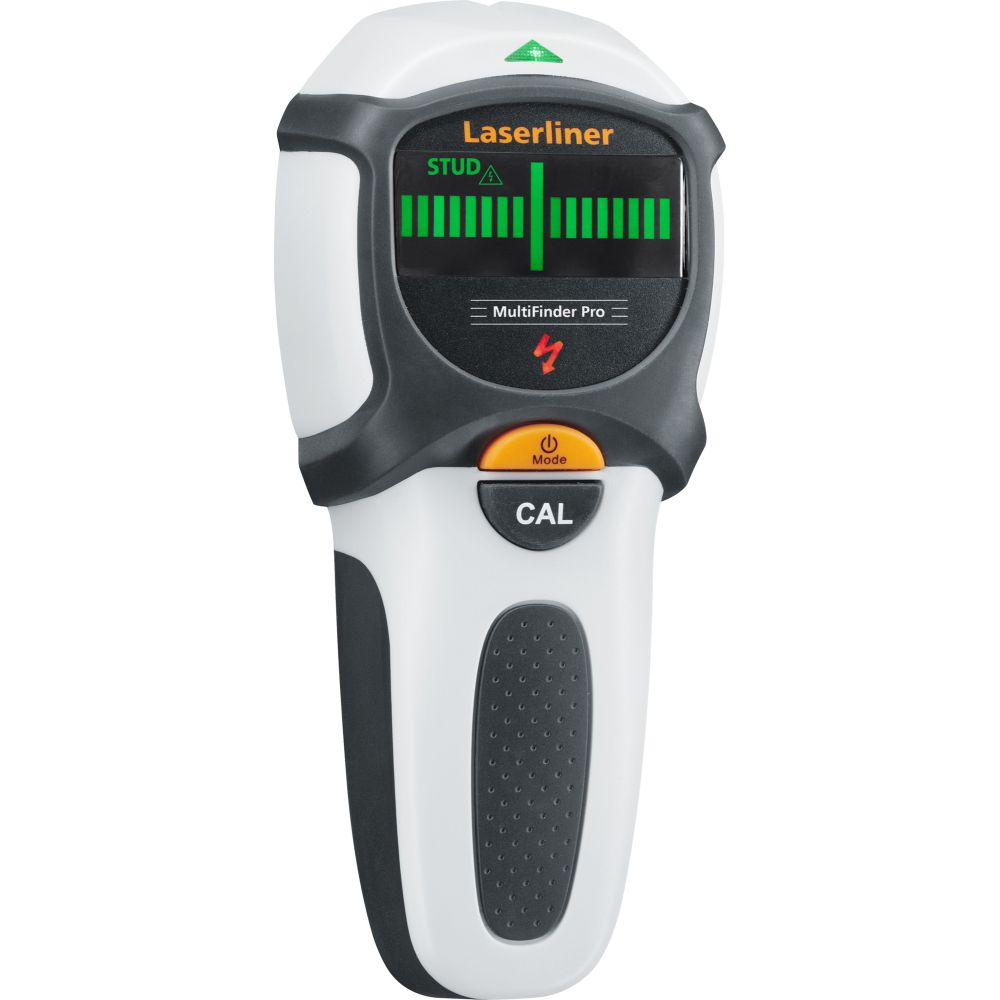

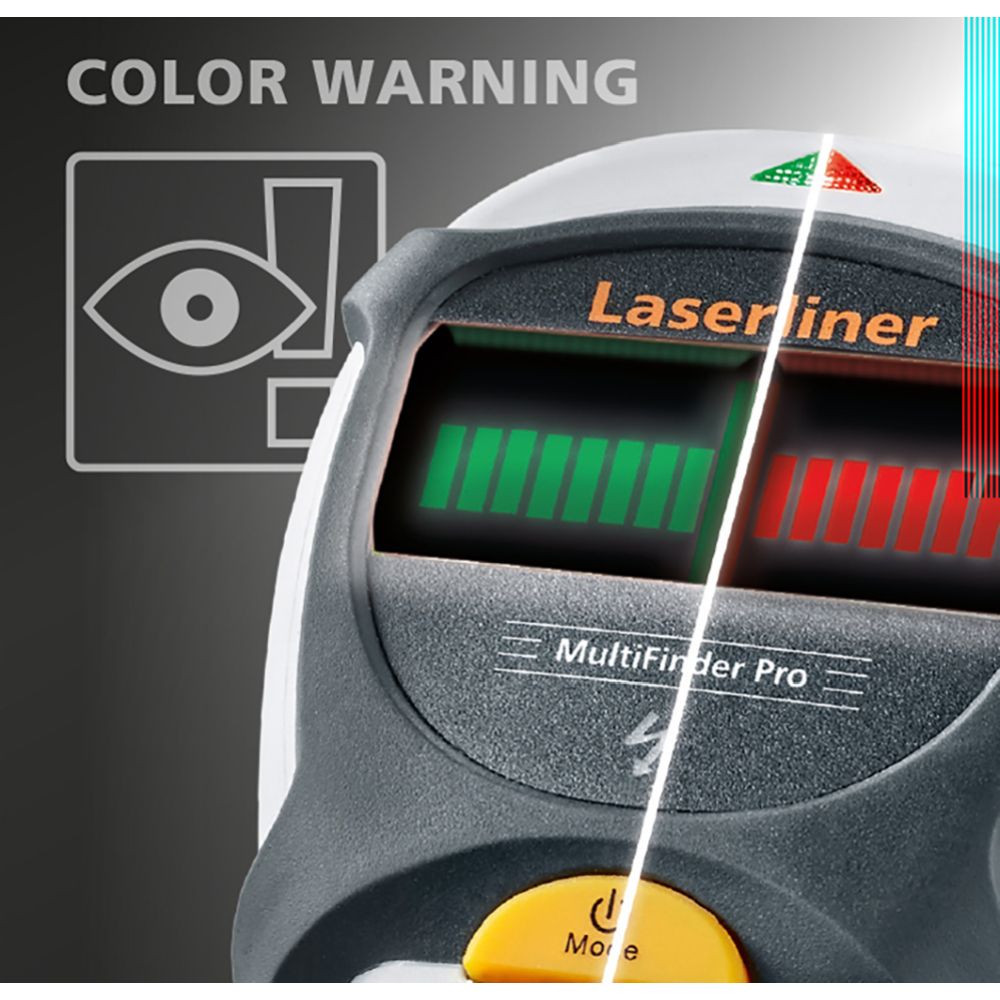

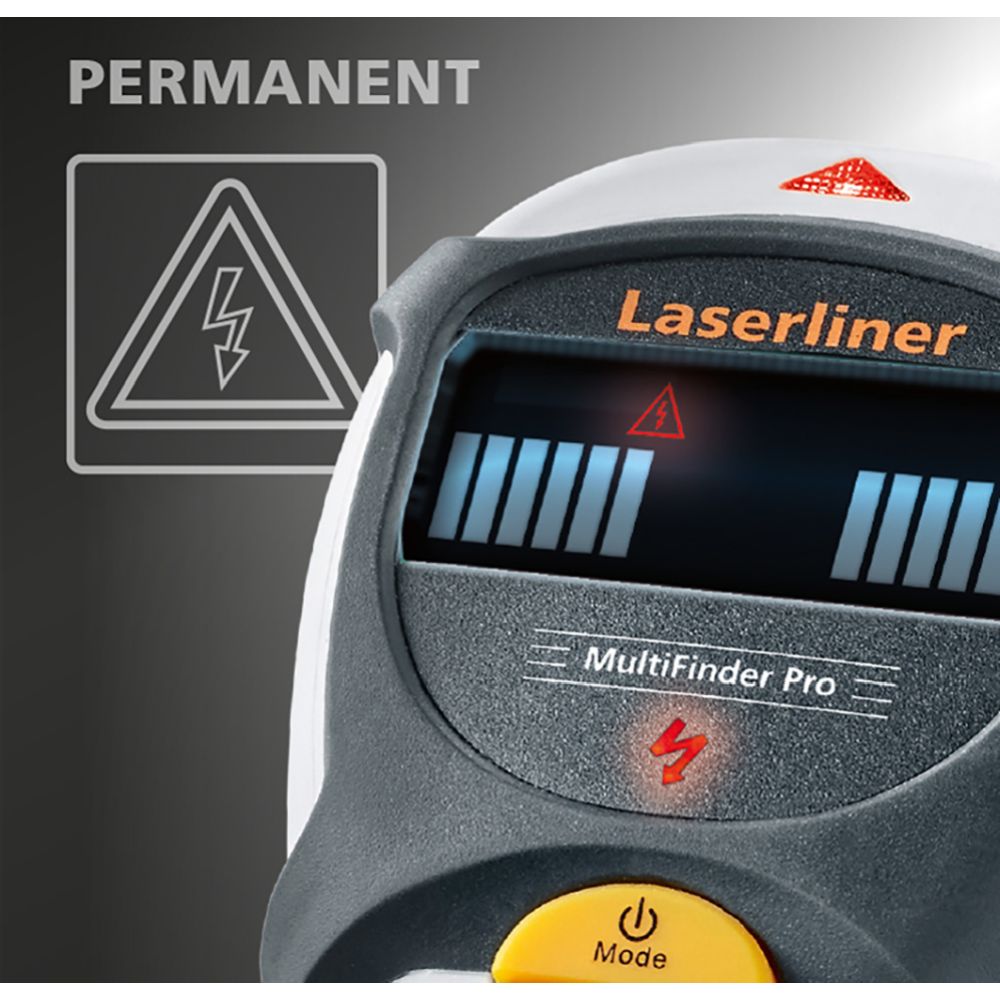

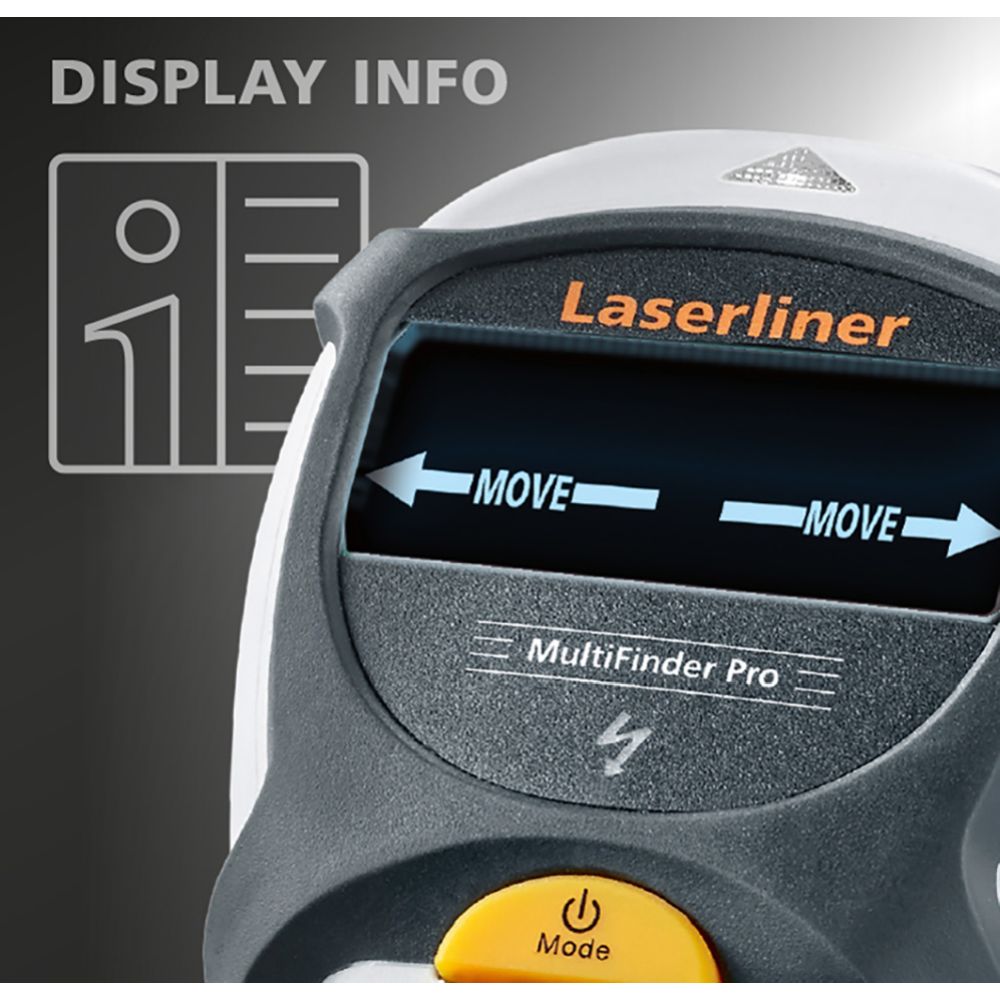

Description: This universal detector reliably locates metal, iron, copper, wood and live wires. The MultiFinder Pro adapts directly to different surfaces, offers reliable drilling, and is suitable for cavity location. It is even able to detect wires underneath plaster when they are not live. Acoustic and optical signals clearly show when items have been located. A permanent voltage warning protects the user. The device is convenient to use due to easy, one-button switching between different measuring modes and the operating instructions on the LC display.
| Operating instructions | ✅ |
| Autocalibration | ✅ |
| Metal detection | ✅ |
| Specific metal detection (iron/copper) | ✅ |

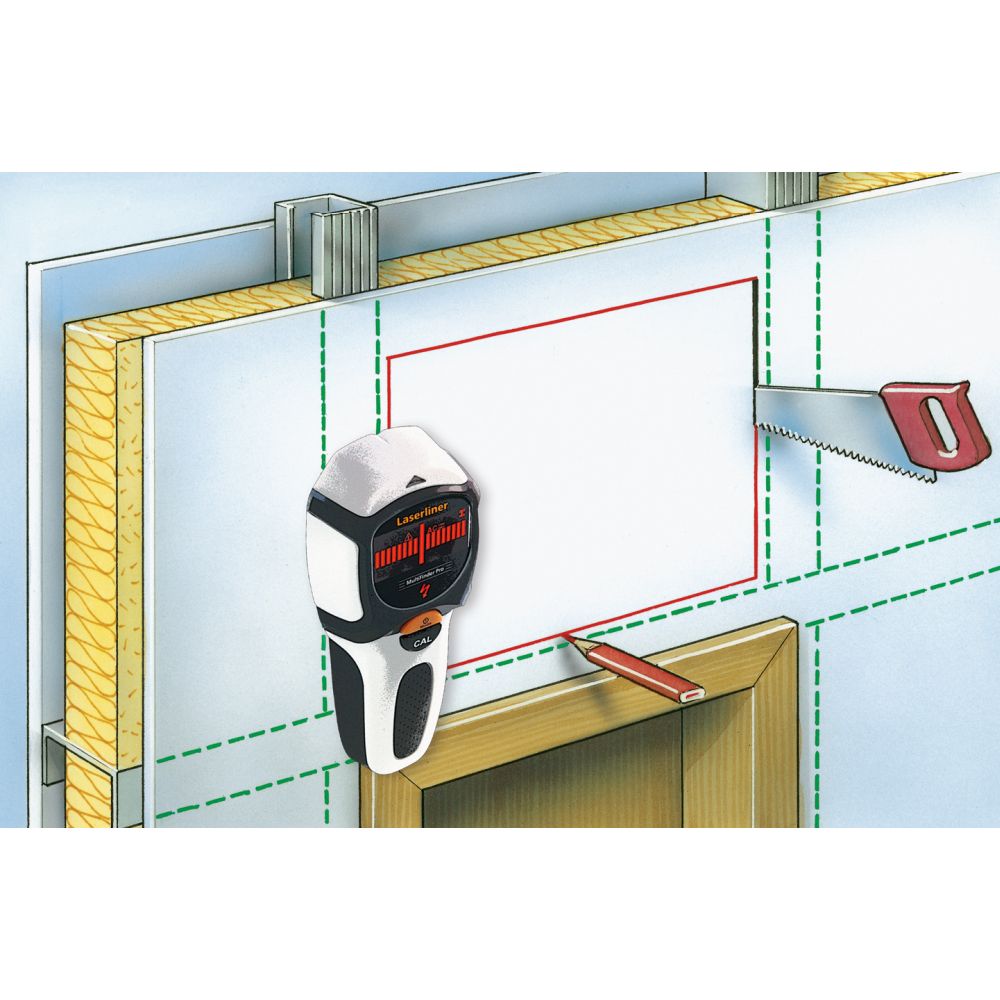

| Identify supporting structures (metal/wood) | ✅ |
| Locate live wires | ✅ |
| Warning for 230 V wires | ✅ |

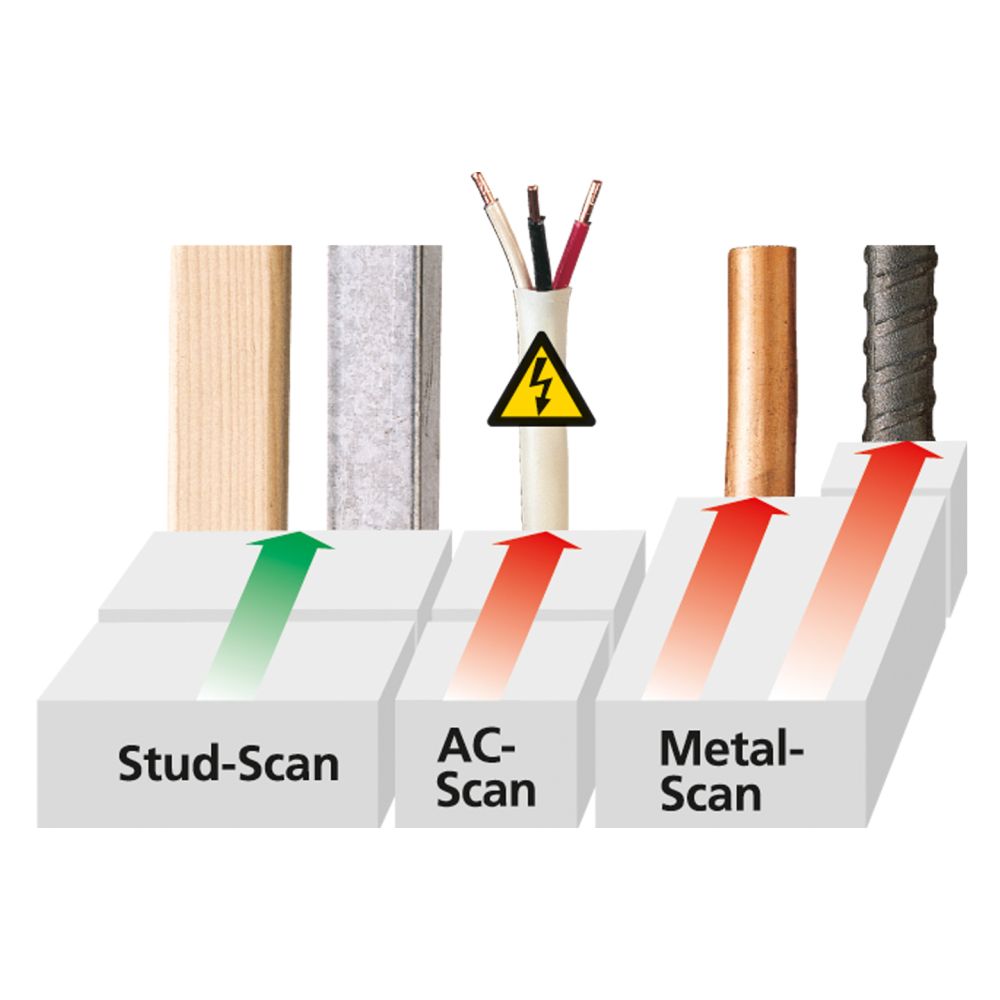

| Measuring Depth | Wood / metal beam location (STUD-SCAN): up to 4 cm depth Targeted location of live supply lines (AC-SCAN): up to 4 cm depth Targeted metal location: Ferro-Scan / Non-Ferro-Scan (METAL-SCAN): up to 10 cm / up to 5 cm depth Location of dead supply lines: up to 4 cm depth |
| Detection Range AC | 110 … 230V, 50 … 60 Hz |
| Power Supply | 1 x 9V 6LR61 (9V block) |
| Operating Time | approx. 3 hours |
| Operating Conditions | 0°C … 40°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 2000 m über NN (Normalnull) |
| Storage Conditions | -20°C … 70°C, Luftfeuchtigkeit max. 80% rH |
| Dimensions (W x H x D) | 80 mm x 186 mm x 40 mm |
| Weight | 230 g (inkl. Batterie) |

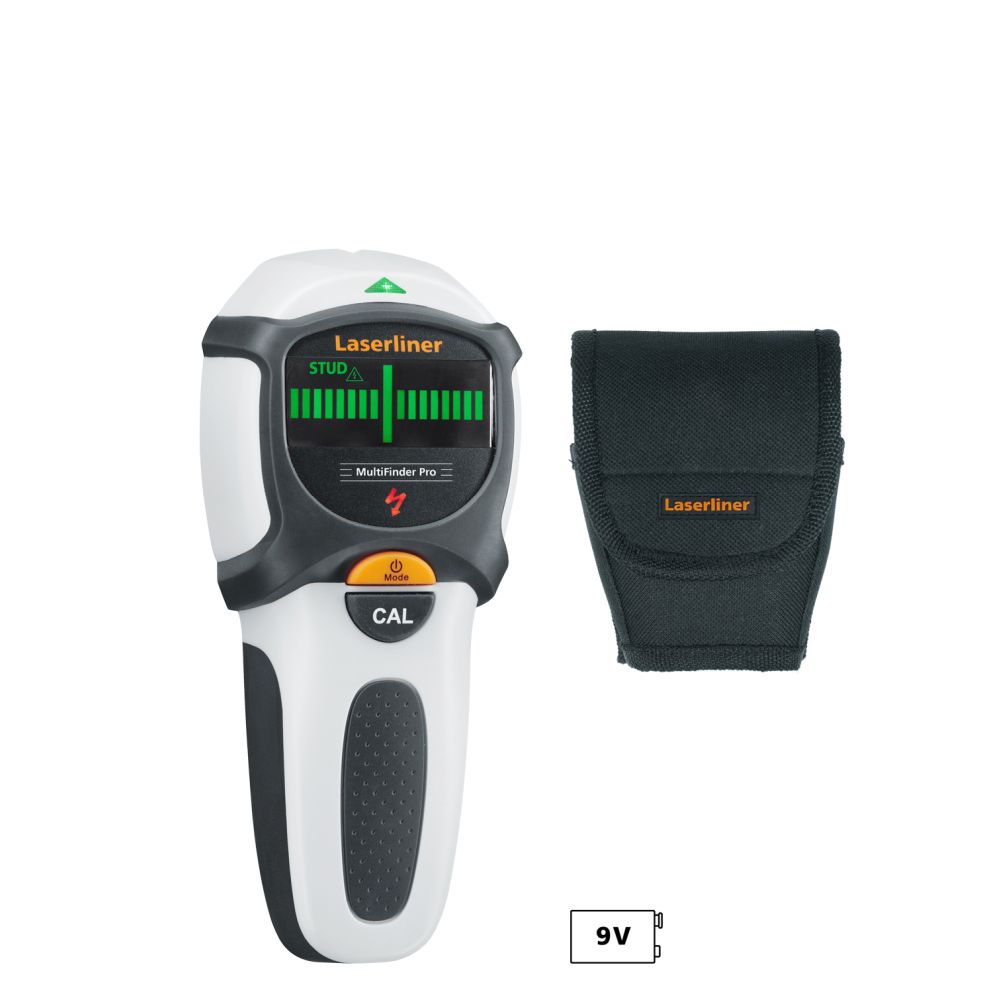

Scope of delivery:
Documentation:
Product information sheetTitel:
Universal locating device
Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
BlackLine
Art.No.: 080.966A, GTIN (EAN): 4021563703630
