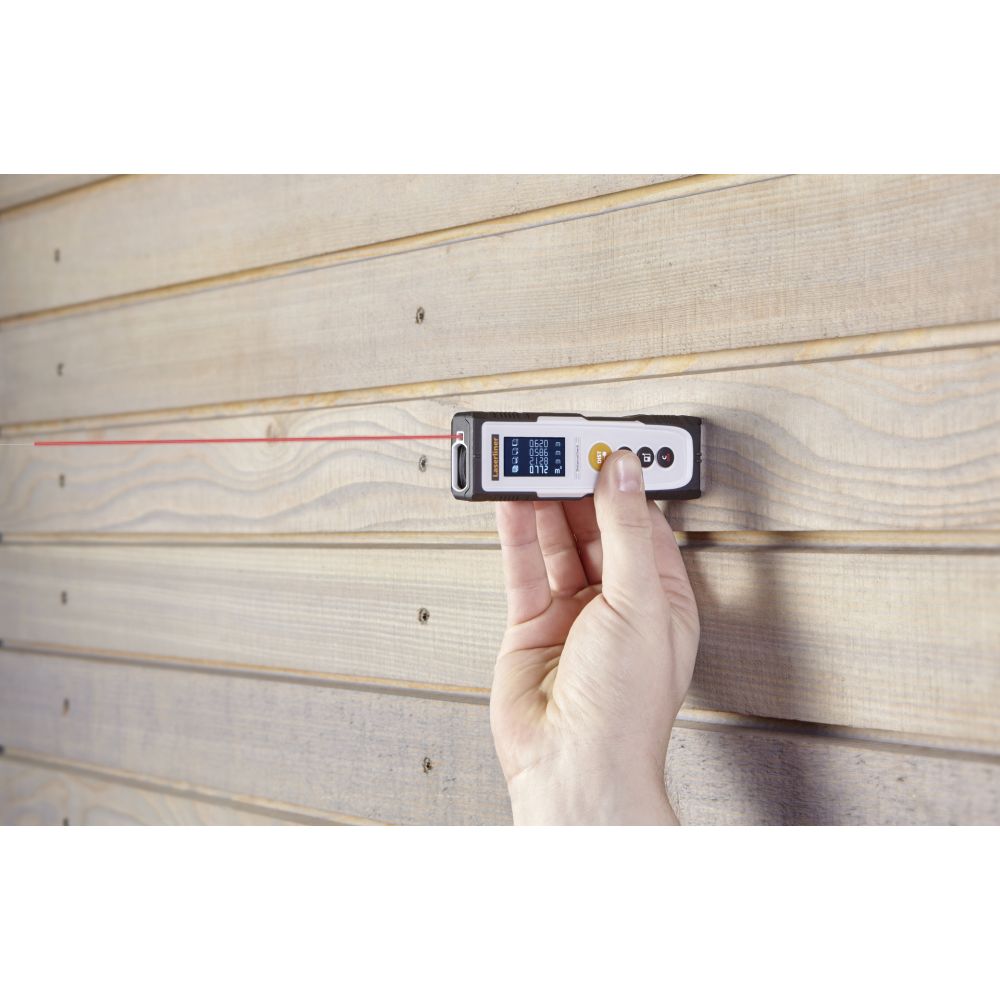

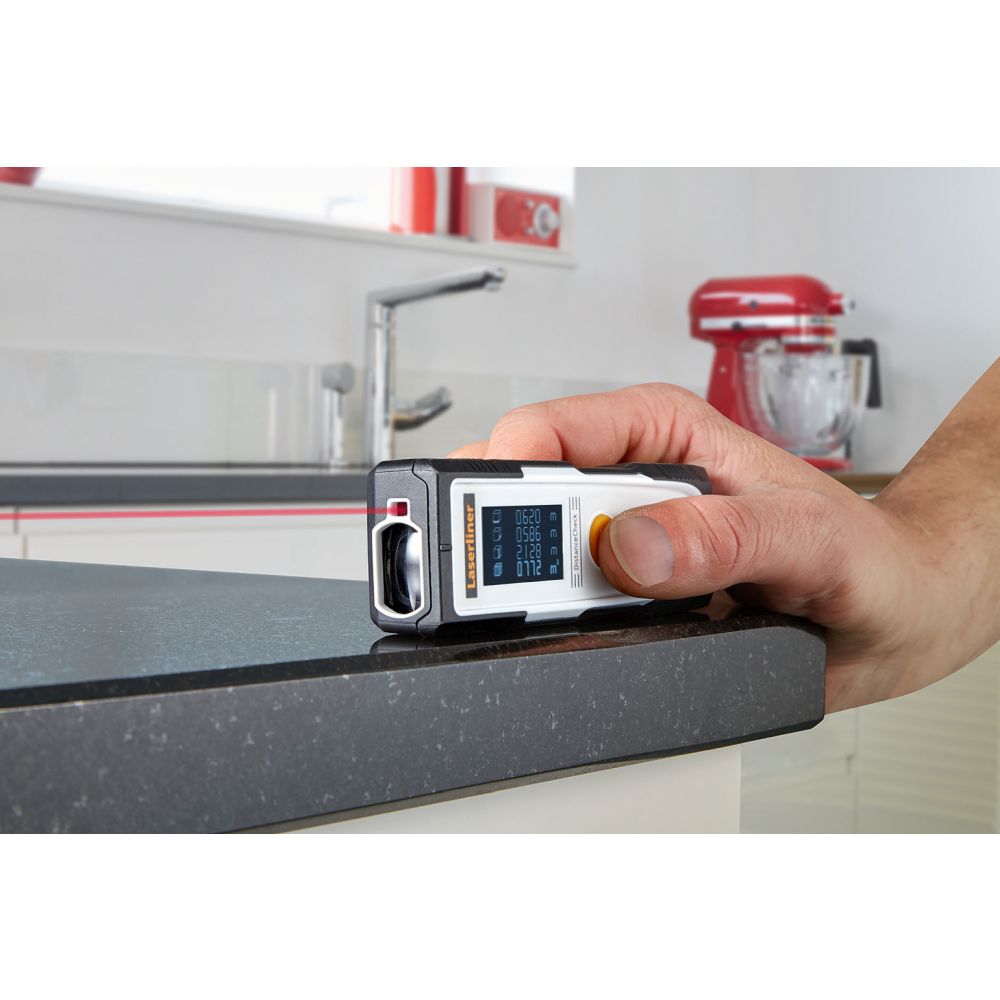

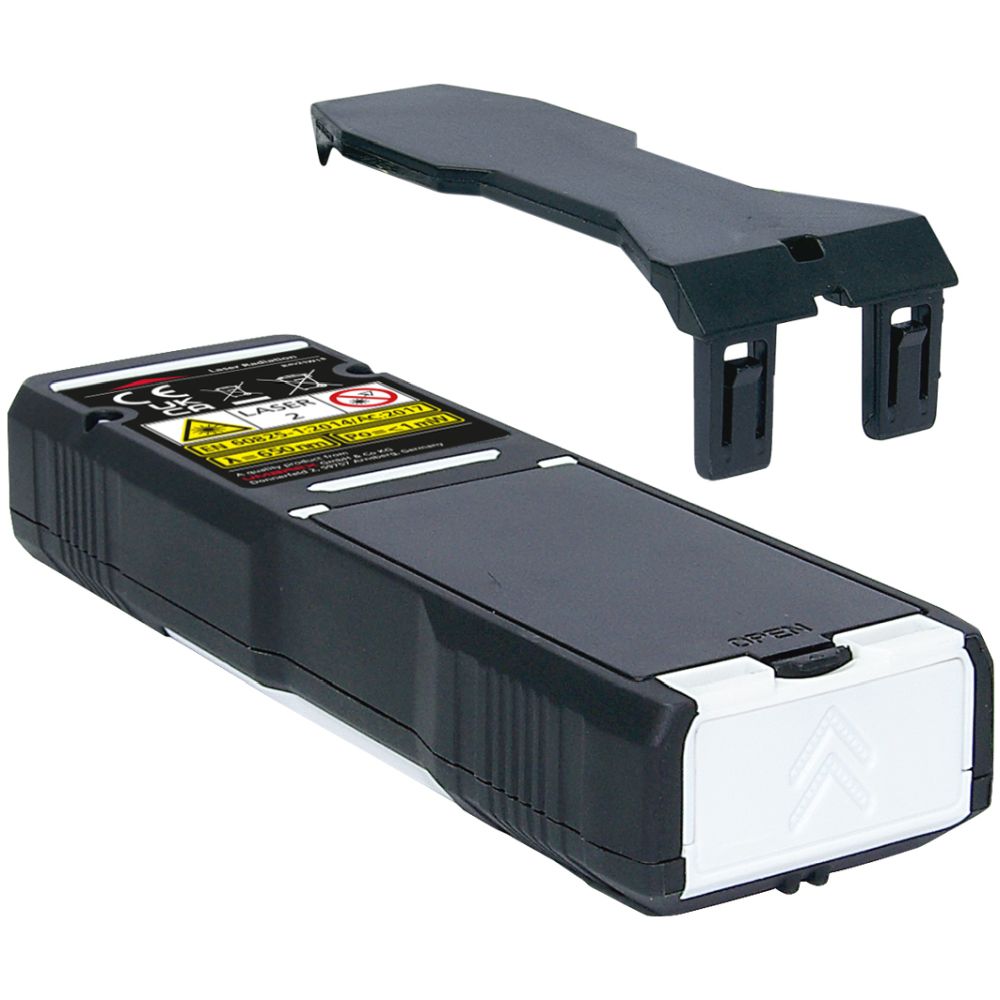

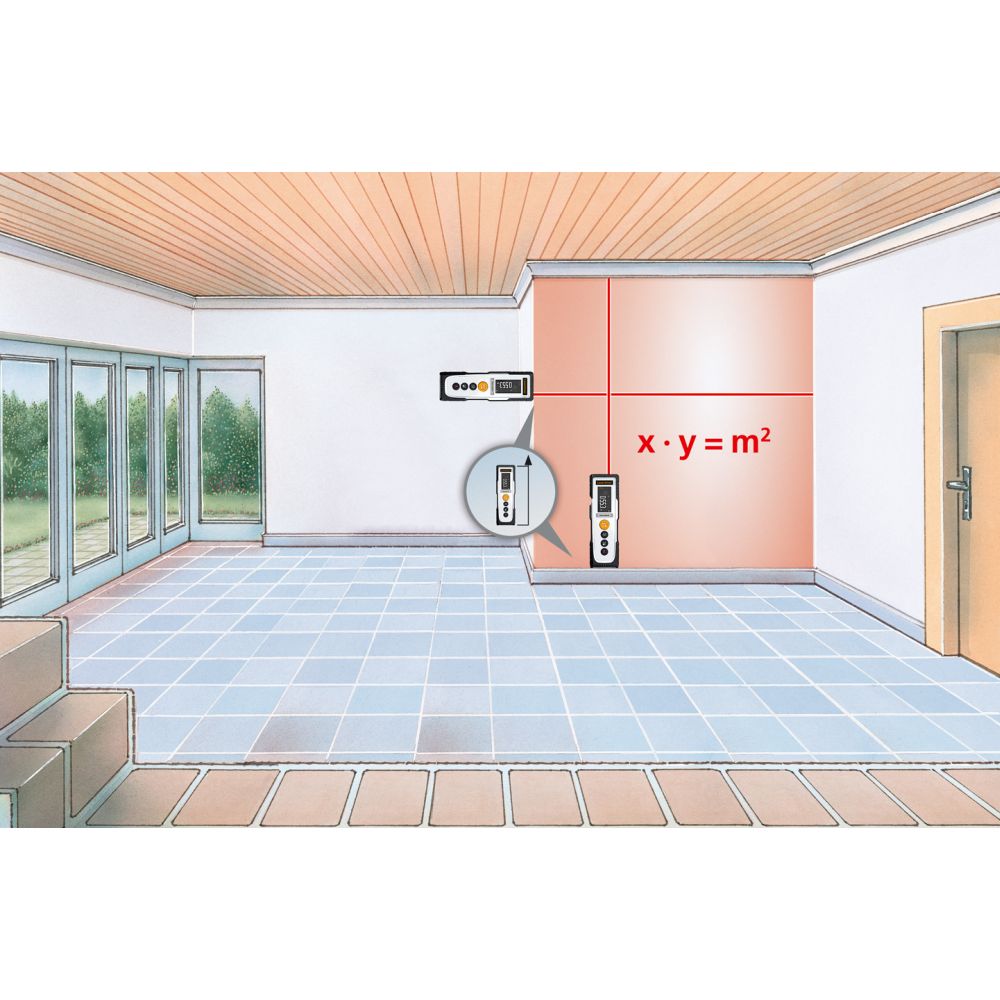

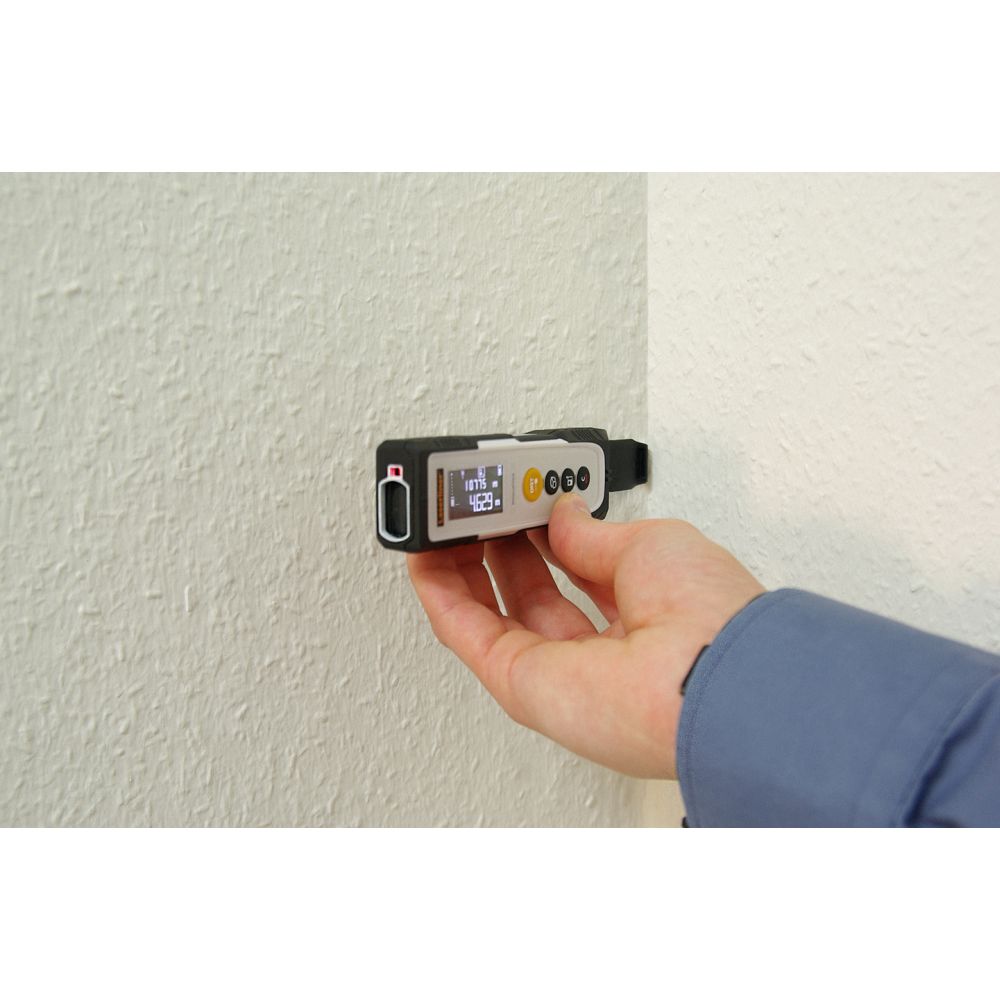

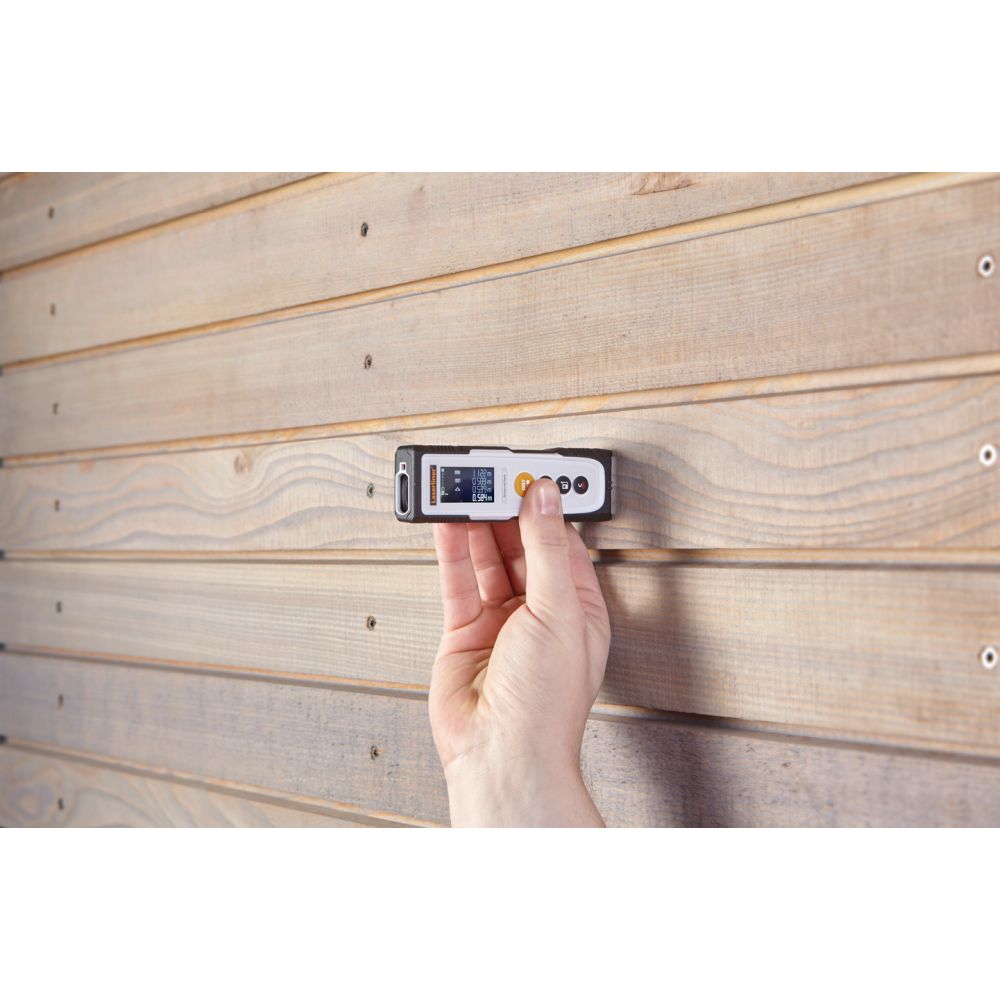

Description: This laser rangefinder is used to determine lengths, areas and volumes with pinpoint accuracy, ideal for measuring room sizes and calculating material quantities. The unit has three selectable housing reference points (front, rear and pin). Diagonal, horizontal and vertical distances can be determined with the display of the min/max difference value. The pin for insertion is suitable for measurements from the corner. The practical pocket clip and a compact design make it convenient to use.
Technical Data | 080.810A DistanceCheck |
---|---|
Title | Laser rangefinder |
Length/area/volume | ✅ |
Min/Max | ✅ |
Continuous measurement | ✅ |
Selectable housing reference point | ✅ |
Measurement Range (Inside)** | 0,05 m - 30 m |
Precision (Typical)* | ± 2 mm |
Laser Wavelength | 650 nm |
Laser Class | 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021) |

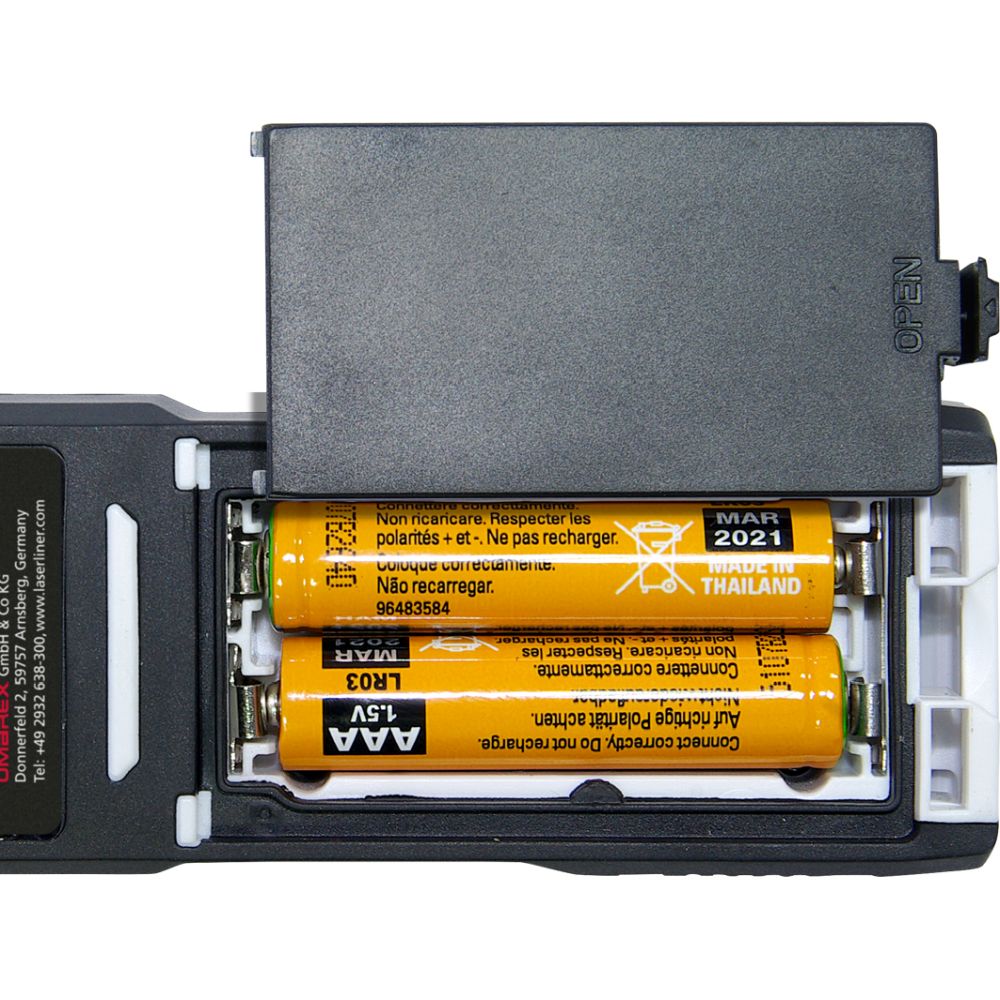

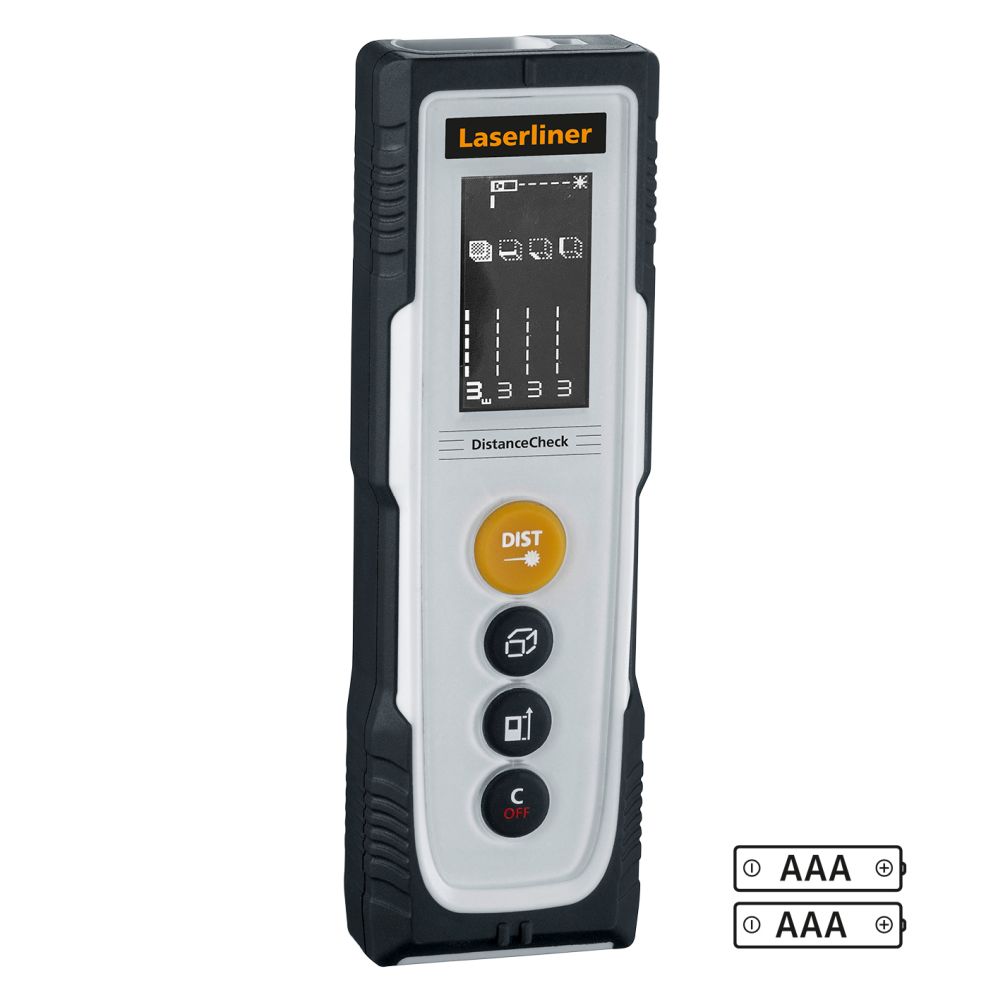

Power Supply | 2 x 1.5V LR03 (AAA) |
Temperature (Working Conditions) | 0°C … 40°C |
Scope of delivery:
Documentation:
Titel:
Laser rangefinder
Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
Art.No.: 080.810A, GTIN (EAN): 4021563694181
