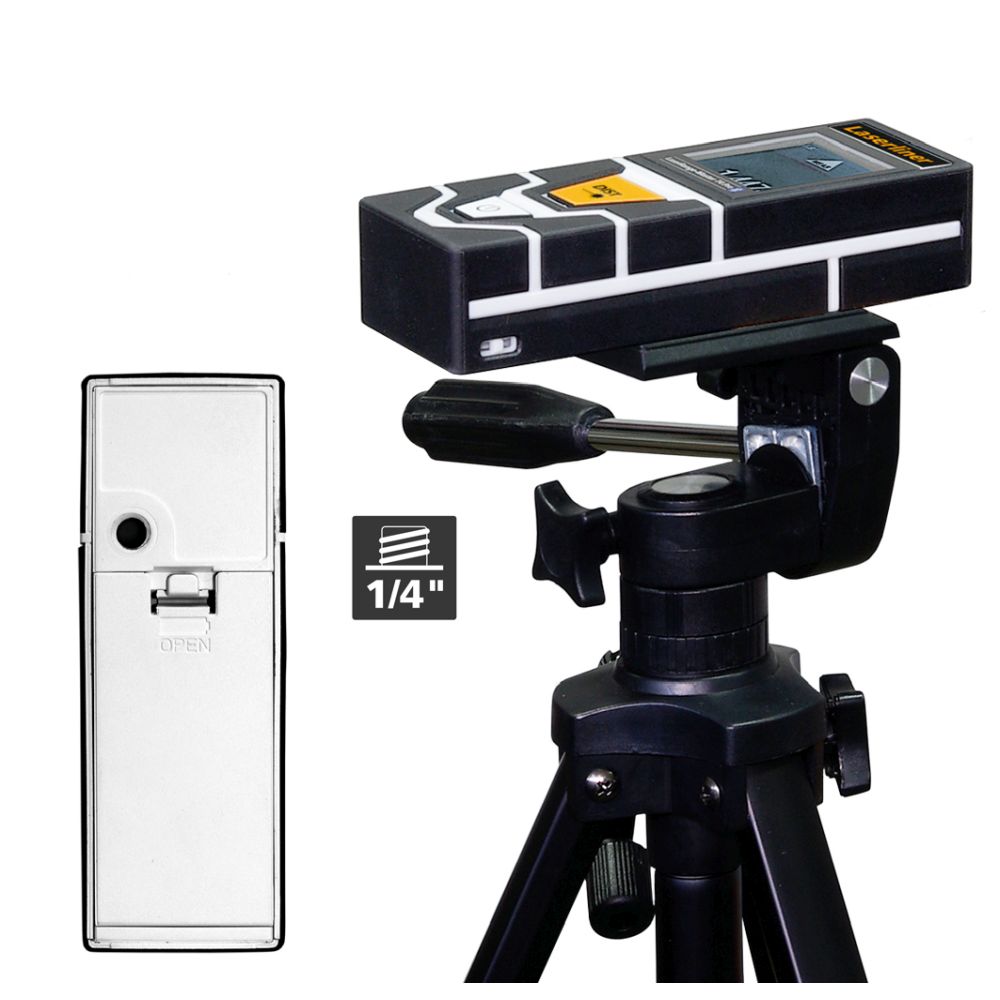

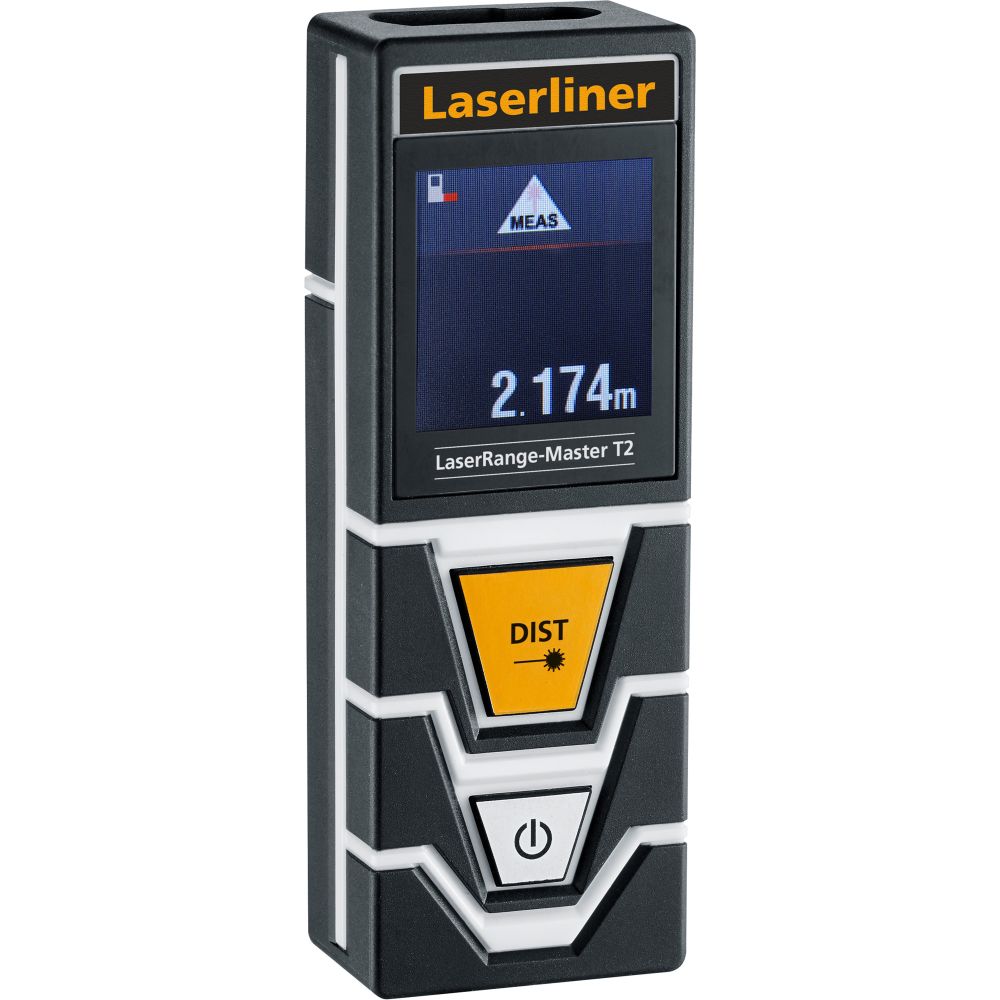

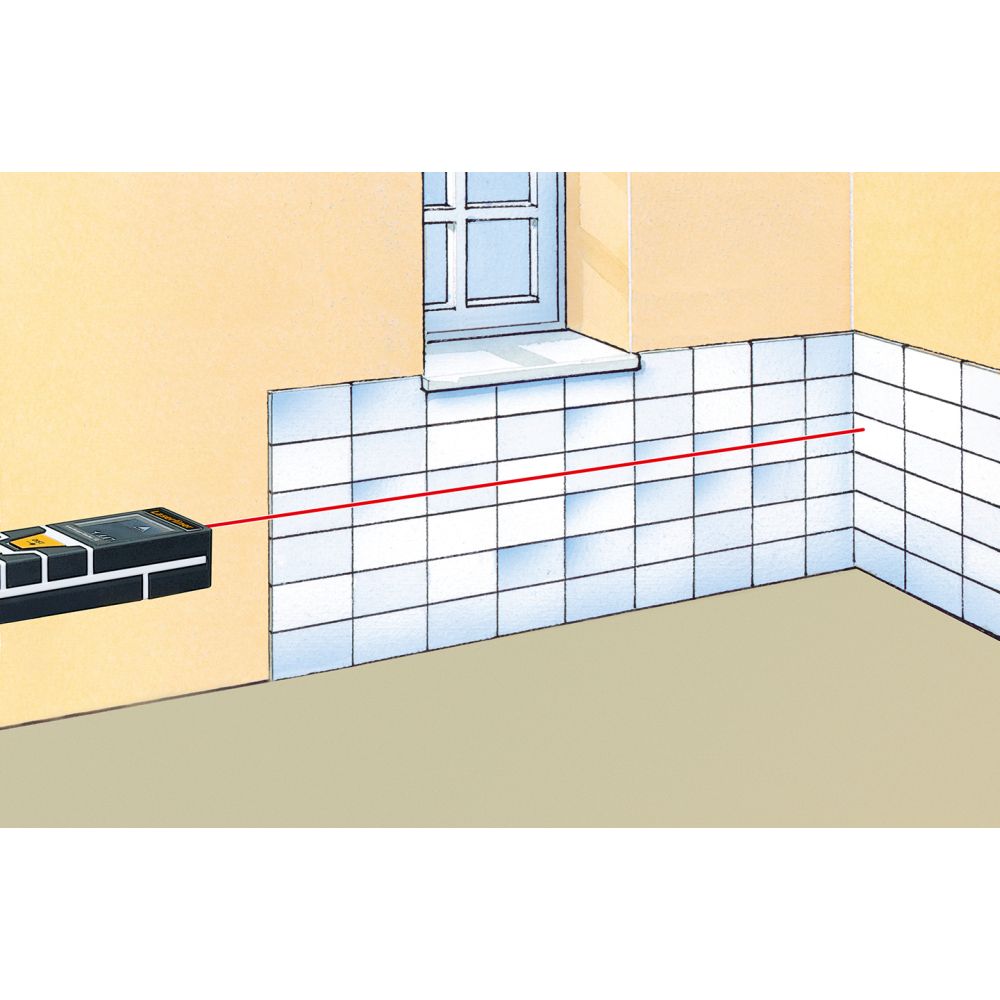

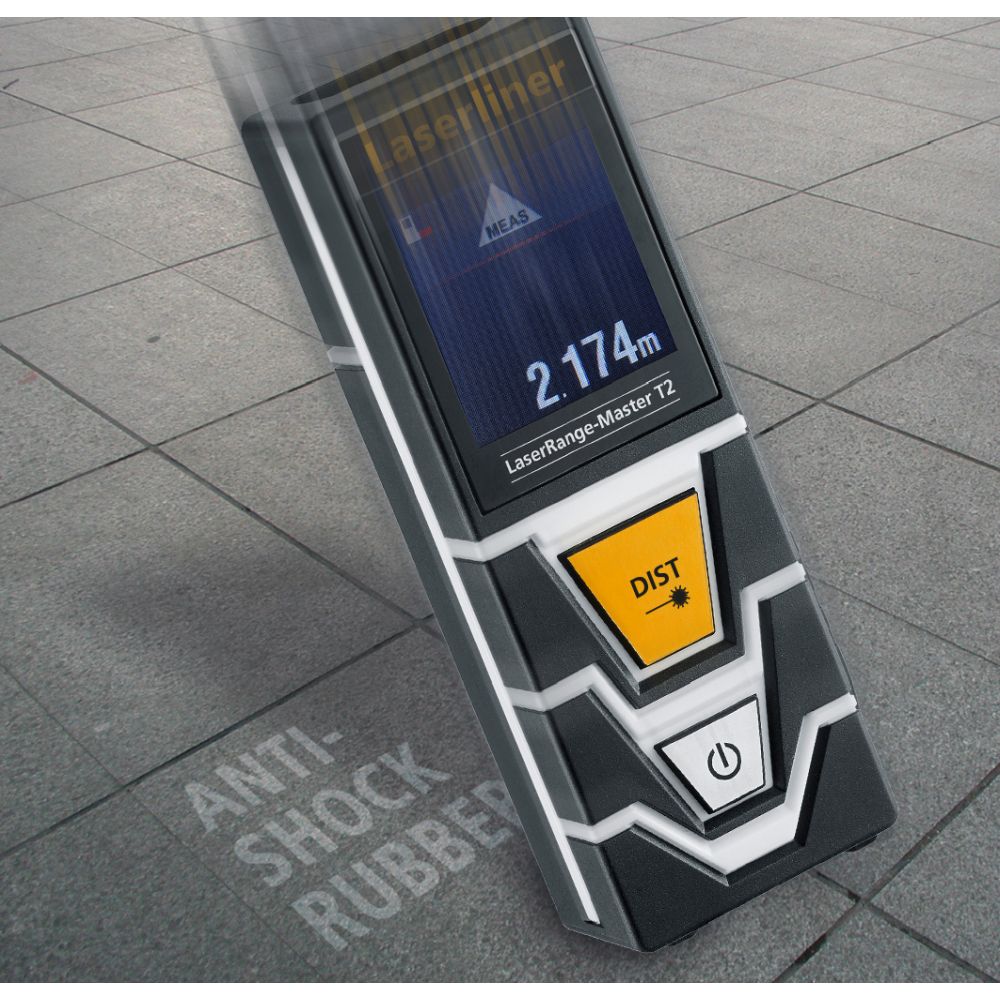

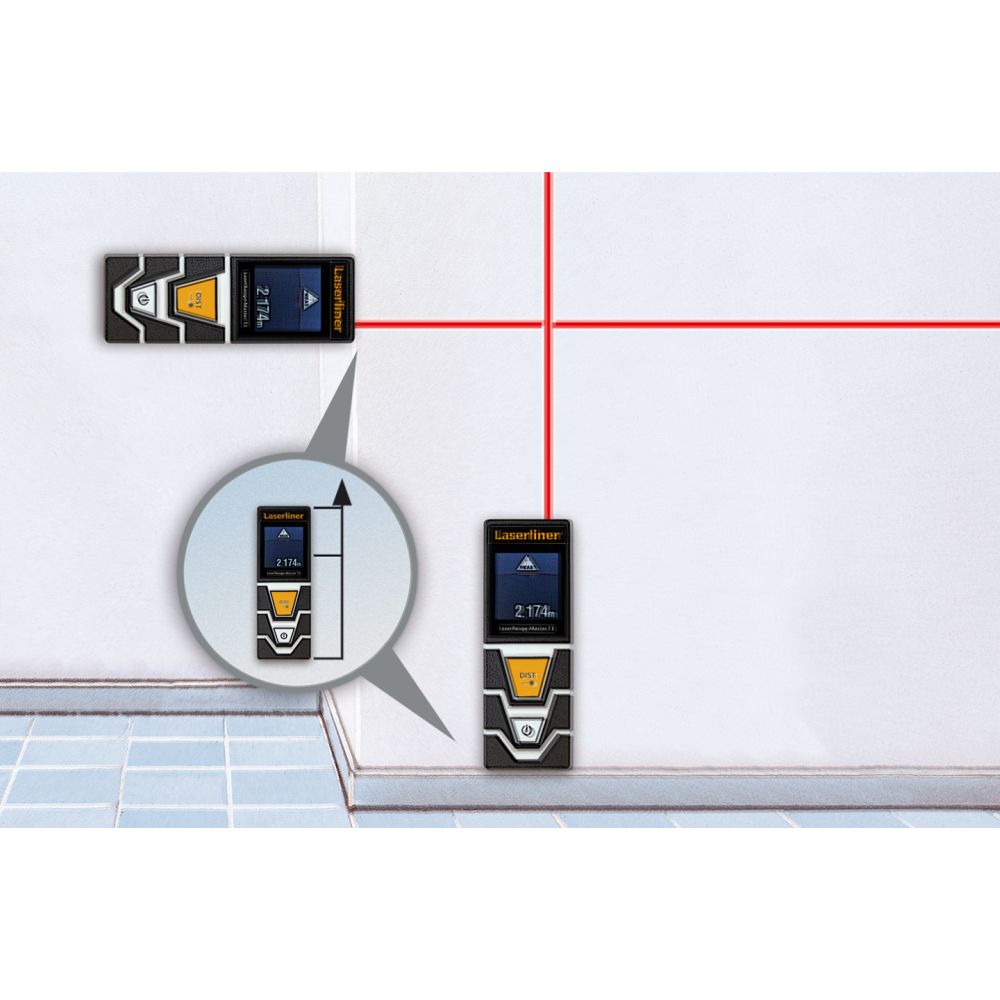

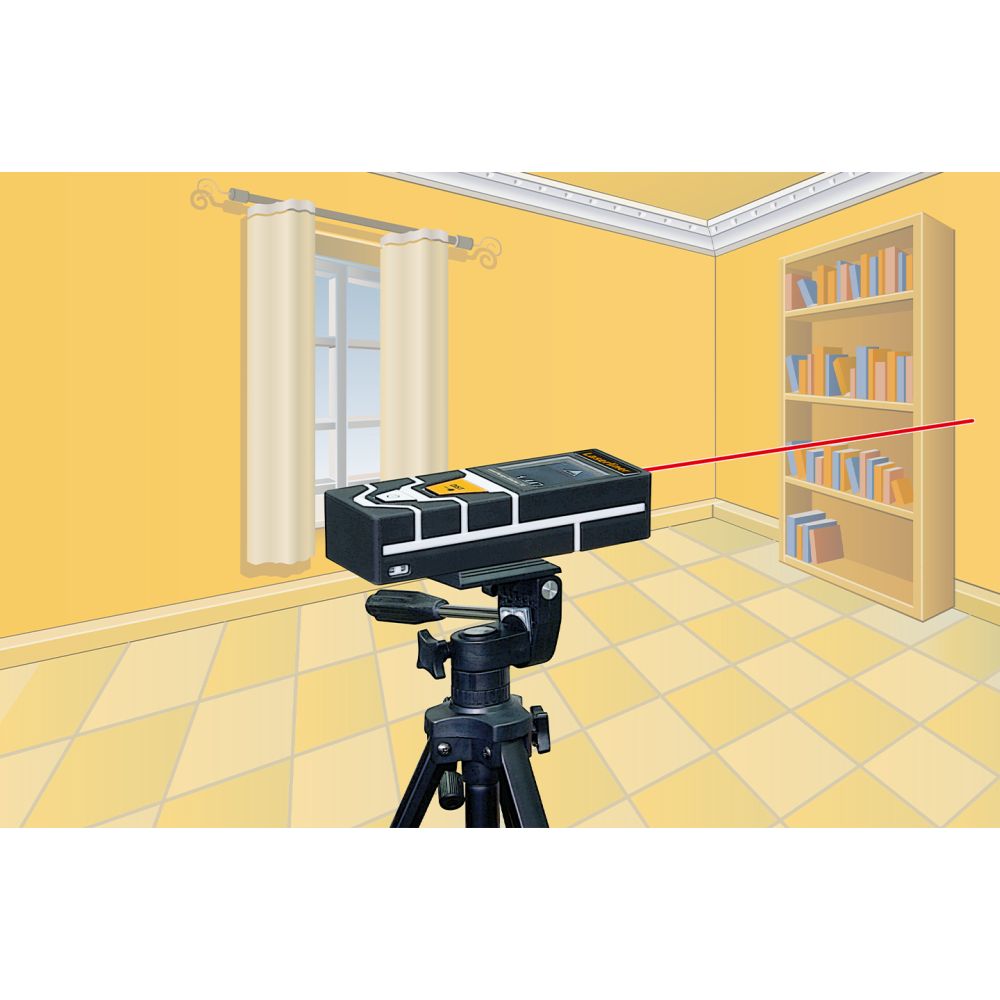

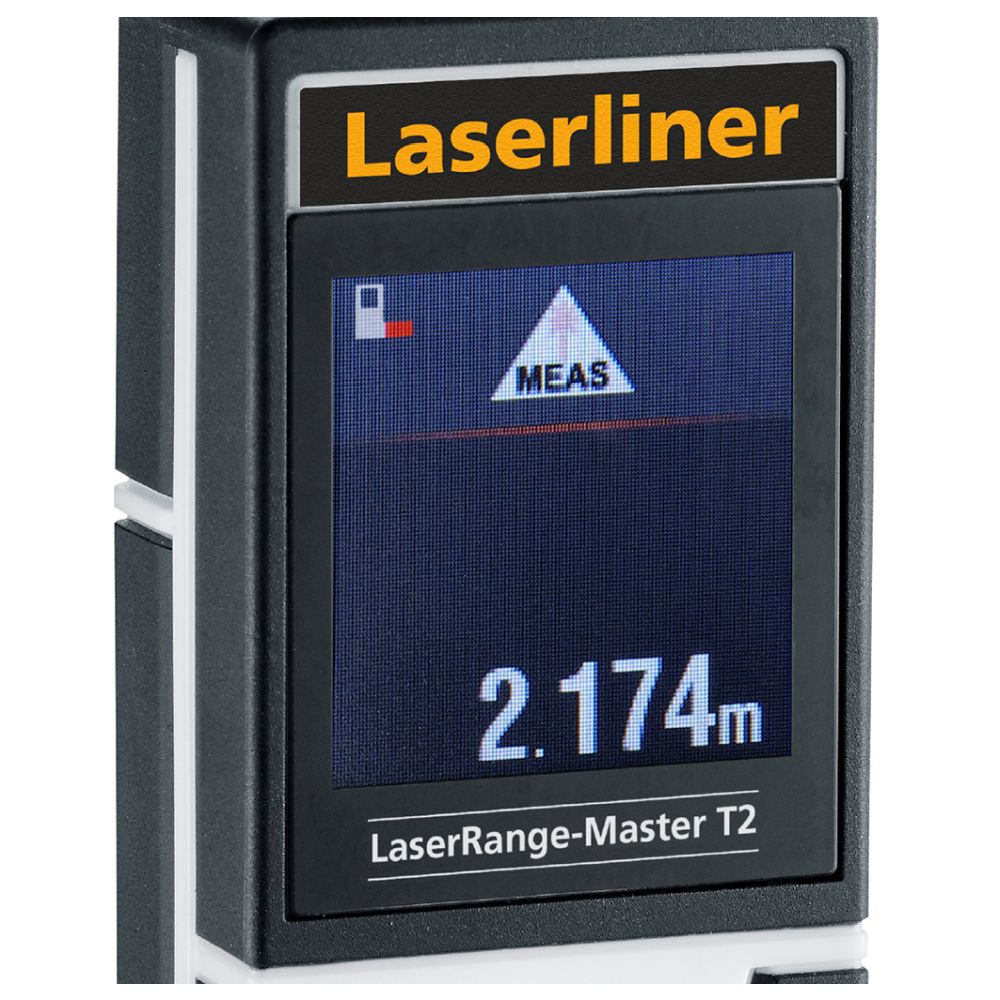

Description: This laser rangefinder provides point-precise determination of lengths. The device has a continuous measuring function, a compact design and three switchable measuring points (front, rear, tripod). The illuminated, three-line colour LC display and ergonomic housing with a rubber casing make the device easy to use.
| Length | ✅ |
| Continuous measurement | ✅ |
| Selectable housing reference point | ✅ |
| Precision (Typical)* | ± 2 mm |
| Measurement Range (Inside)** | 0,2 m - 30 m |
| Laser Wavelength | 650 nm |
| Laser Class | 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021) |
| Units | m ft inch _' _'' |
| Power Supply | 2 x 1.5V LR03 (AAA) |
| Operating Conditions | 0°C … 40°C, Luftfeuchtigkeit max. 20 … 85% rH, nicht kondensierend, Arbeitshöhe max. 2000 m über NN (Normalnull) |
| Dimensions (W x H x D) | 32 mm x 100 mm x 23 mm x (ohne Adapter) |
| Weight | 82 g (inkl. Batterien) |

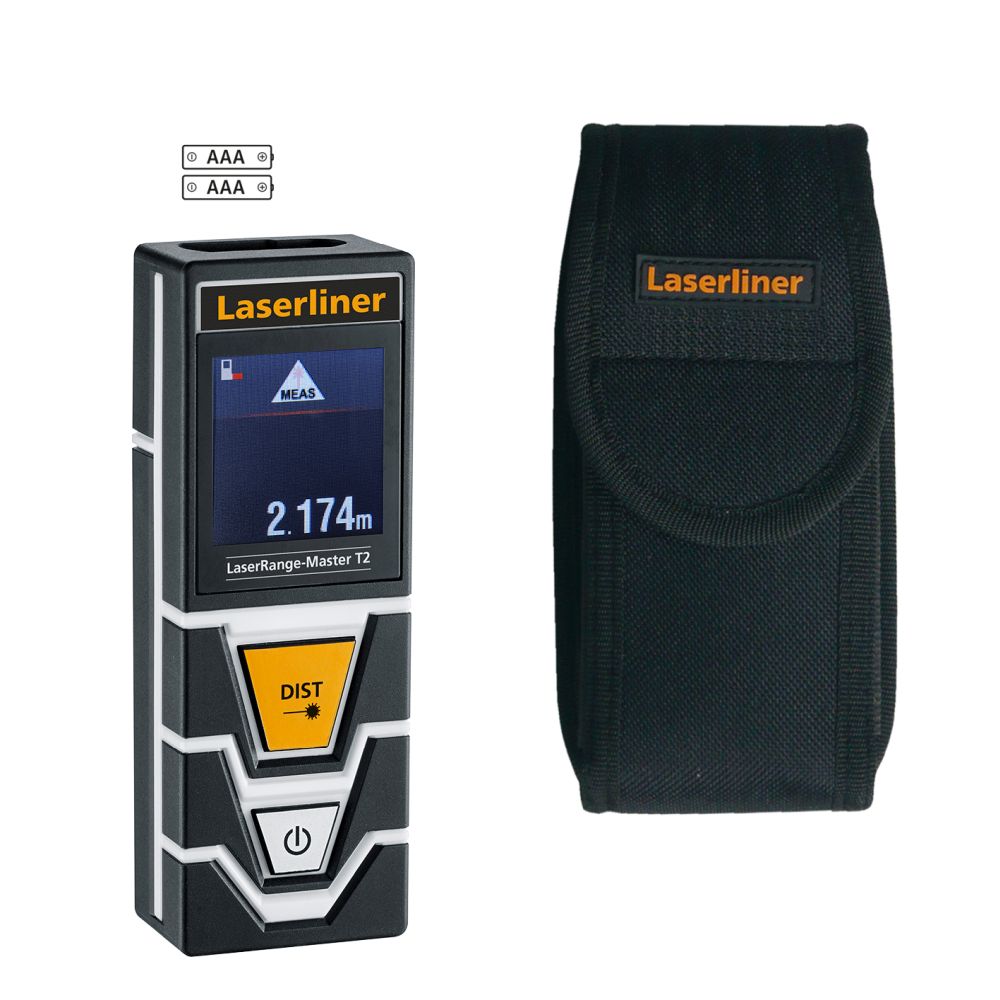

Scope of delivery:
Documentation:
Product information sheetTitel:
Laser rangefinder
Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
OrangeLine
Art.No.: 080.820A, GTIN (EAN): 4021563701933
