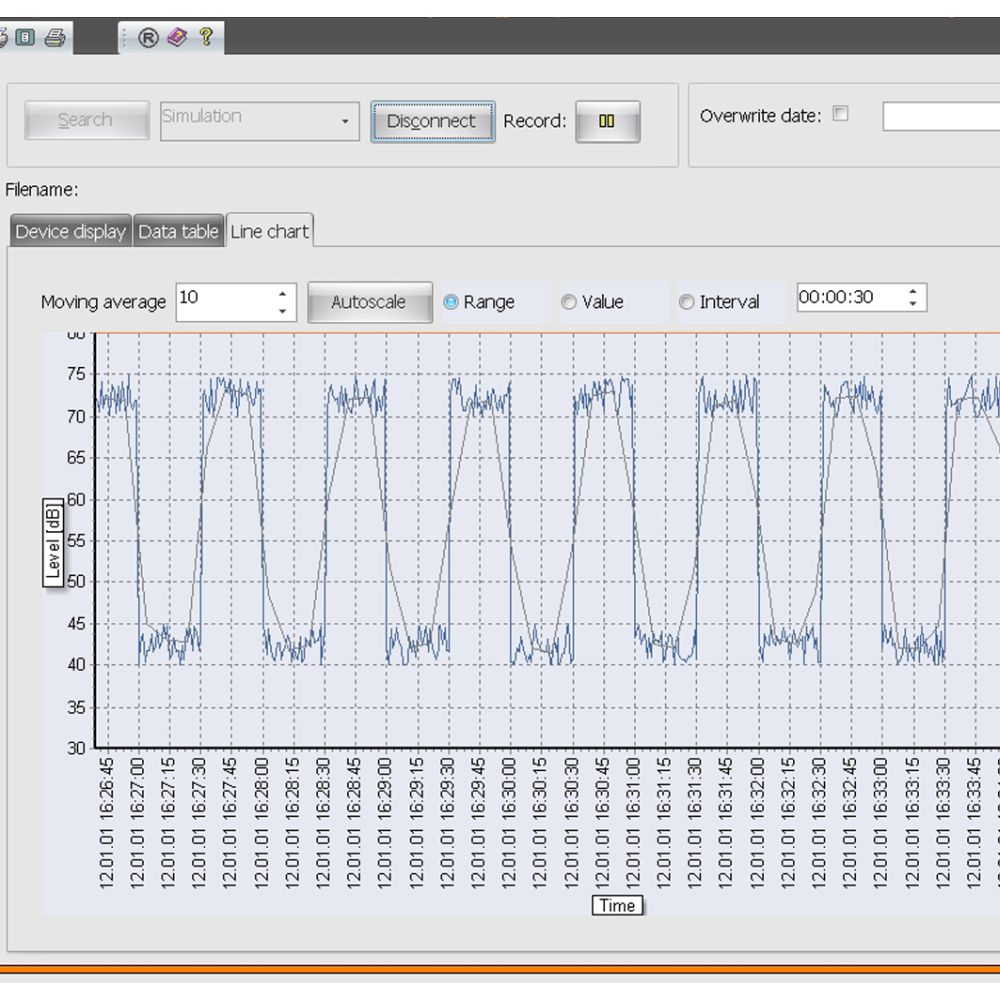

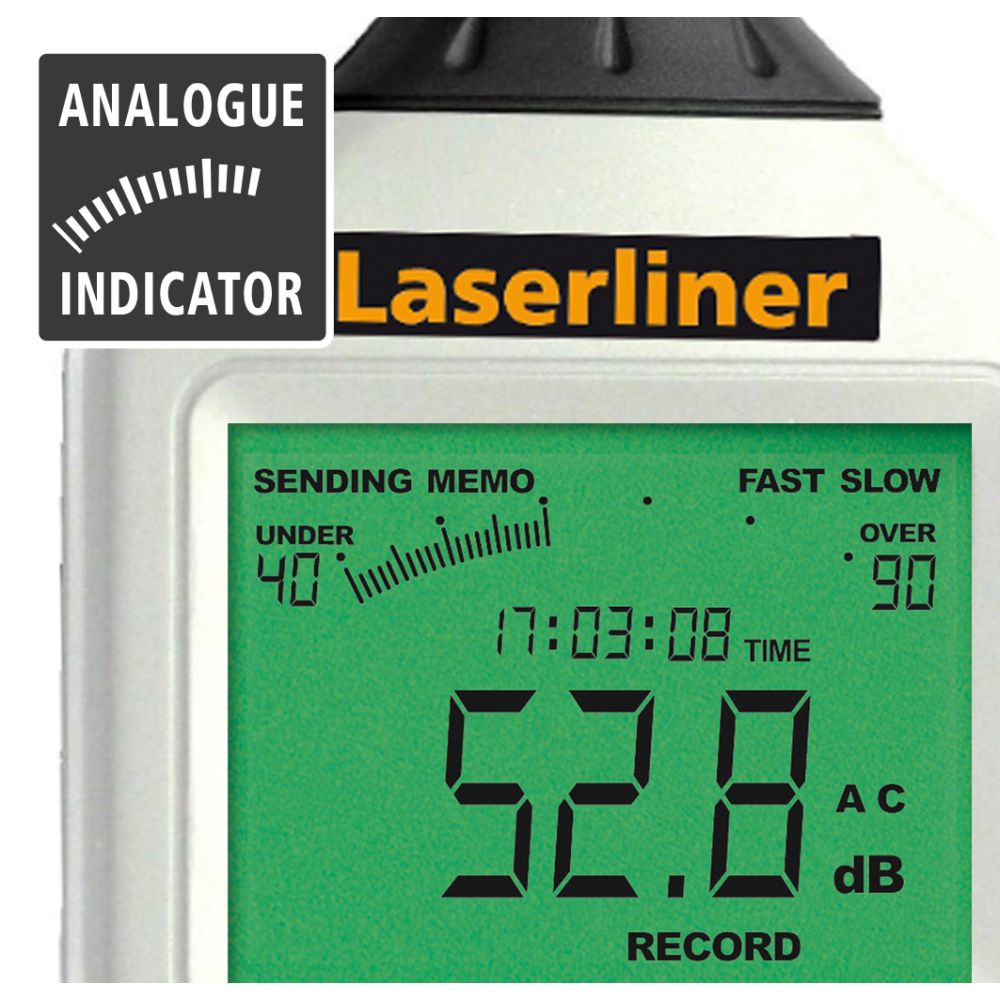

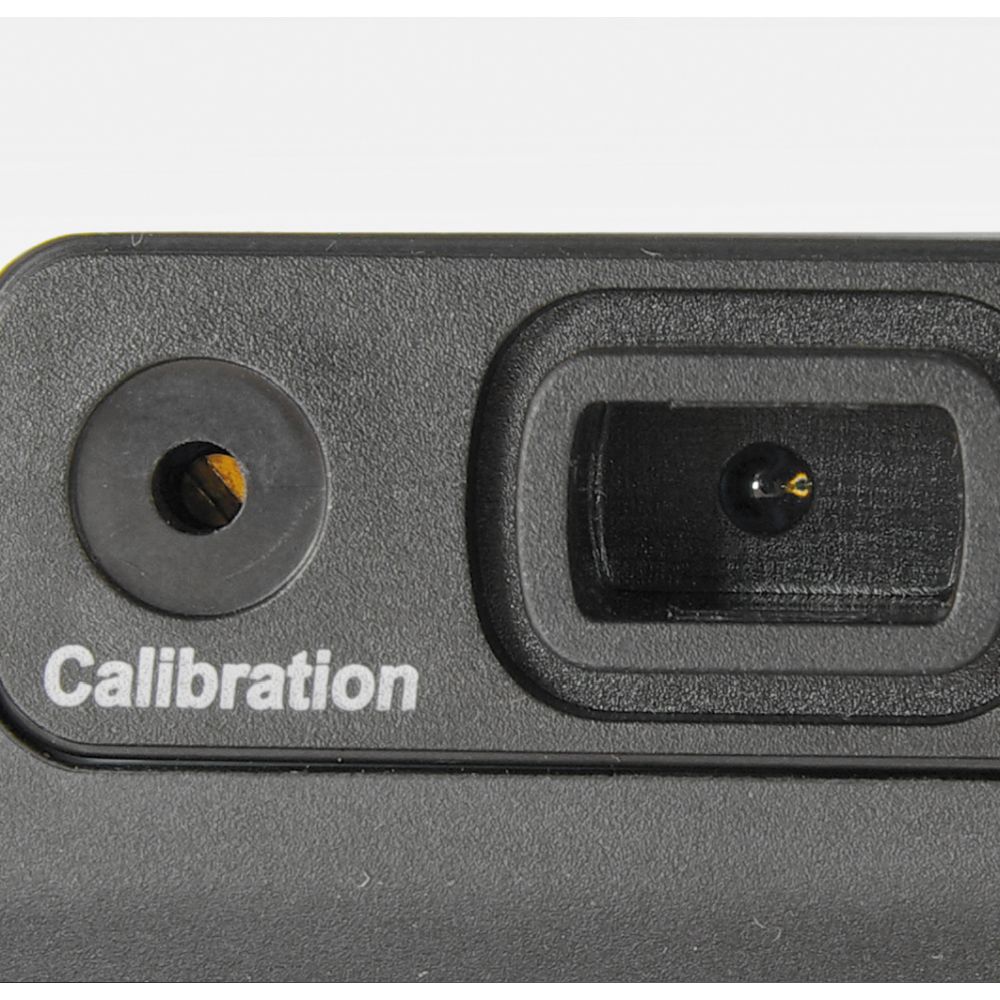

Description: This precision noise level measuring instrument uses frequency weighting filters according to dB (A) and dB (C) standard curves. A choice of two time weighting factors (fast/slow) allows optimum adaptation to noise dynamics The selectable analogue indicator provides a visual assessment of the test area. The measurement is taken with a long-term recording function with 16,000 storage points or real-time logging on a PC using the supplied software. The device has analogue DC and AC outputs and an illuminated display. Calibration and adjustment is by means of a standard 94 dB/1 kHz noise level calibrator.
| Technical Data | 082.070A SoundTest-Master |
|---|---|
| Title | Noise level measuring instrument |
| Sound level dB(A)/dB(C) | ✅ |
| Time weighting fast/slow | ✅ |
| Real time display | ✅ |
| Time stamp | ✅ |
| Data transfer | ✅ |
| Long-term storage | ✅ |
| Sensor Type | Microphone: Electret condenser |
| Measured Variable | Sound pressure level |
| Ports | AC voltage output: 0.7 Vrms at full deflection, approx. 600 Ω output impedance DC voltage output: 10 mV/dB, approx. 100 Ω output impedance Power supply DC 9V ≥ 500 mA (ripple < 100 mV) |
| Measurement Range Sound Pressure Level | 30 dB … 130 dB (automatic) 30 dB … 80 dB (manual) 40 dB … 90 dB (manual) 50 dB … 100 dB (manual) 60 dB … 110 dB (manual) 70 dB … 120 dB (manual) 80 dB … 130 dB (manual) |
| Display Update | Digital: 2 measurements/s Analogue: 20 measurements/s |
| Memory | 16000 measurements |
| Port | Optoinsulated RS232 |
| Power Supply | 6 x 1.5V LR03 (AAA) |
| Temperature (Working Conditions) | 0°C … 40°C |

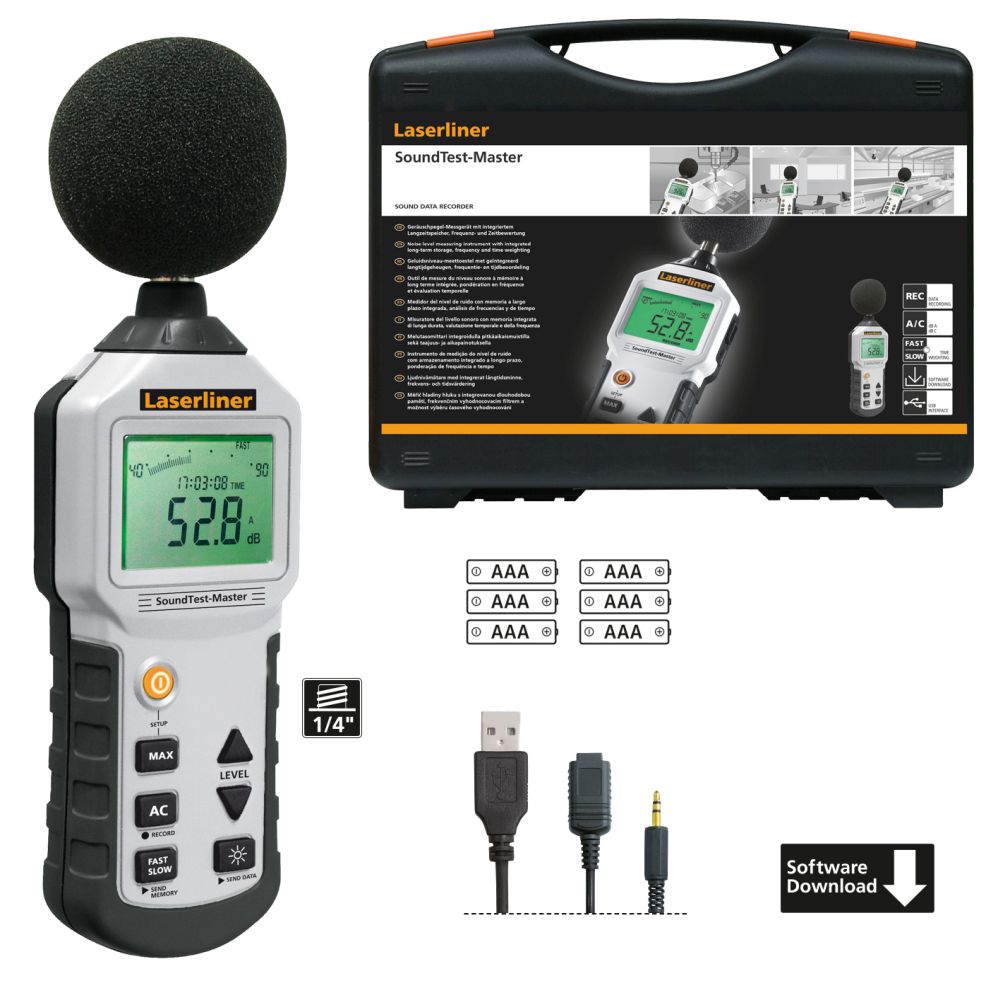

Scope of delivery:
Documentation:
Product information sheetTitel:
Noise level measuring instrument
Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
BlackLine
Art.No.: 082.070A, GTIN (EAN): 4021563676330
