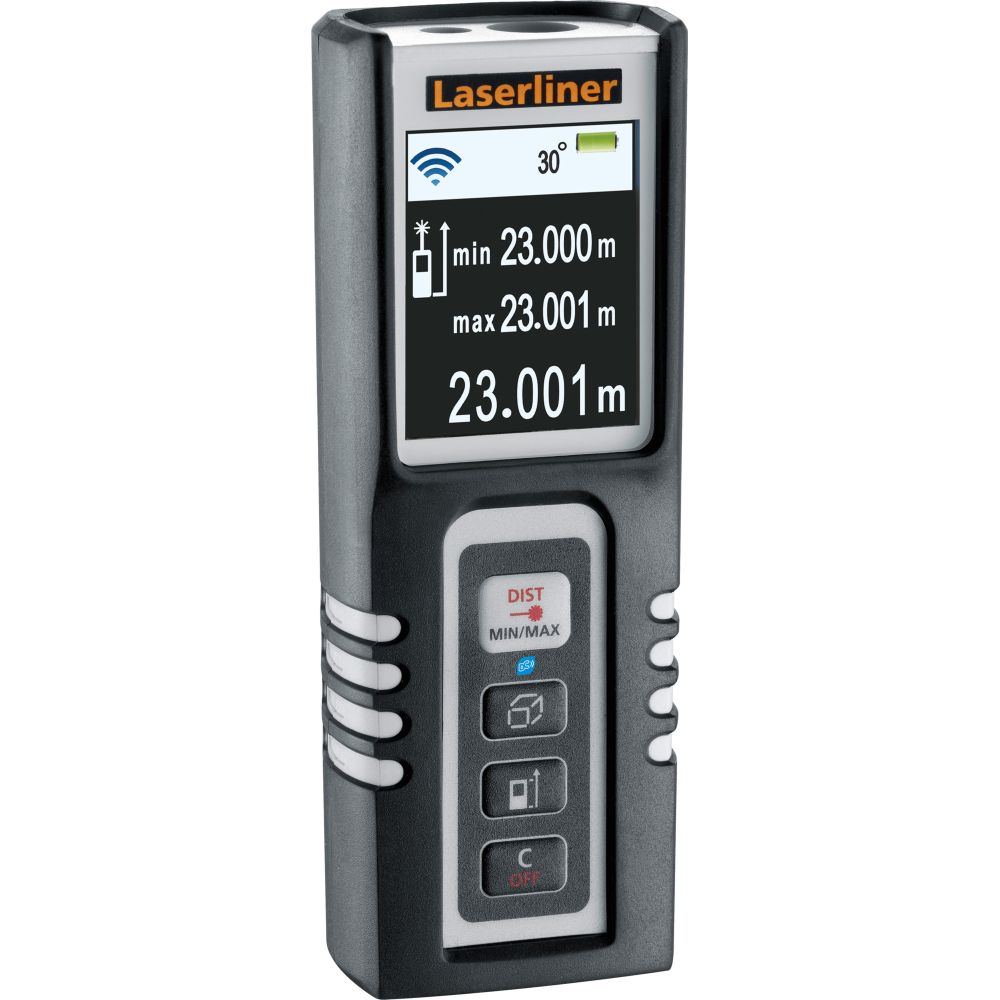

DistanceMaster Compact Pro

Laser distance meter – with Digital Connection interface and angle measurement

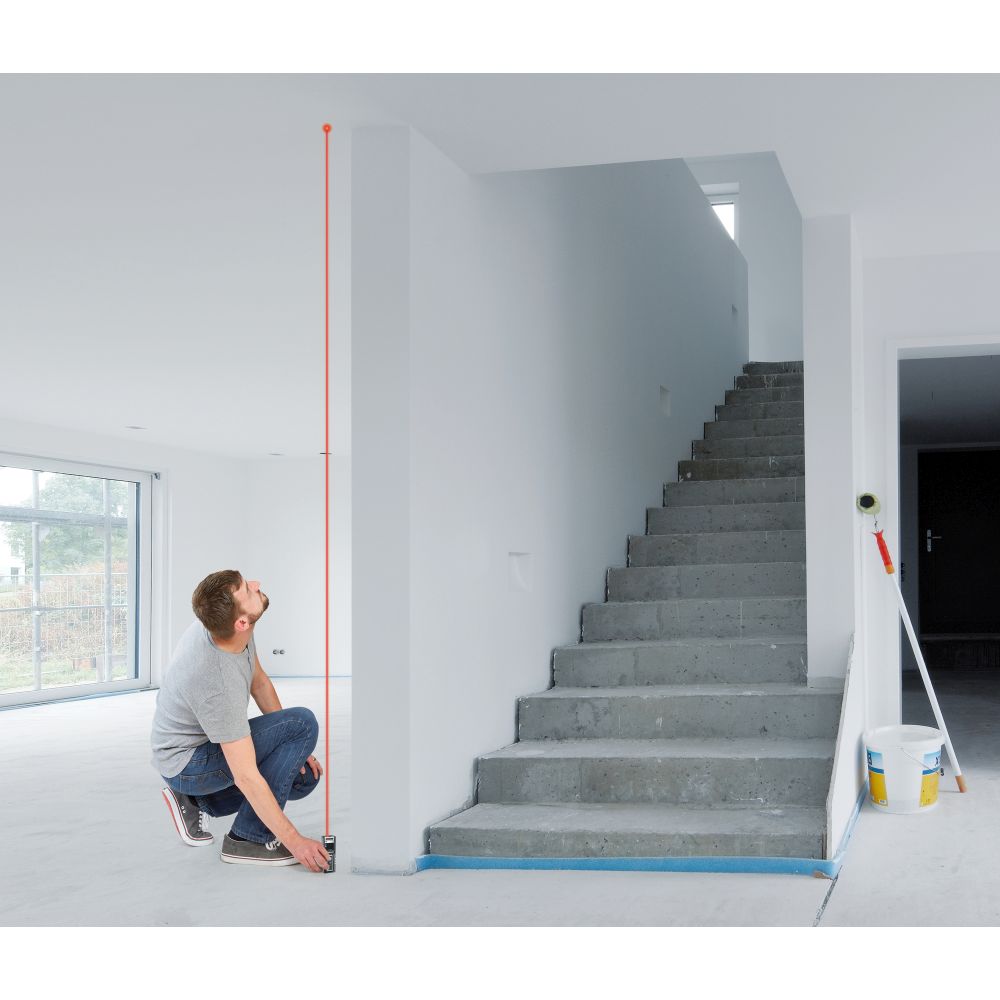

Description: This point-precise laser rangefinder is ideal for acquiring lengths, areas and volumes, for example when determining room sizes and calculating material quantities. Horizontal and vertical distances can be determined with the 360° slope sensor. The device has switchable measuring points, an illuminated, three-line display and an ergonomic housing with rubberised casing. The measured data can easily be transferred to a smartphone using the Digital Connection interface.

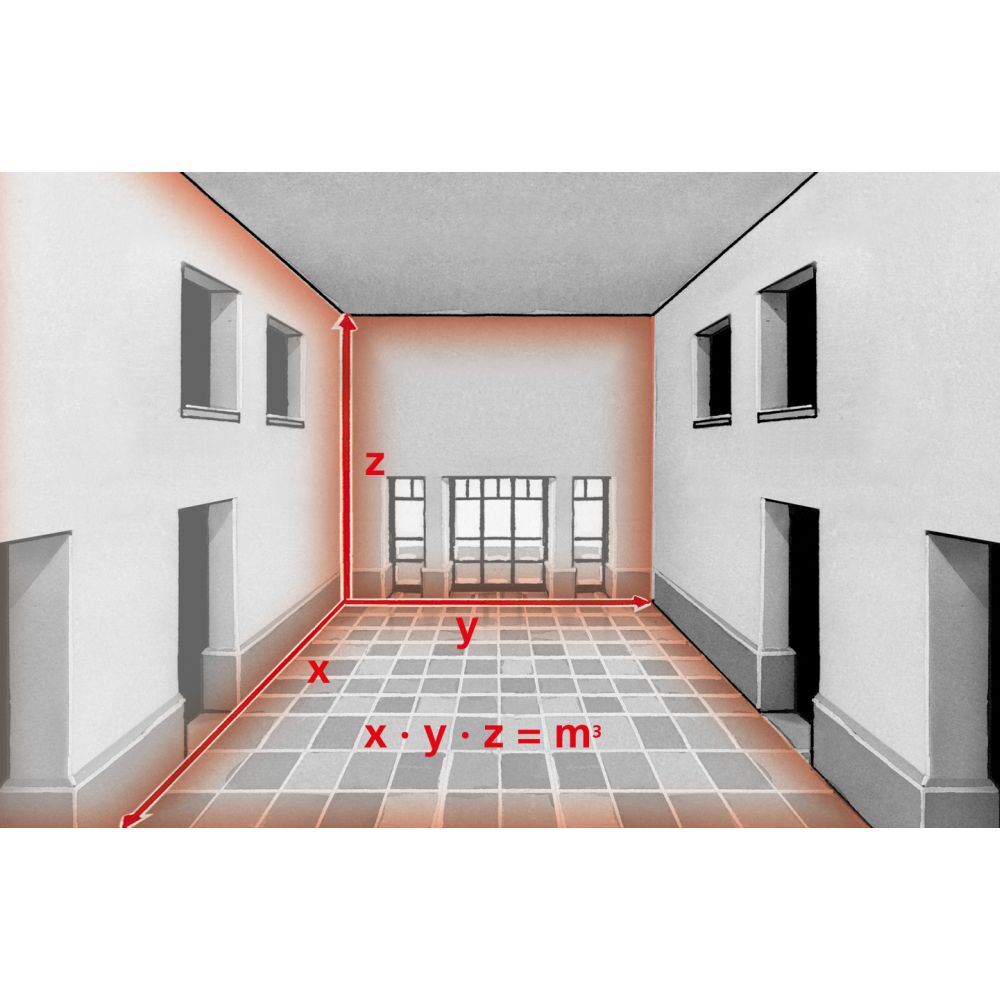

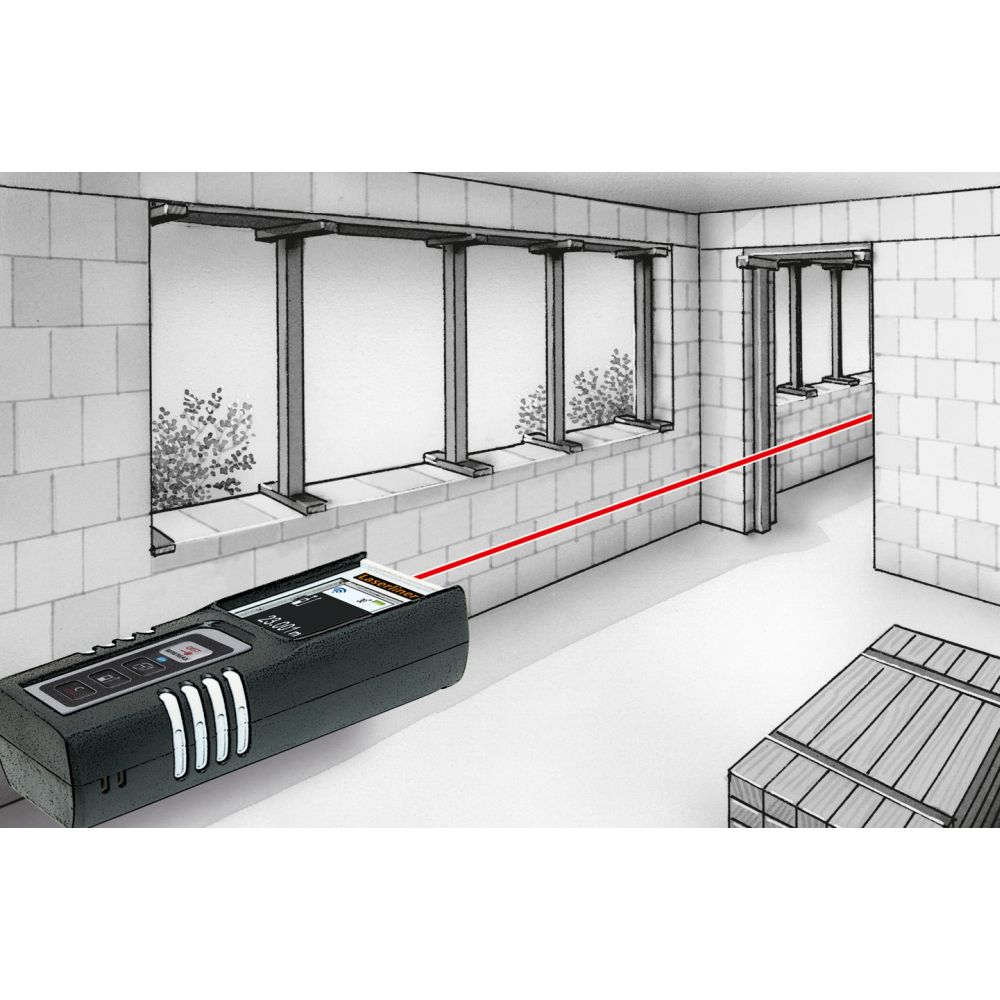

  • Point-precise laser measurement for determining lengths, areas and volumes
  • Practical determination of diagonals, horizontals and verticals
  • Determination of horizontal and vertical distance with 360° slope sensor

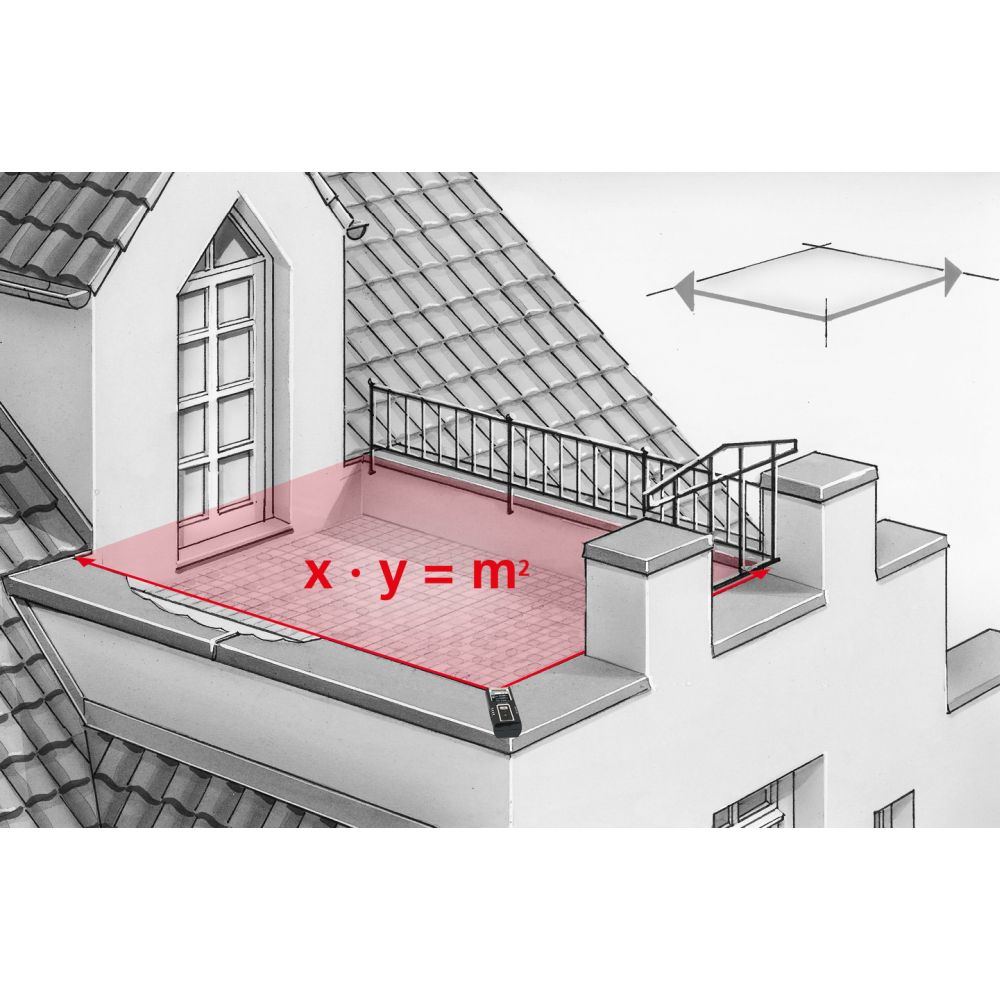

  • Ideal for recording room sizes and calculating material quantities
  • Measuring levels with practical switching function: front and rear
  • Simple transfer of measured data through Digital Connection interface to mobile phone

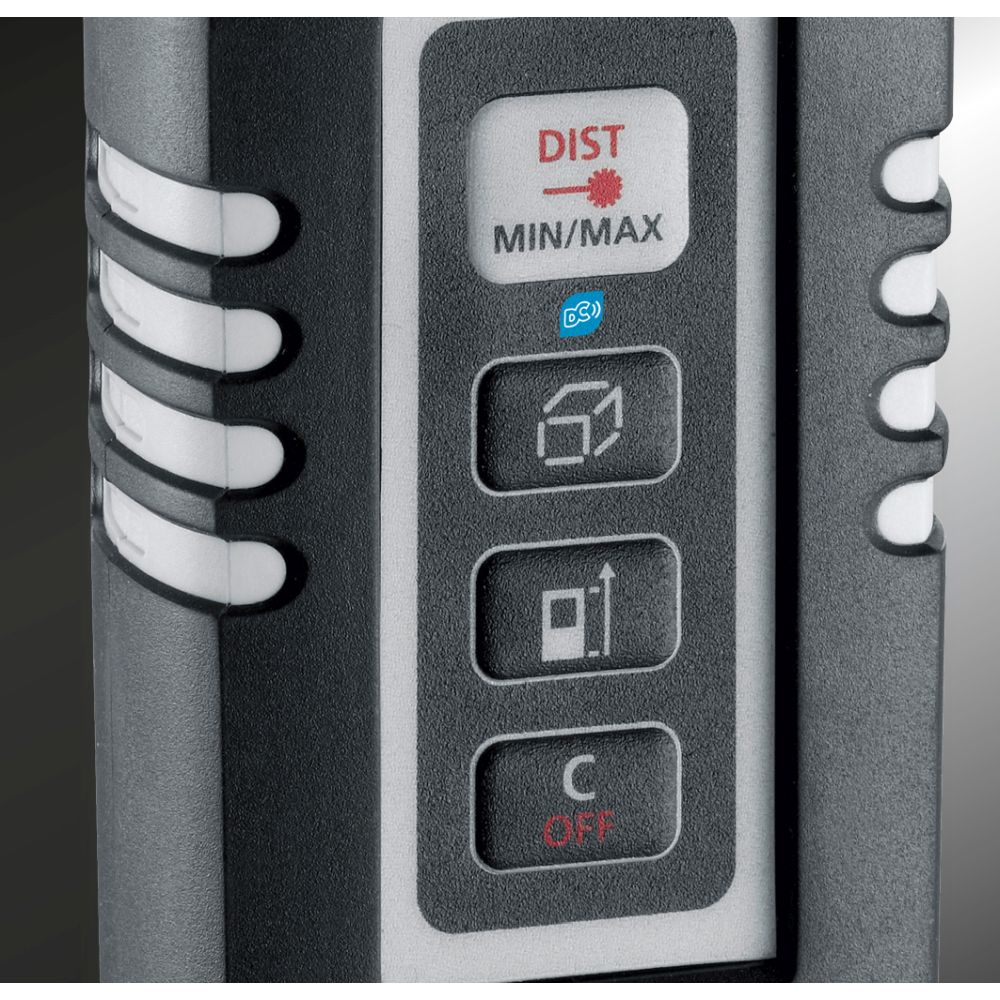

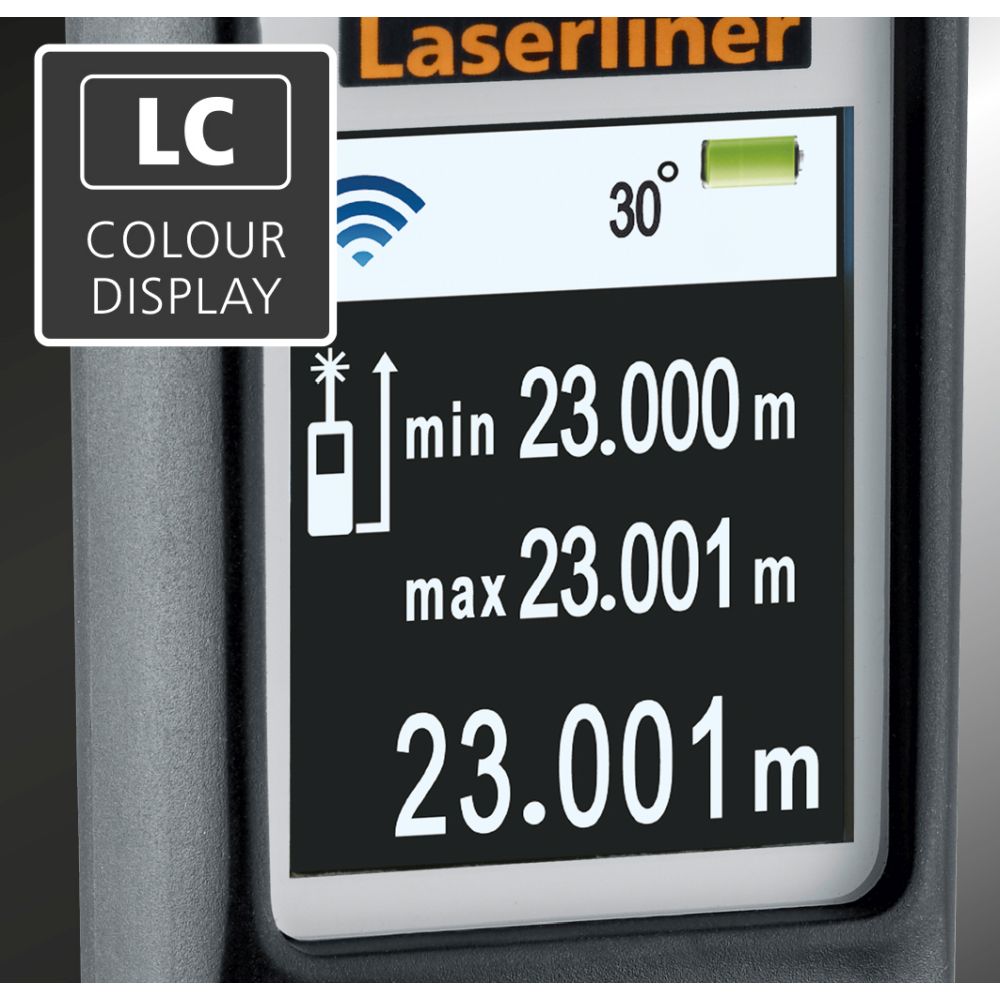

  • Easy-to-read display

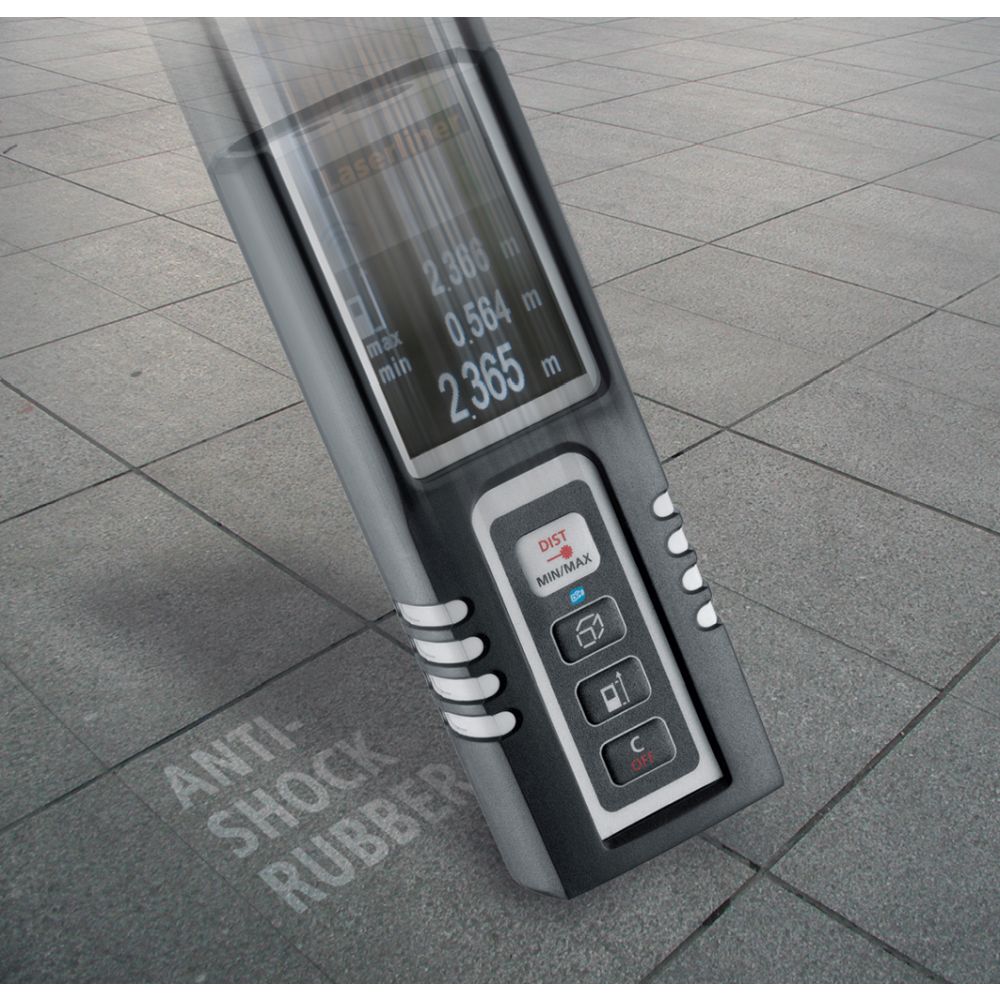

  • Sturdy, ergonomically designed, rubberised casing

  • Attribute080.937A DistanceMaster Compact Pro
    TitleLaser rangefinder
    Length/area/volume
    Min/Max
    Continuous measurement
    Indirect determination of height (Pythagoras)
    Slope display
    Selectable housing reference point
    Measurement range (inside)**0,1 m - 50 m
    Precision (typical)*± 2 mm
    Accuracy angle measurement0,1°
    Laser wavelength650 nm
    Laser class2 / < 1 mW (EN 60825-1:2014/AC:2017)
    Memory10 storage locations
    PortDigital Connection
    Power source2 x 1.5V LR03 (AAA)
    Temperature (working conditions)-10°C … 40°C

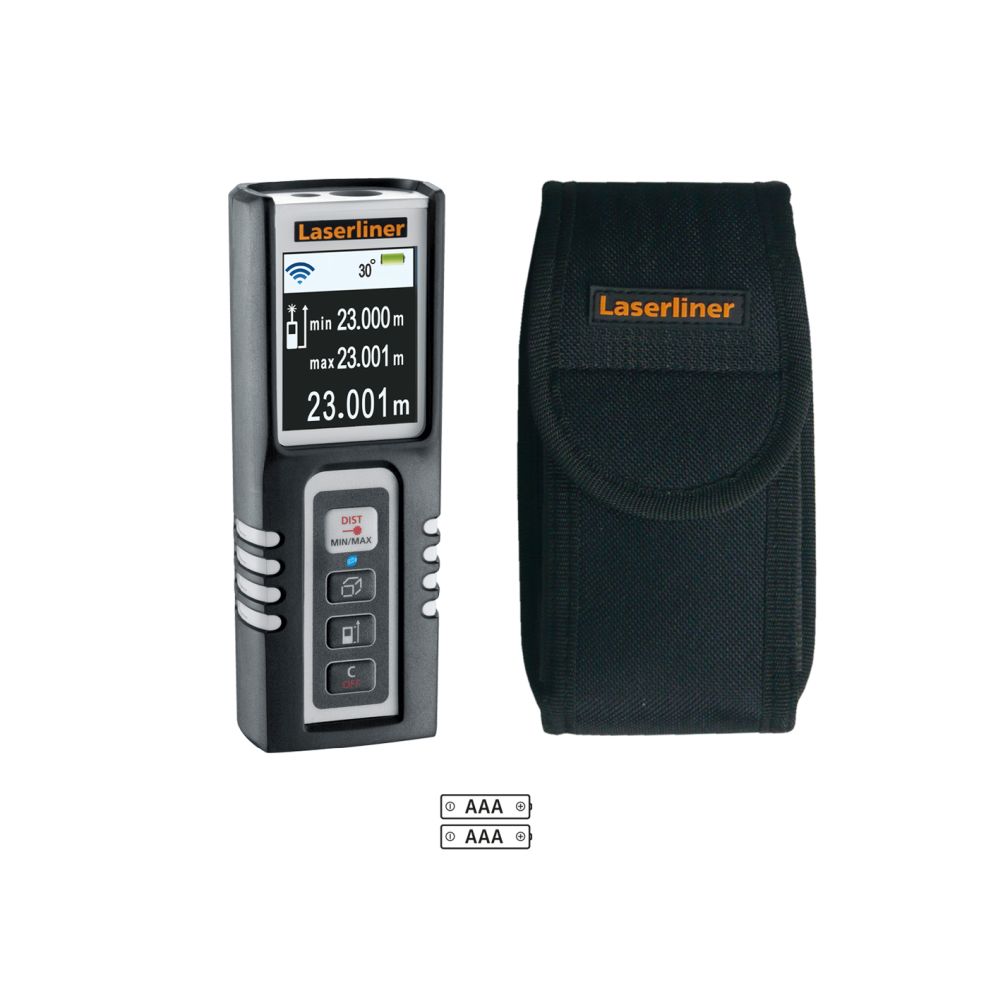

    Scope of delivery:
  • DistanceMaster Compact Pro
  • batteries
  • softbag


  • Documentation:

    Titel:
    Laser rangefinder

    Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
    BlackLine

    Art.No.: 080.937A, GTIN (EAN): 4021563692903
