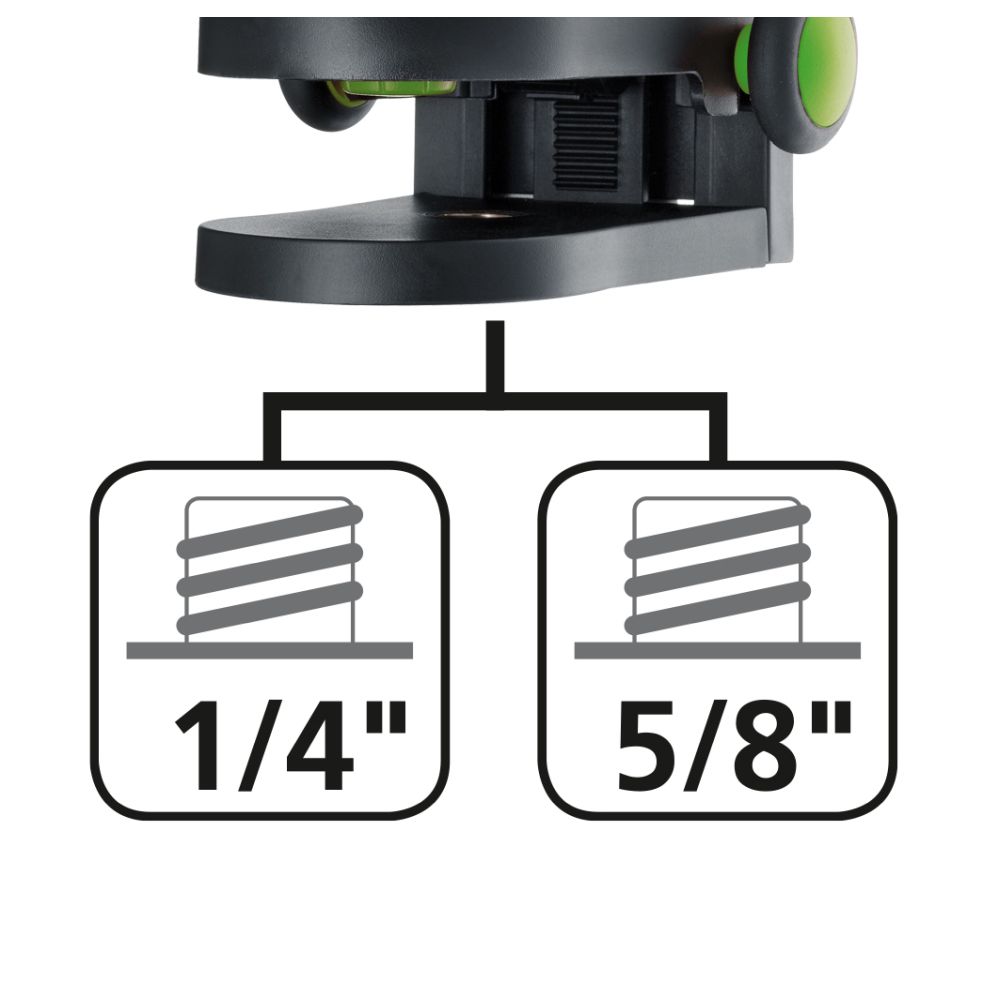

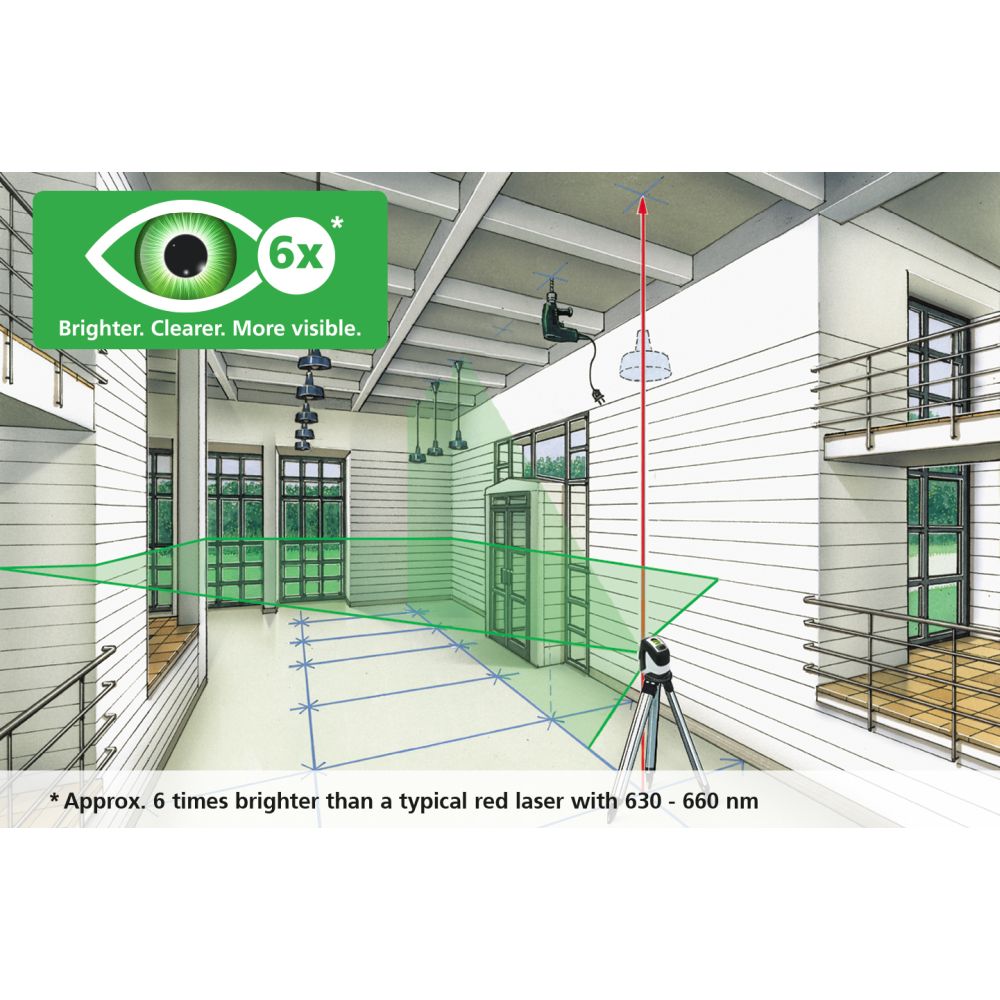

Description: This automatic cross-line laser is ideal for aligning horizontals, verticals and inclines. The green laser technology provides outstanding visibility. Additional plumb laser and reference beam for synchronous working on floor and ceiling. Optical signals warn the user when outside the levelling range. For long distances, the device has a built-in hand receiver mode. With the height-adjustable console, the laser can be fixed on a tripod, directly on the wall or on metallic surfaces. The pendulum locking is used for safe transport.
Horizontal/vertical levelling | ✅ |
Manual slope function | ✅ |

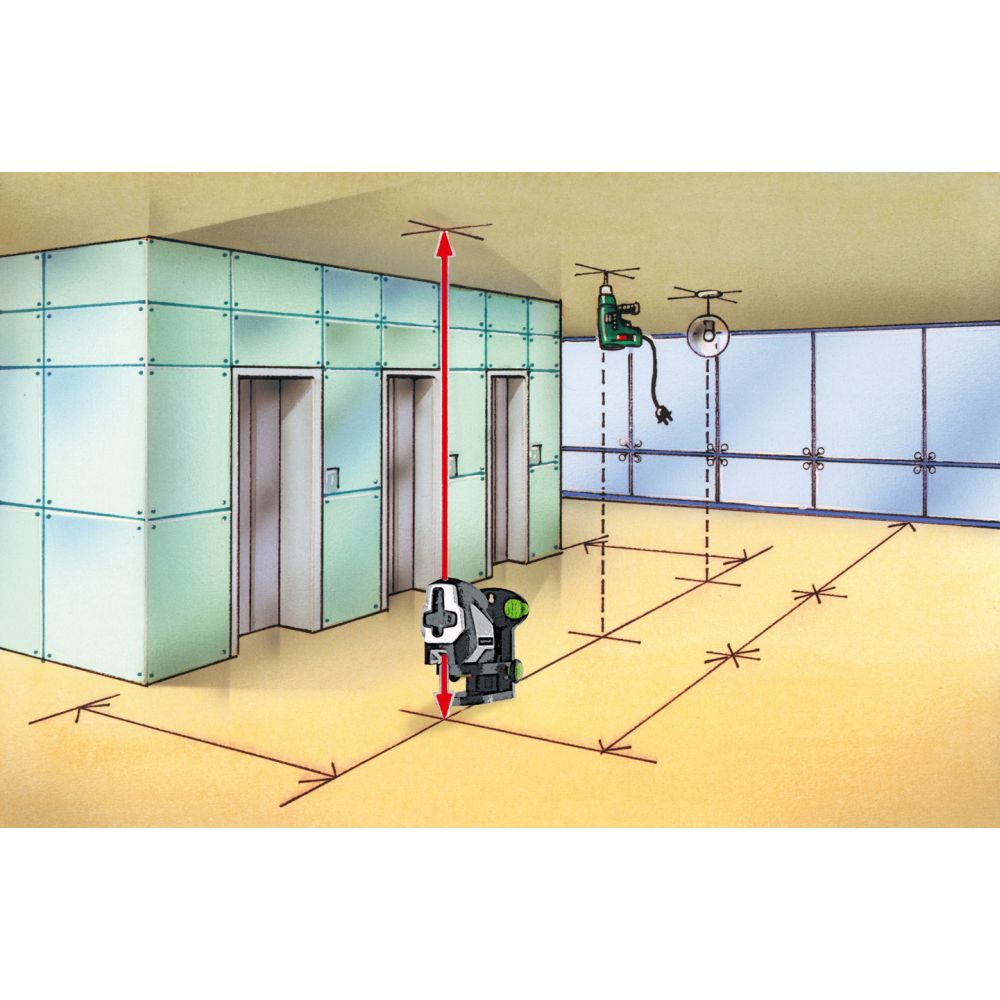

Plumb laser down | ✅ |

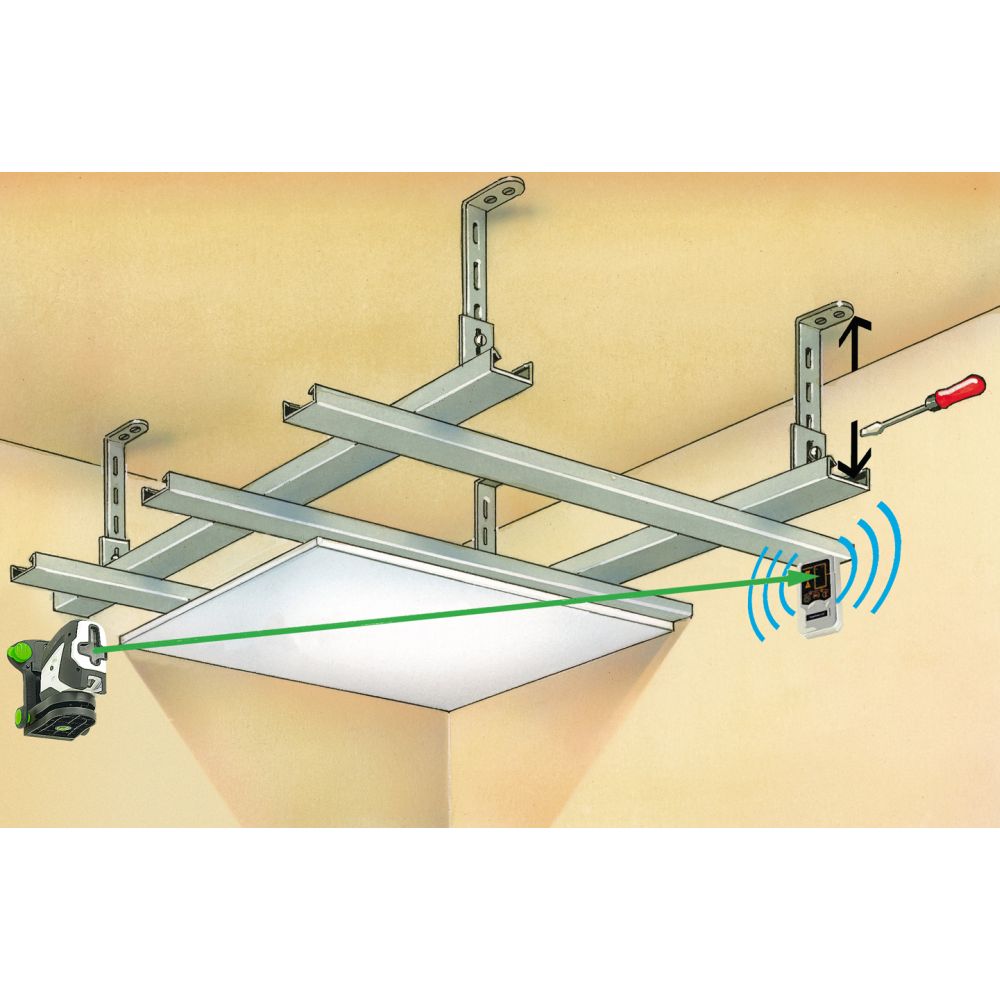

Hand receiver mode | ✅ |
Battery operation | ✅ |
Self-Levelling Range | ± 4° |
Accuracy | ± 0.5 mm / m |
Levelling | automatic |
Visibility (Typical)* | 40 m |
Working Range with Hand Receiver | (depends on how the technology affects the difference in brightness) 40 m |
Laser Wavelength | 515 nm |
Laser Class | 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021) |
Power Supply | 4 x 1.5V LR6 (AA) |
Operating Time | approx. 6 hours |
Operating Conditions | 0°C … 50°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 4000 m über NN (Normalnull) |
Storage Conditions | -10°C … 70°C, Luftfeuchtigkeit max. 80% rH |
Dimensions (W x H x D) | 124 mm x 119 mm x 66 mm |
Weight | 430 g (ohne Zubehör und Batterien) |

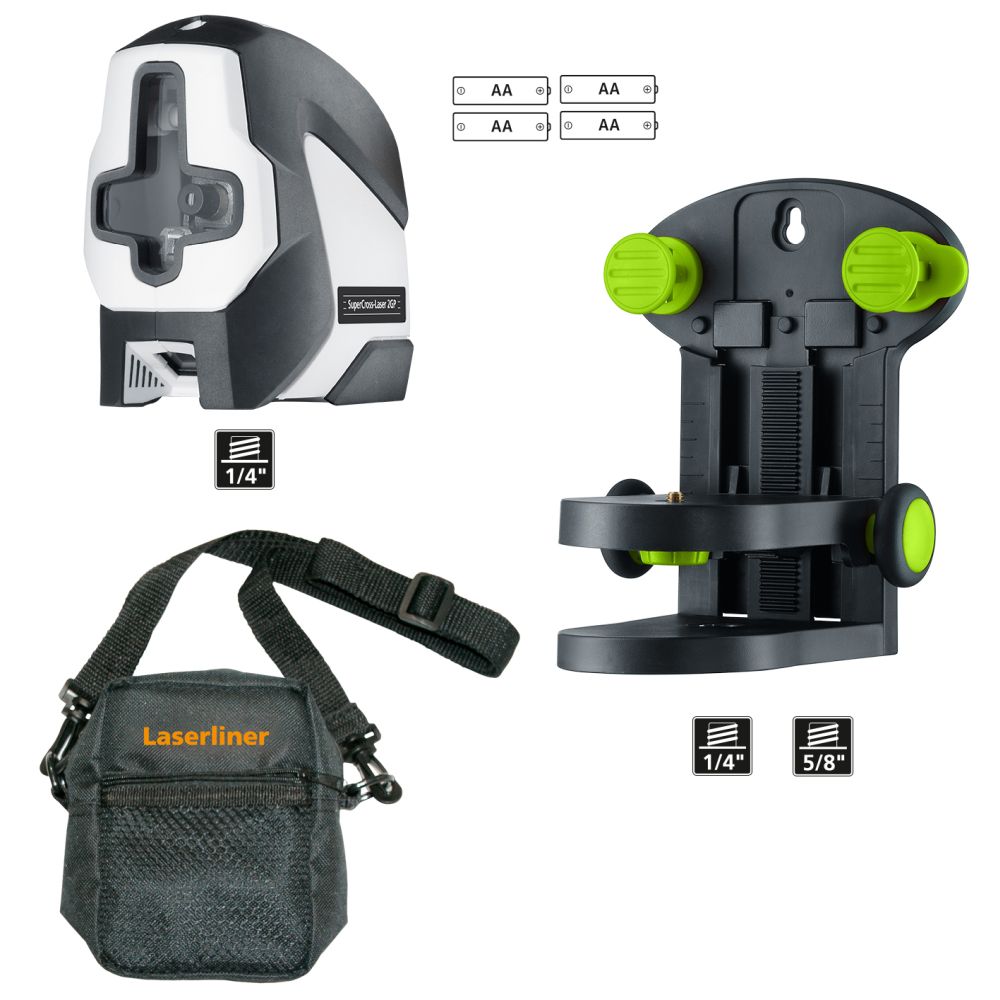

Scope of delivery:
Documentation:
Titel:
automatic cross-line laser
Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
OrangeLine
Art.No.: 081.191A, GTIN (EAN): 4021563710881
