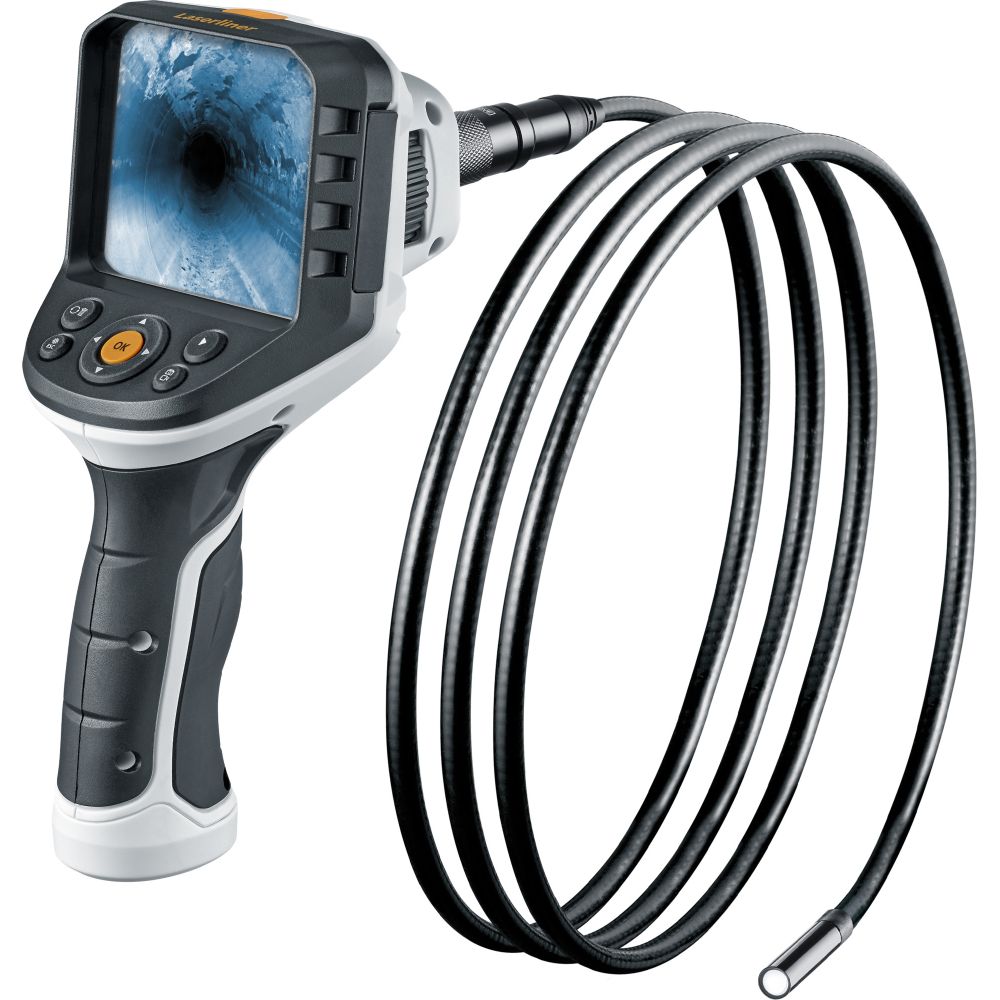

VideoFlex G4 XXL

Professional video inspection system for use over long distances


Description: This professional video inspection system allows hard-to-reach places, such as in pipes, wall cavities and motor vehicles to be visually inspected. Intuitive rotation of the base unit provides the user with easy spatial orientation. The long, flexible cable is perfect for use over long distances. The petrol- and diesel-resistant camera head with effective LED object lighting means that meaningful images can be captured even in poor conditions. The true colour reproduction provides an extremely realistic image and details can be clearly captured using the zoom function. The ergonomically designed device fits well in the hand and is also comfortable to use, even after extended periods of work. With eight languages and an exchangeable camera unit, this device can be used in many different application areas. Images and videos can be saved on an SD memory card and analysed via the USB-C interface.

  • Effective problem localisation behind or in objects, walls, pipes, cavities
  • SmartView: Intuitive rotation of the base unit for easy spatial orientation
  • Long flex cable for use over long distances

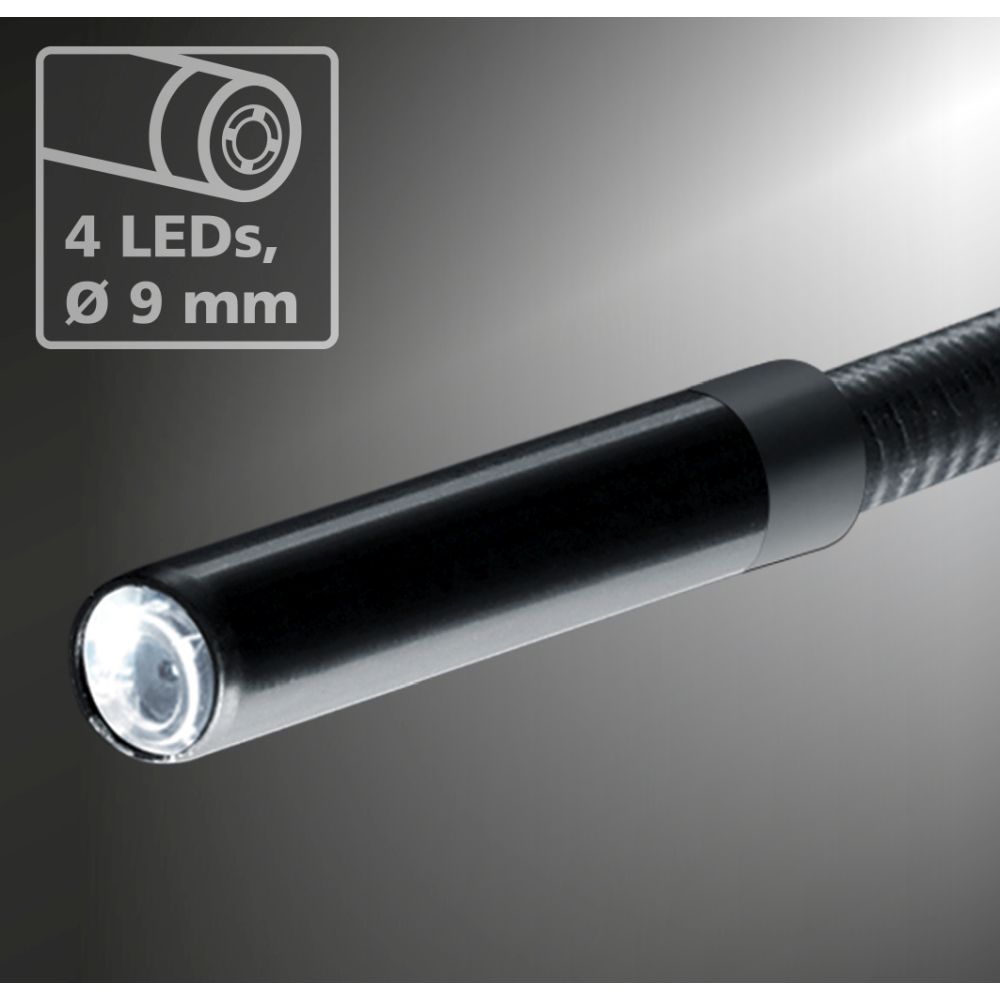

  • 4 high-performance LEDs for powerful object lighting at the camera
  • Range of installation options due to exchangeable camera unit
  • True colours for highly realistic image
  • Device fits well in the hand due to ergonomic design
  • Resistant to petrol and diesel
  • Magnet, mirror and hook mount for fixing on the camera head
  • Pull/lift difficult to reach objects
  • Mirror allows objects to be viewed at 90° angle
  • Guide sleeve – for smooth movement on uneven surfaces
  • Reduces sticking and contamination of the camera head.
  • Suitable image available on the monitor through rotation and mirroring
  • The images can be stored for analysis and documentation
  • USB-C interface for analysis on PC
  • Easy-to-read display
  • 8 available languages

  • Live display
    Image/video recording
    Image/video playback
    Digital zoom
    Object illumination
    Time stamp
    Image alignment
    External image/video output
    Data transfer
    SmartView
    Diameter Camera Head9 mm
    Camera Resolution640 x 480 pixels
    Field of View (FOV)53°
    Depth of Focus (DOF)1 … 6 cm
    Screen Type3,5" Colour TFT
    Display Resolution320 x 240 pixels
    Image FormatJPEG
    Length of Probe5 m
    Illumination5 brightness levels
    Digital Zoom2x digital zoom in 20% increments
    MemoryMicro-SD memory card up to 16 GB
    PortUSB
    PortsUSB type C
    RCA video output
    Power SupplyUSB type C 5V / 2A
    Li-ion battery pack 3.7V / 2.8Ah
    Dimensions (W x H x D)181 mm x 207 mm x 96 mm
    Weight342 g (inkl. Akkupack)

    Scope of delivery:
  • VideoFlex G4
  • XXLCamera 5 m
  • Li-ion battery pack
  • network/charging device incl. international adapter
  • USB cable
  • 4 GB micro SD card
  • video cable
  • TopClips
  • TopGuide
  • carrying case


  • Documentation:

    Titel:
    Professional video inspection system

    Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
    BlackLine

    Art.No.: 082.243A, GTIN (EAN): 4021563715756
