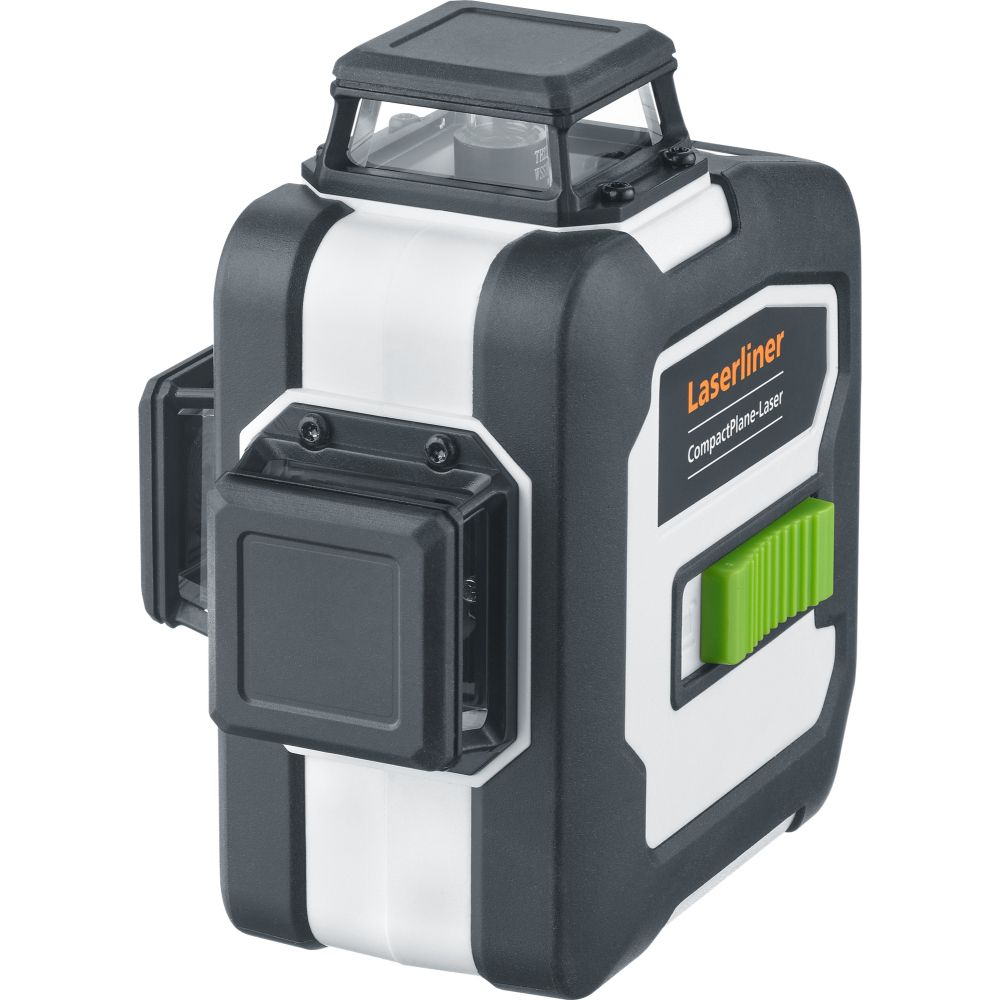

CompactPlane-Laser 3G Pro

3D green laser with one horizontal and two vertical laser circles and digital connection interface.


Description: This 3D laser projects one horizontal and two vertical laser circles, perfect for precise alignment of objects. The green laser technology provides high visibility, even in the most unfavourable lighting conditions. Gradients can be easily aligned using the manual slope function. The digital connection interface and free Commander app provide convenient remote control for the laser. Thanks to the effective prevention of measurement errors with the tilt function, the device provides a high degree of measurement reliability. The integrated handheld receiver mode allows the unit to be operated with an optional laser receiver, perfect for outdoor use and for long-range applications.

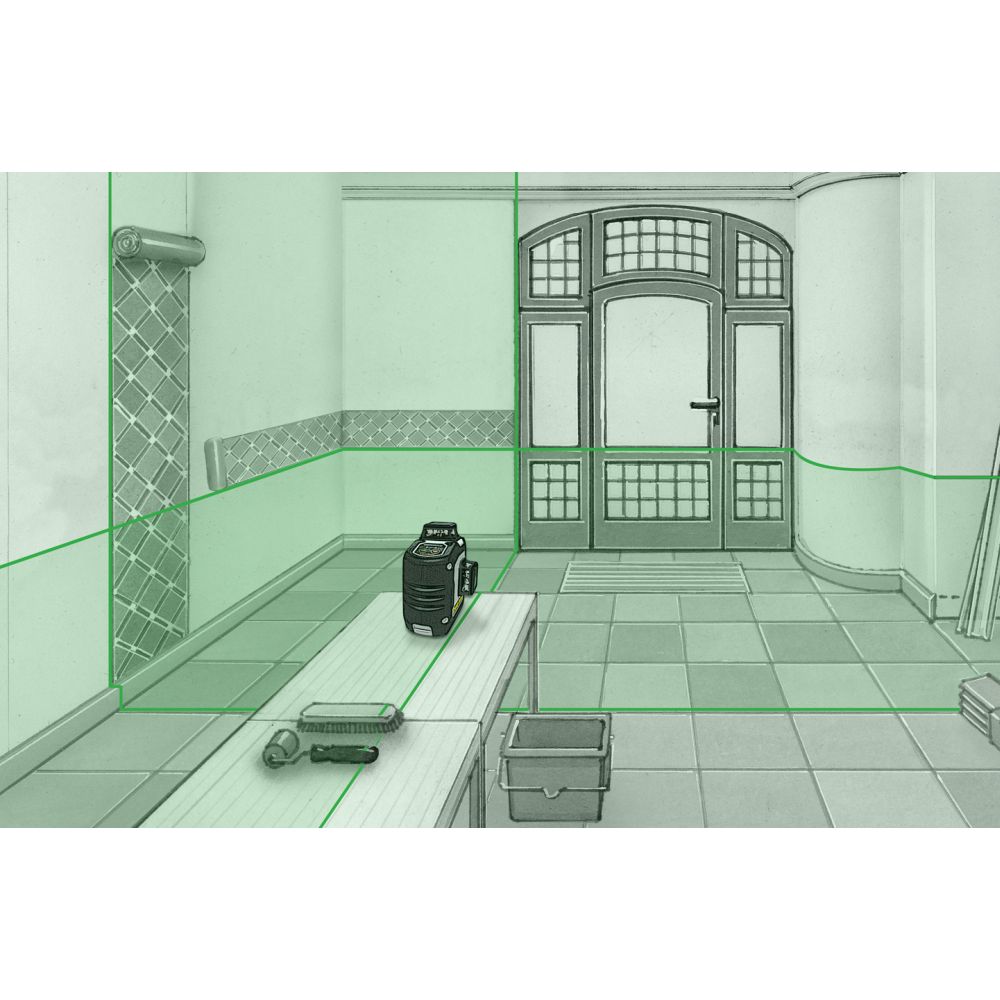

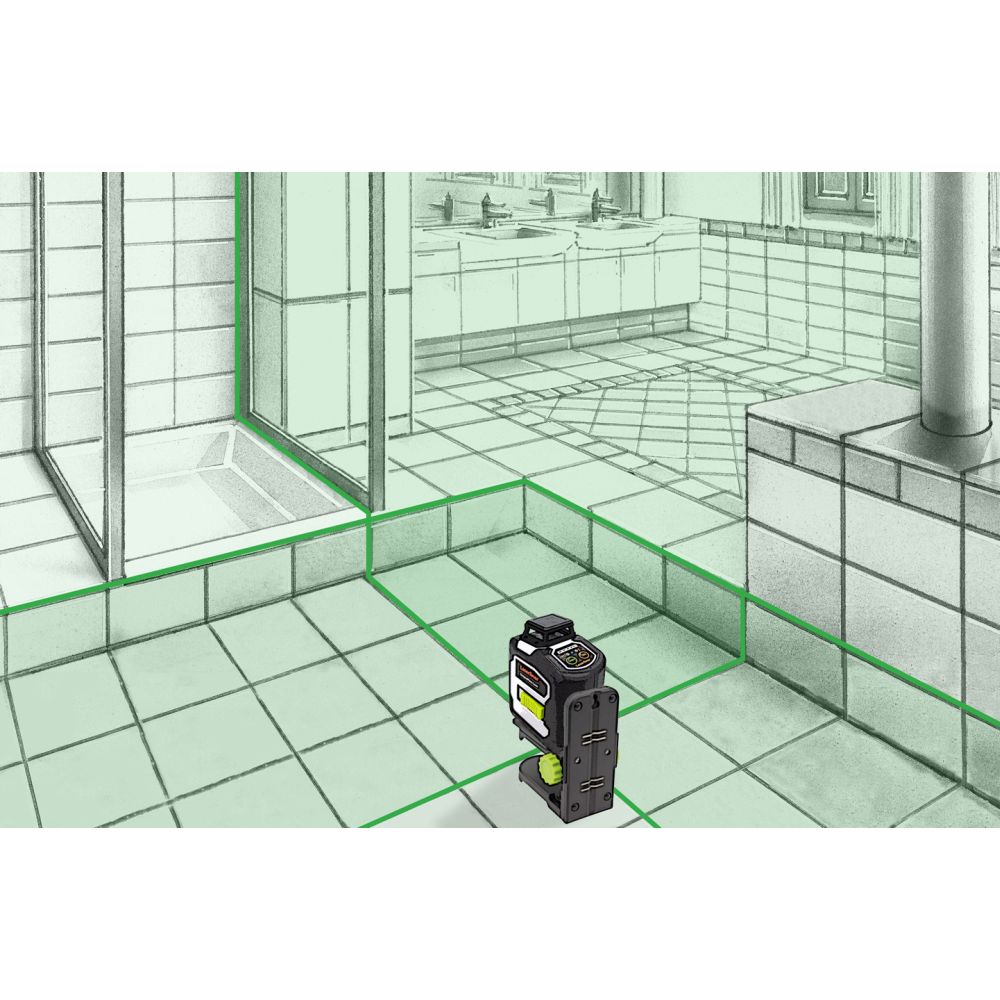

  • Three-dimensional laser with a horizontal and two vertical 360° laser circles
  • Exact horizontal and vertical alignment of objects
  • Easy alignment of slopes with manual tilt function
  • Good visibility through green laser technology

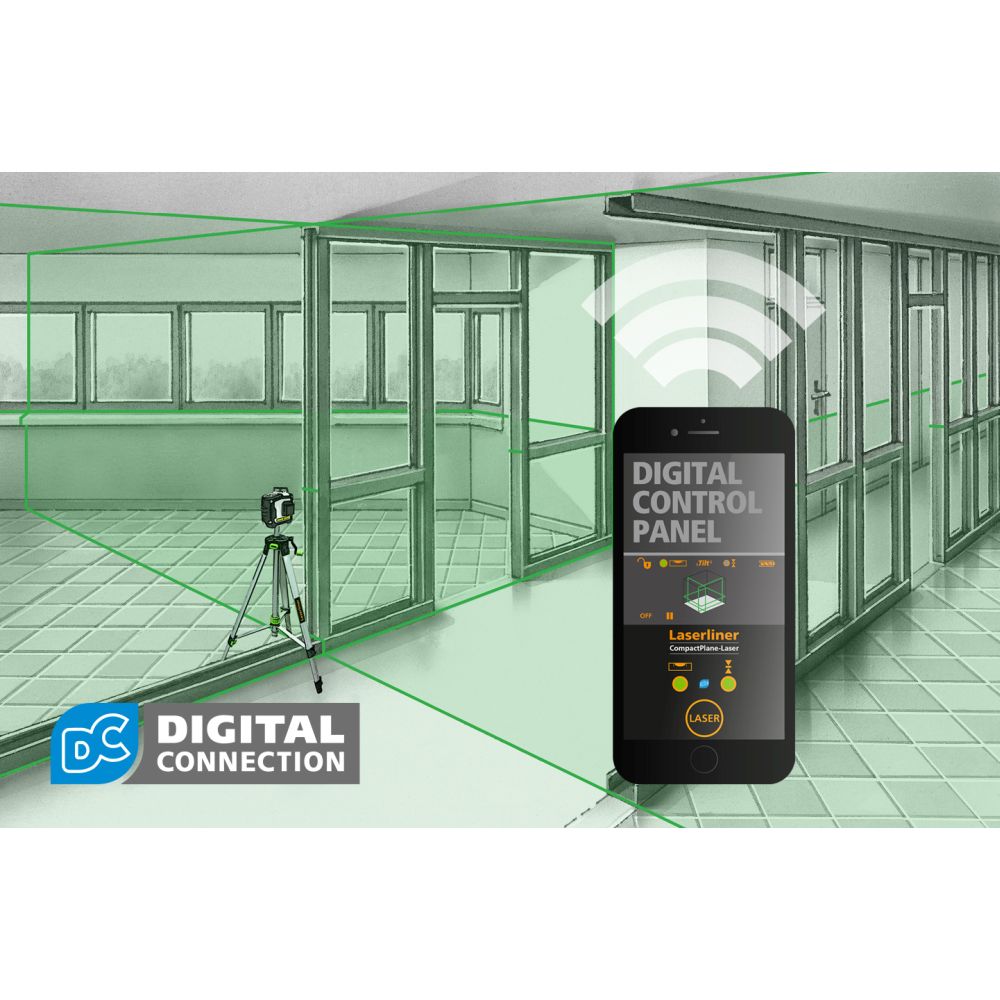

  • Digital Connection interface for remote control with smartphones using the Commander app
  • Time-saving automatic alignment
  • Effective protection against measurement errors through tilt function

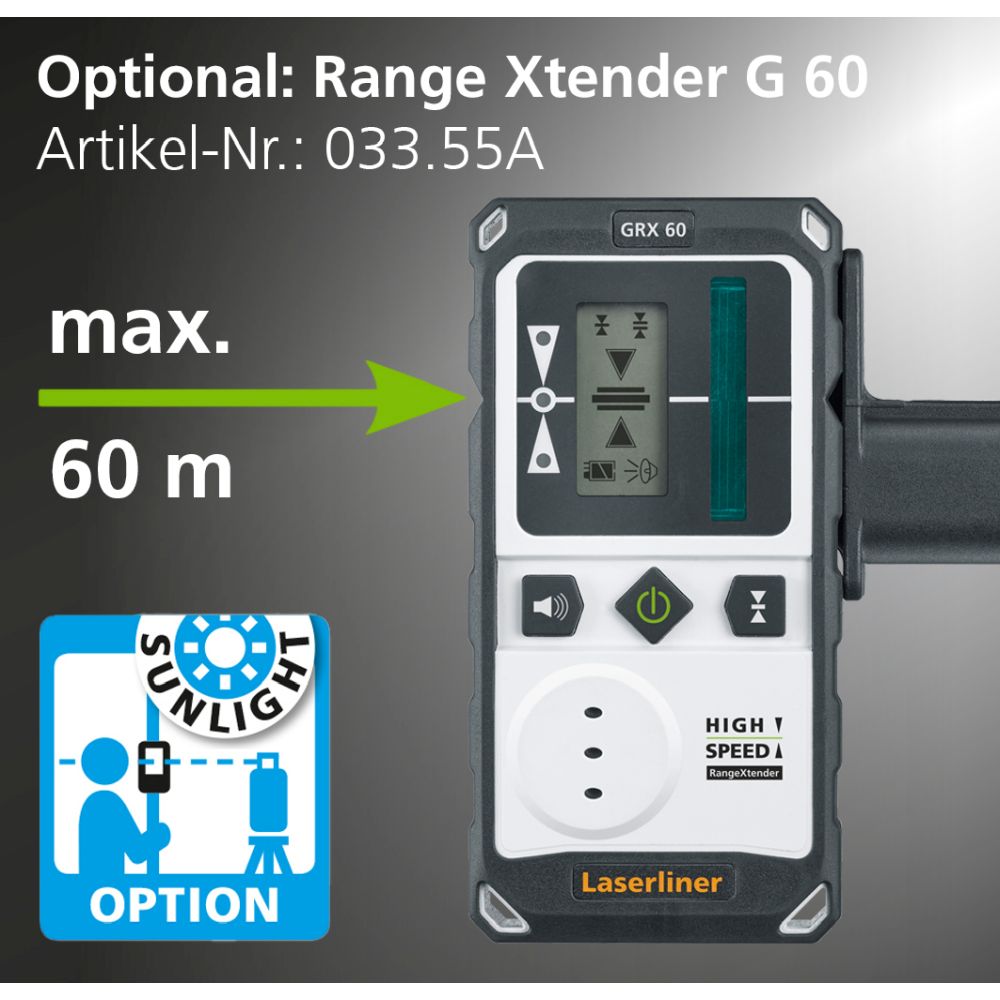

  • Integrated handheld receiver mode for outdoor applications and long ranges

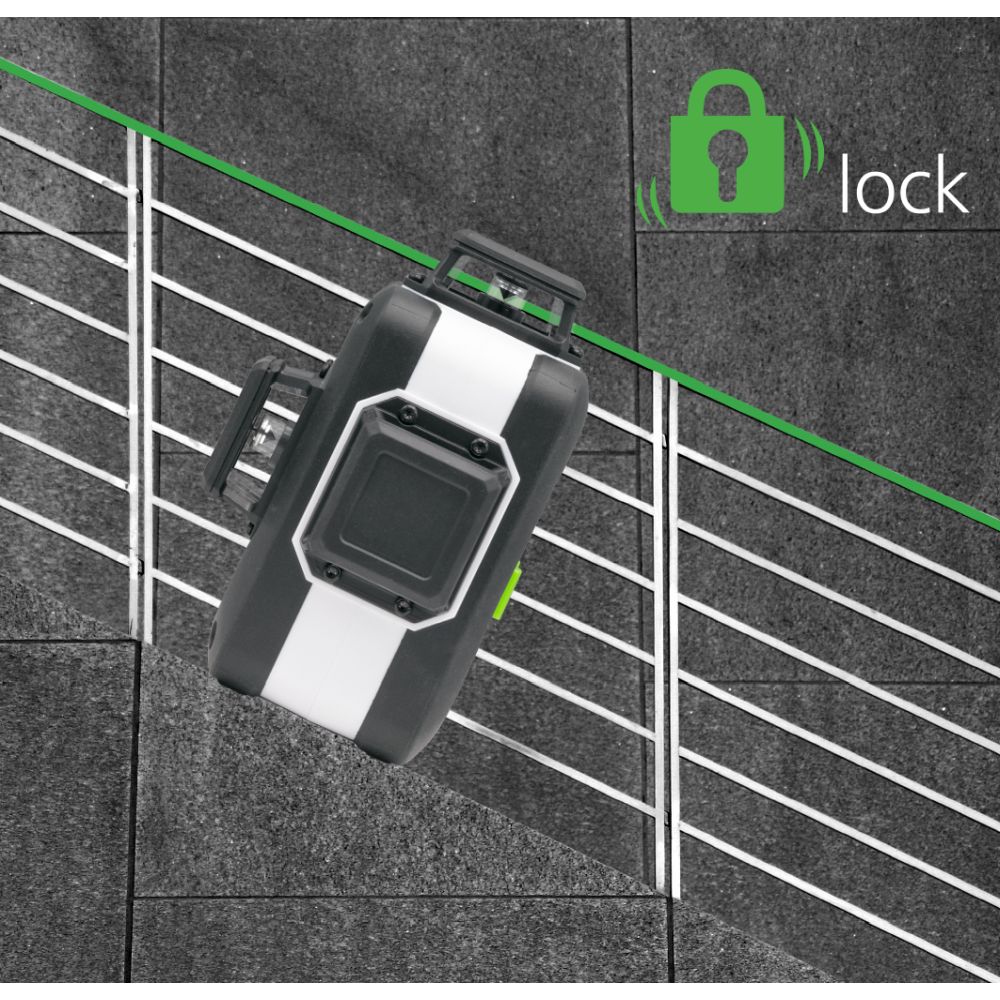

  • Pendulum restraint for safe transport
  • Long operating life due to second battery pack included in the scope of delivery
  • Rechargeable via USB-C cable
  • With 1/4" thread
  • With 5/8" thread

  • Hand receiver mode
    Horizontal/vertical levelling
    Manual slope function

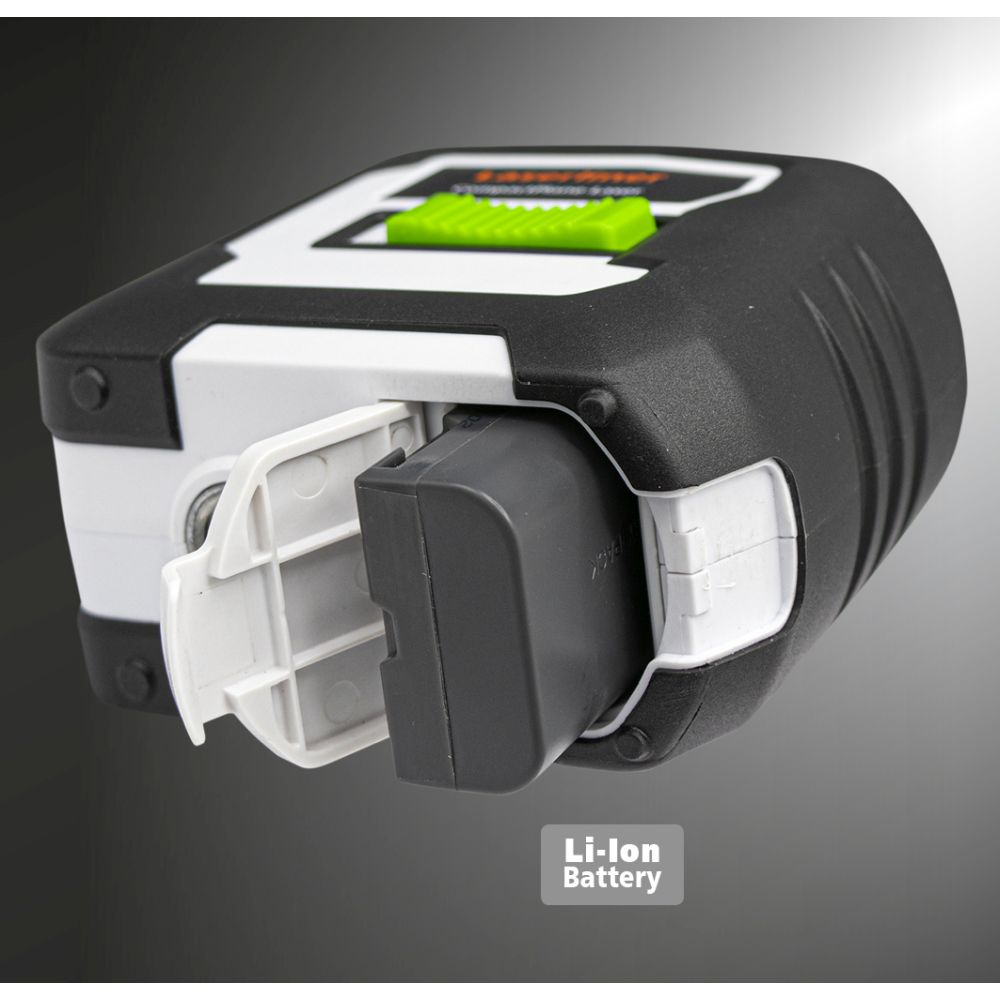

    Replaceable battery system
    Self-Levelling Range± 3°
    Accuracy± 0.35 mm / m
    Levellinghorizontal / vertical automatic
    Visibility (Typical)*30 m
    Laser Wavelength515 nm
    Laser Class2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
    Power SupplyLi-ion battery pack 7.4V / 2.6Ah / 19.24Wh
    Operating Timewith 3 laser levels: approx. 9 hours
    with 1 laser level: approx. 17 hours
    Operating Conditions0°C … 50°C, Luftfeuchtigkeit max. 80% rH, nicht kondensierend, Arbeitshöhe max. 4000 m über NN (Normalnull)
    Storage Conditions-10°C … 70°C, Luftfeuchtigkeit max. 80% rH
    Dimensions (W x H x D)120 mm x 122 mm x 80 mm x #
    Weight525 g (inkl. Akkupack)

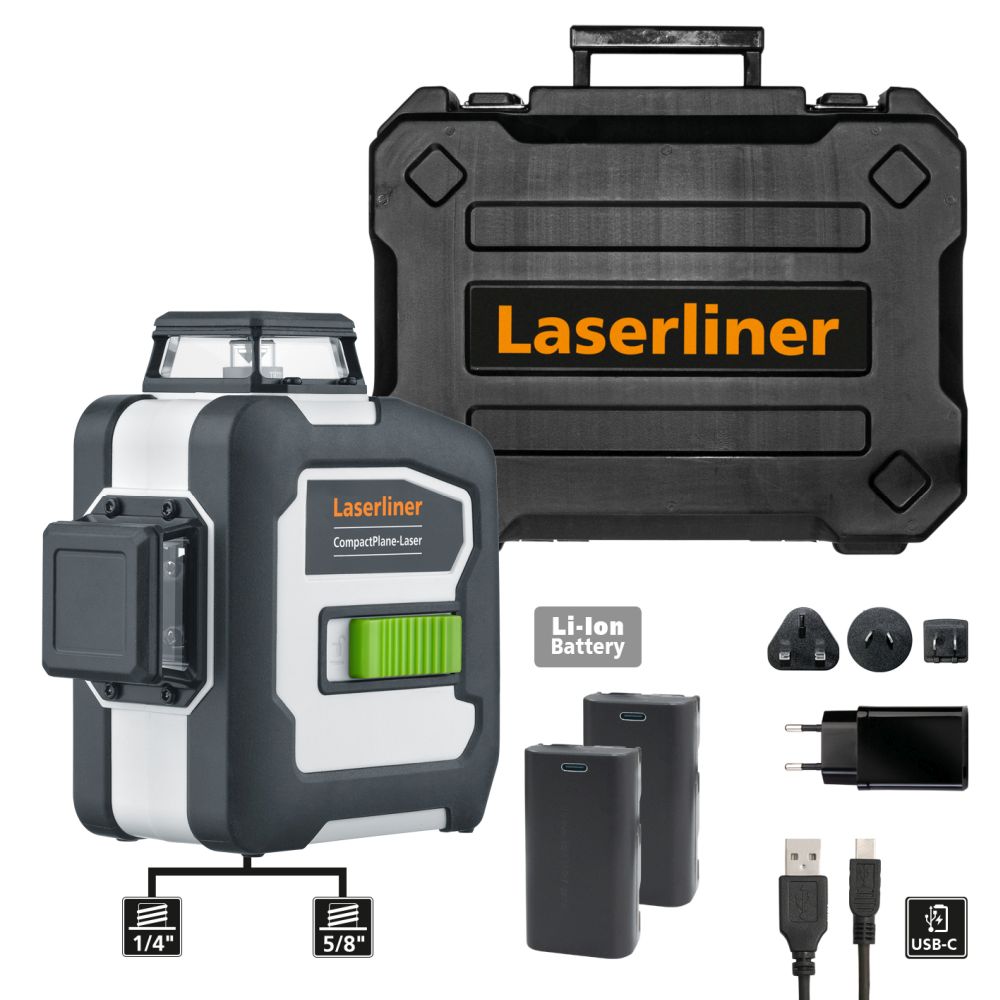

    Scope of delivery:
  • CompactPlane-Laser 3G Pro
  • 2 x HighCapacityPack (Li-Ion)
  • network/charging device incl. international adapter
  • USB-C-cable
  • carrying case


  • Documentation:

    Titel:
    Three-dimensional laser

    Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
    BlackLine

    Art.No.: 036.295A, GTIN (EAN): 4021563716647
