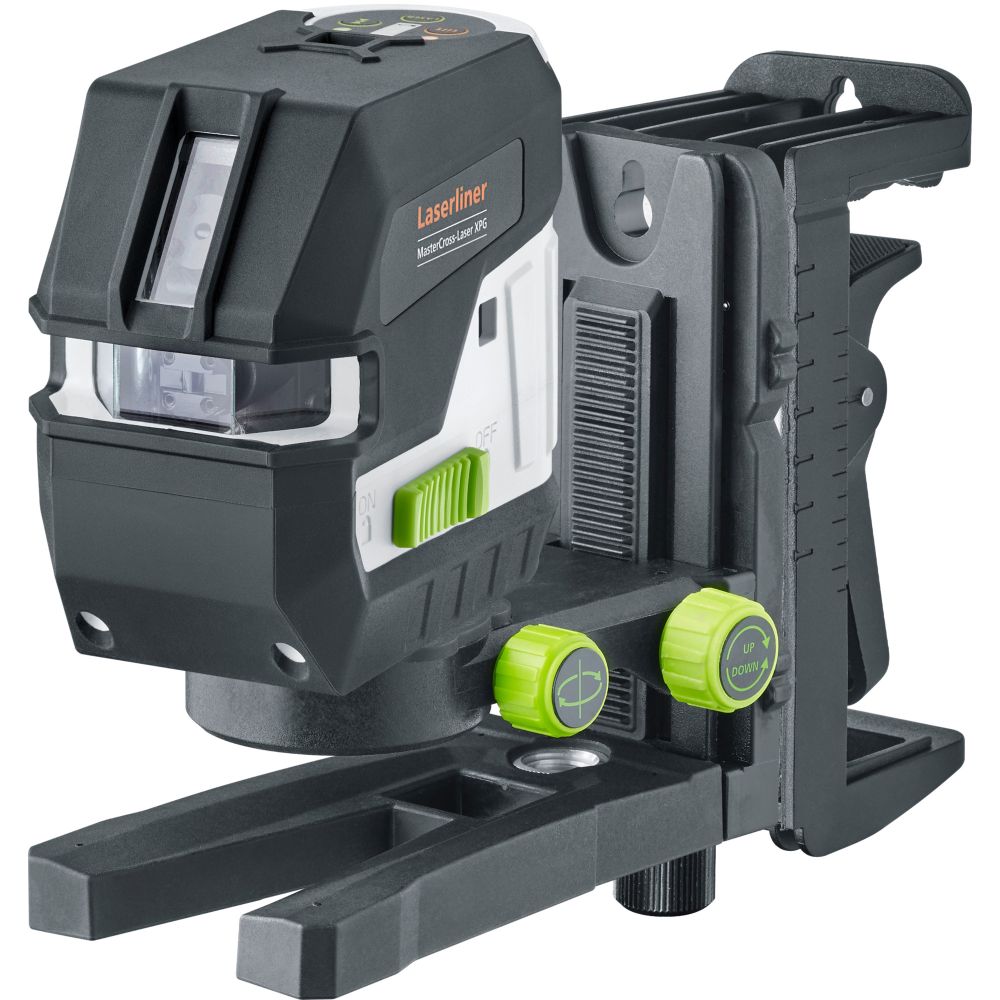

MasterCross-Laser XPG
Perfectly visible cross-line laser including plumb function, side laser points and clamp and wall bracket with vernier adjustment

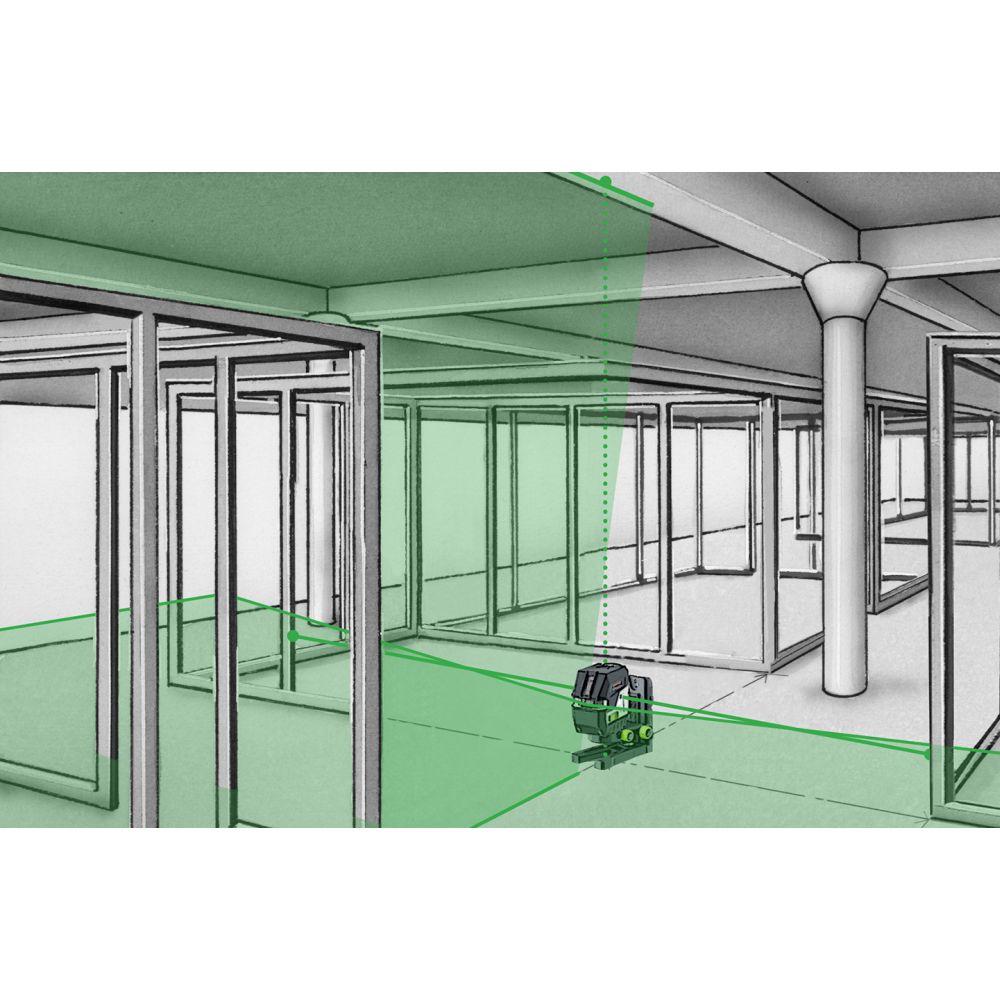

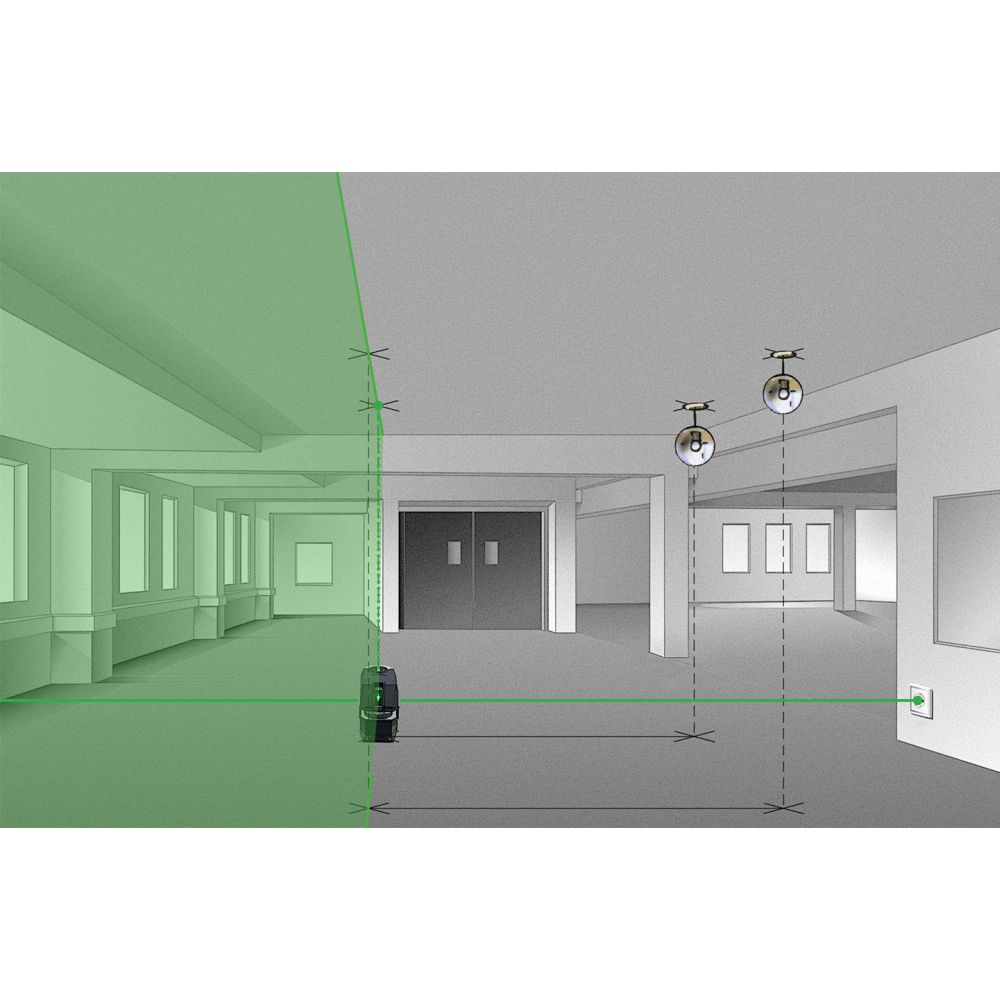

Description: Its bright laser cross makes this cross-line laser with green laser technology the laser of choice for precise alignment of horizontals, verticals and slopes. It also projects two side points and two plumb points that are characterised by an especially high degree of visibility and that are at a 90° angle to each other. This enables efficient plumb lining, even in very high rooms. Markings can be easily transferred from wall to wall with the side laser points, for example, when painting, aligning wooden panels or installing electrics. The clamping and wall bracket allows the laser to be hung up or attached to metallic surfaces or ceiling profiles. The vernier adjustment mechanism enables precise vertical adjustment of the laser lines to edges.

  • Accurate horizontal and vertical alignment of objects
  • Good visibility through green laser technology
  • 4 Point Projection: Laser points top, bottom and at the side in 90° configuration for exact marking transfer from wall to wall
  • Plumb function for synchronous working on floor and ceiling
  • Especially bright plumb points for use in buildings with high rooms
  • Magnetic clamp and wall bracket for hanging, horizontal and vertical clamping to profiles, and attaching to metallic surfaces
  • MicroControl: Vernier adjustment mechanism for precise vertical adjustment of the laser lines to edges and adjusting screw to adapt the bracket to different profile thicknesses
  • Easy alignment of slopes with manual tilt function

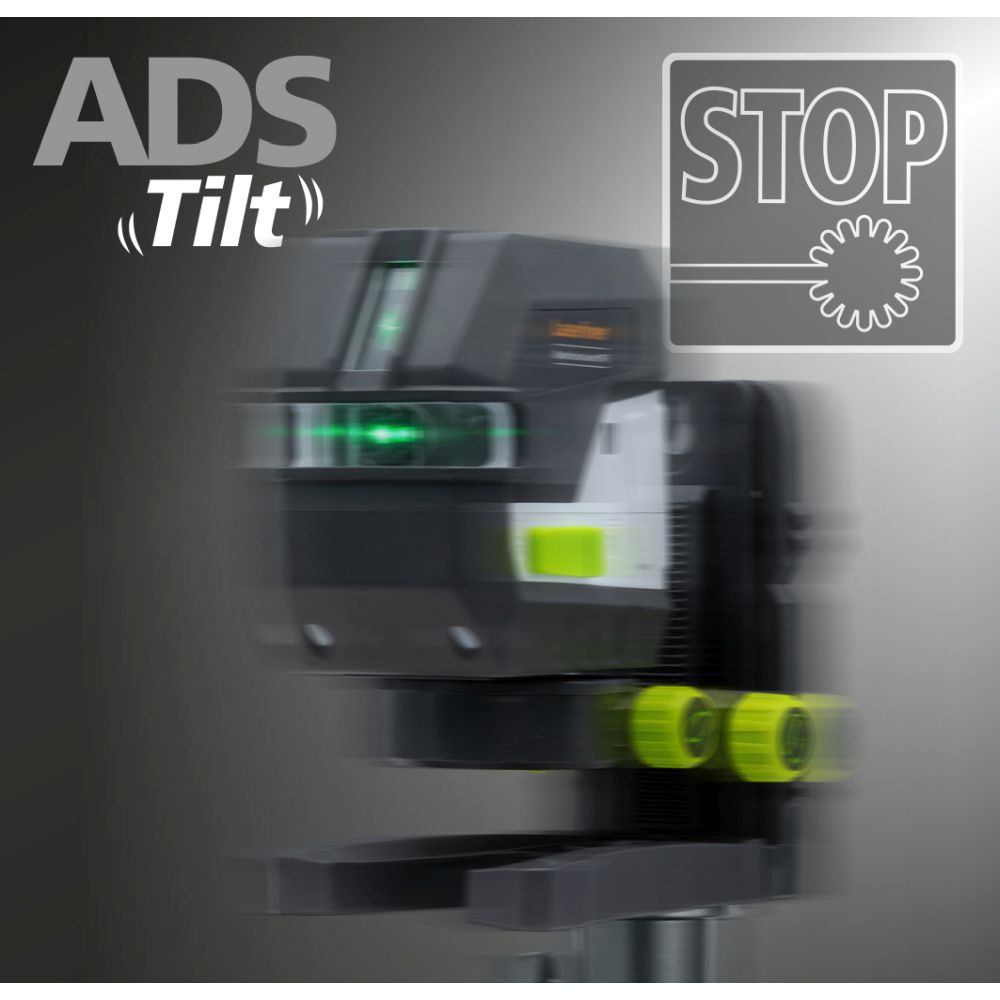

  • Reliable measurement through automatic power off with ADS tilt
  • Individually switchable laser lines

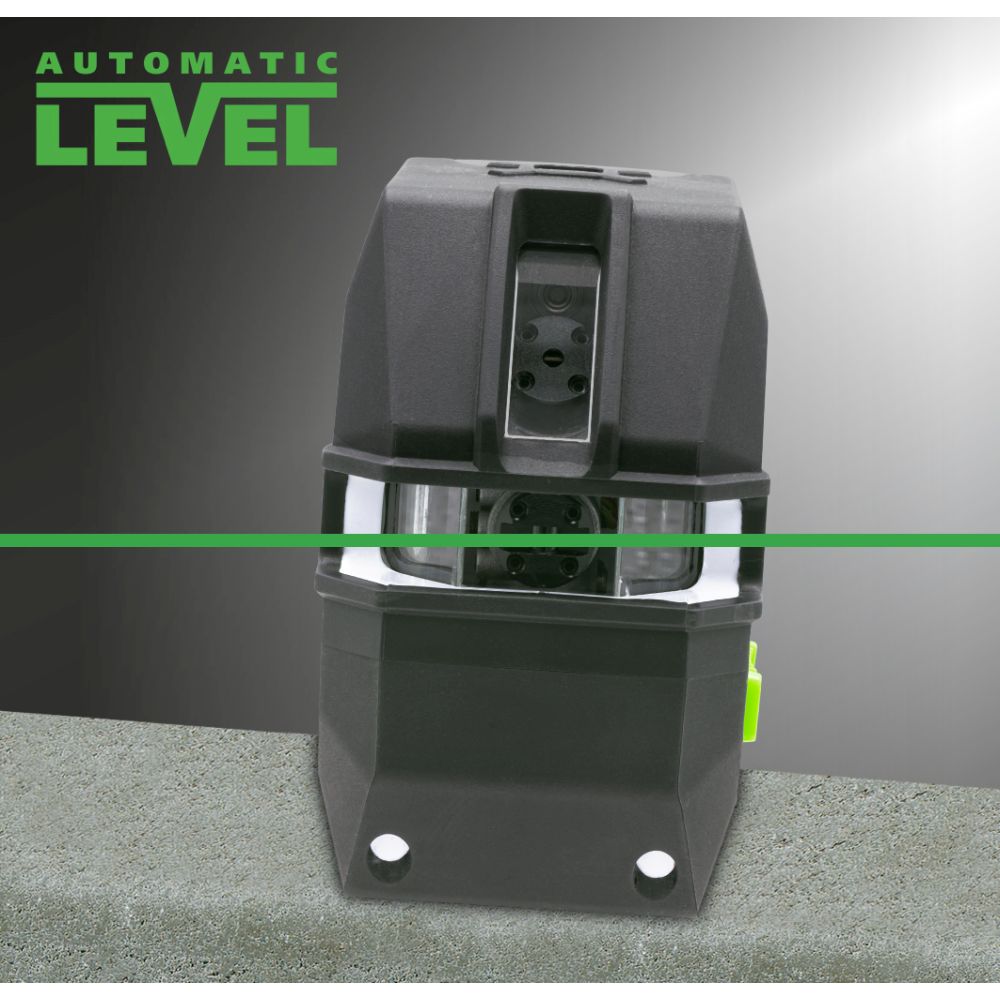

  • Time-saving automatic alignment
  • Long operating life due to powerful HighCapacityPack with lithium-ion technology
  • Can be recharged via the USB-C interface and USB-A to USB-C cable

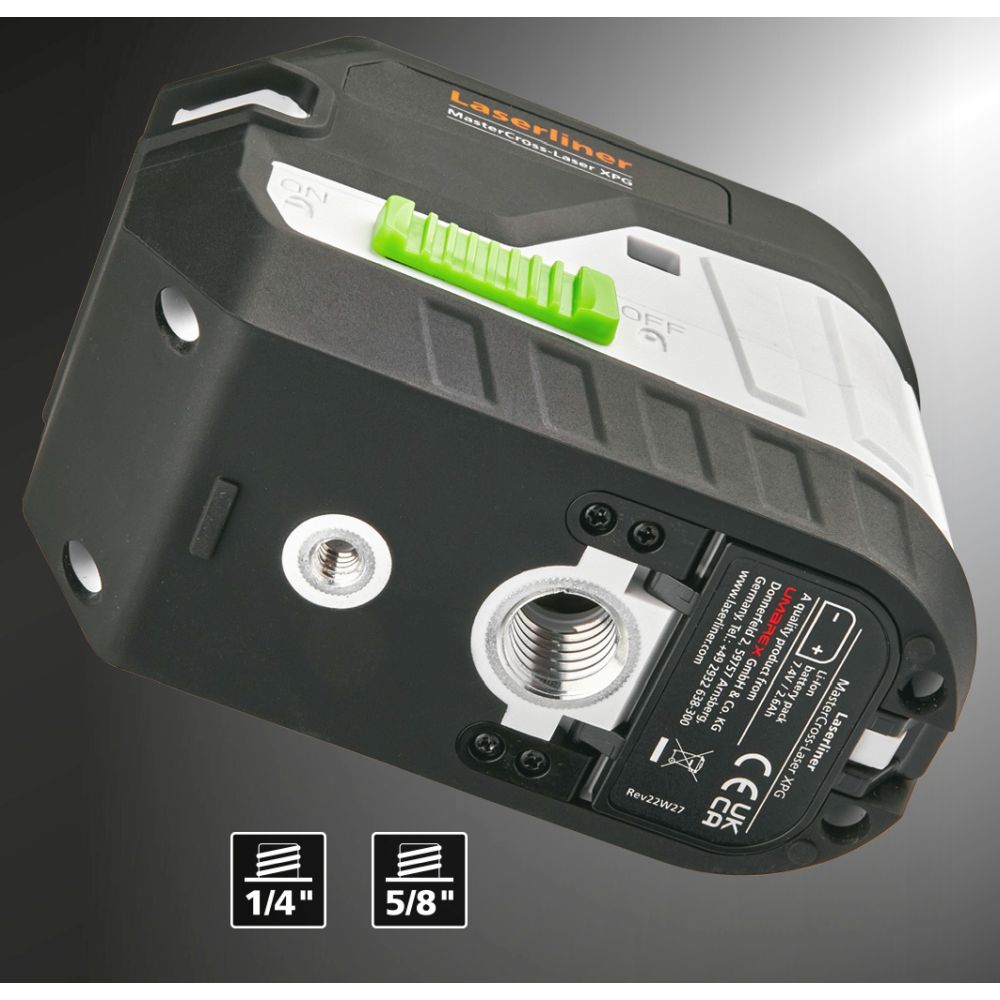

  • Attachment to tripods via 1/4” thread on the laser or 5/8” thread on the clamping and wall bracket

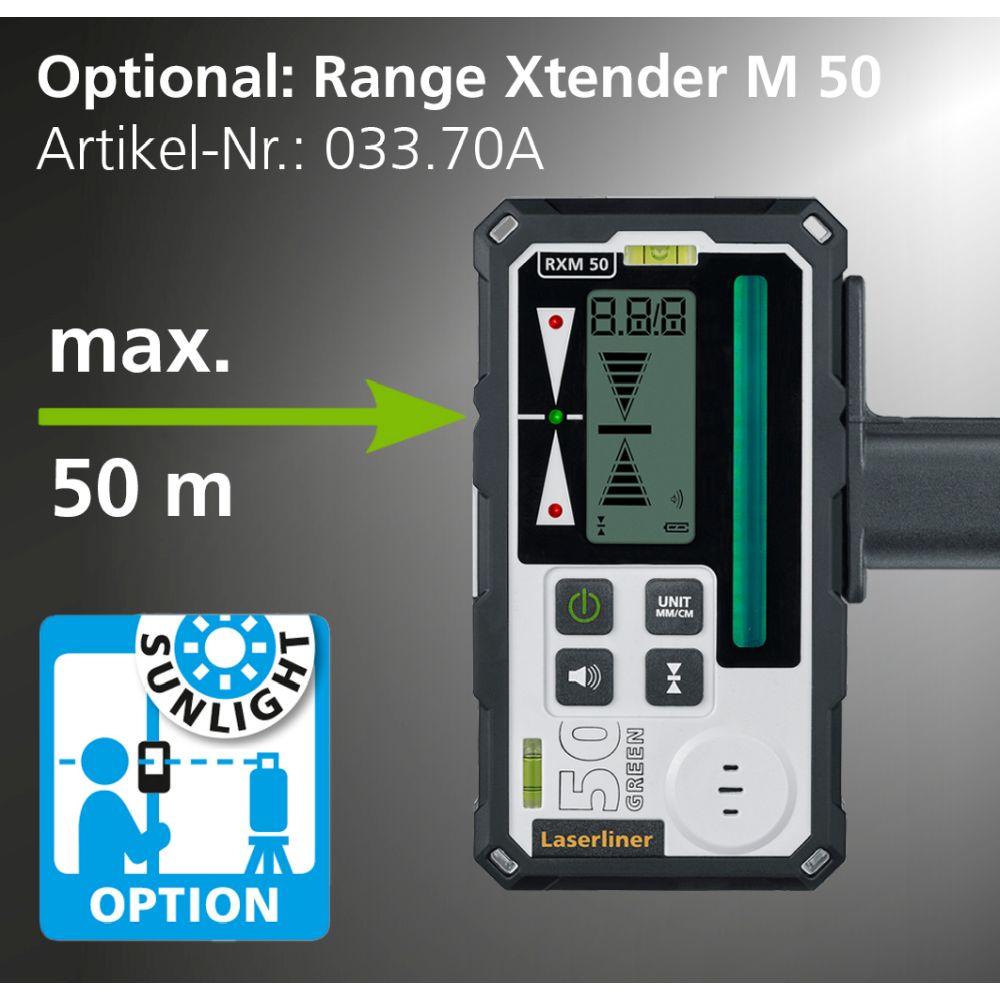

  • Integrated handheld receiver mode for outdoor applications and long ranges

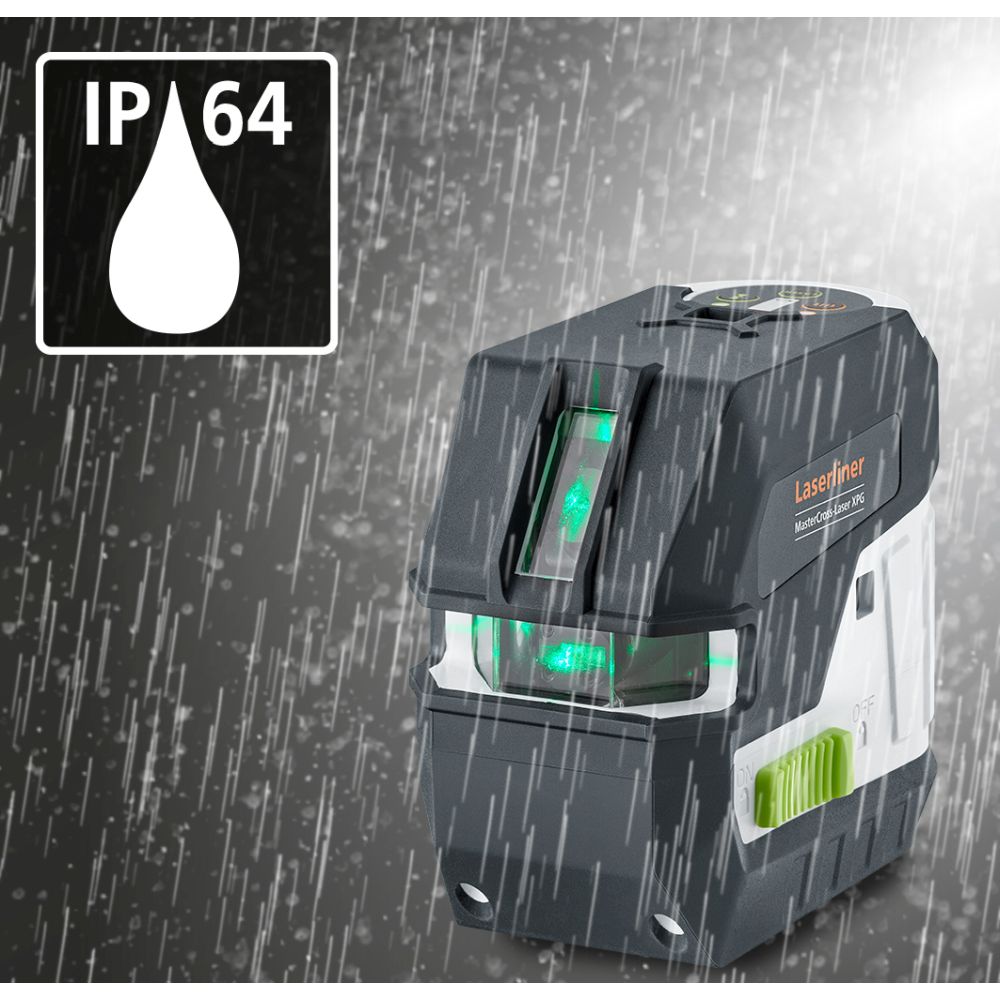

  • IP 64: Well protected against dust, perfect for use in harsh working conditions

  • Technical Data031.420A MasterCross-Laser XPG
    TitleCross-line laser
    Horizontal/vertical levelling
    Manual slope function
    Plumb laser (up/down)
    Laser points (left/right)
    Replaceable battery system
    Hand receiver mode
    Tilt warning function
    Tripod Connection1/4" / 5/8" thread
    Accuracy± 0.2 mm / m
    Self-Levelling Range± 2.5°
    Visibility (Typical)*55 m
    Length of Receiver Unit0 mm
    Laser Wavelength515 nm
    Plumb Laser Wavelength515 nm
    Laser Class2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
    Protection ClassIP 64
    Power SupplyLi-ion battery pack 7.4V / 2.6Ah / 19.24Wh
    Operating Timeapprox. 8 hours
    Battery Recharging Timeapprox. 4 hours
    Temperature (Working Conditions)0°C … 50°C

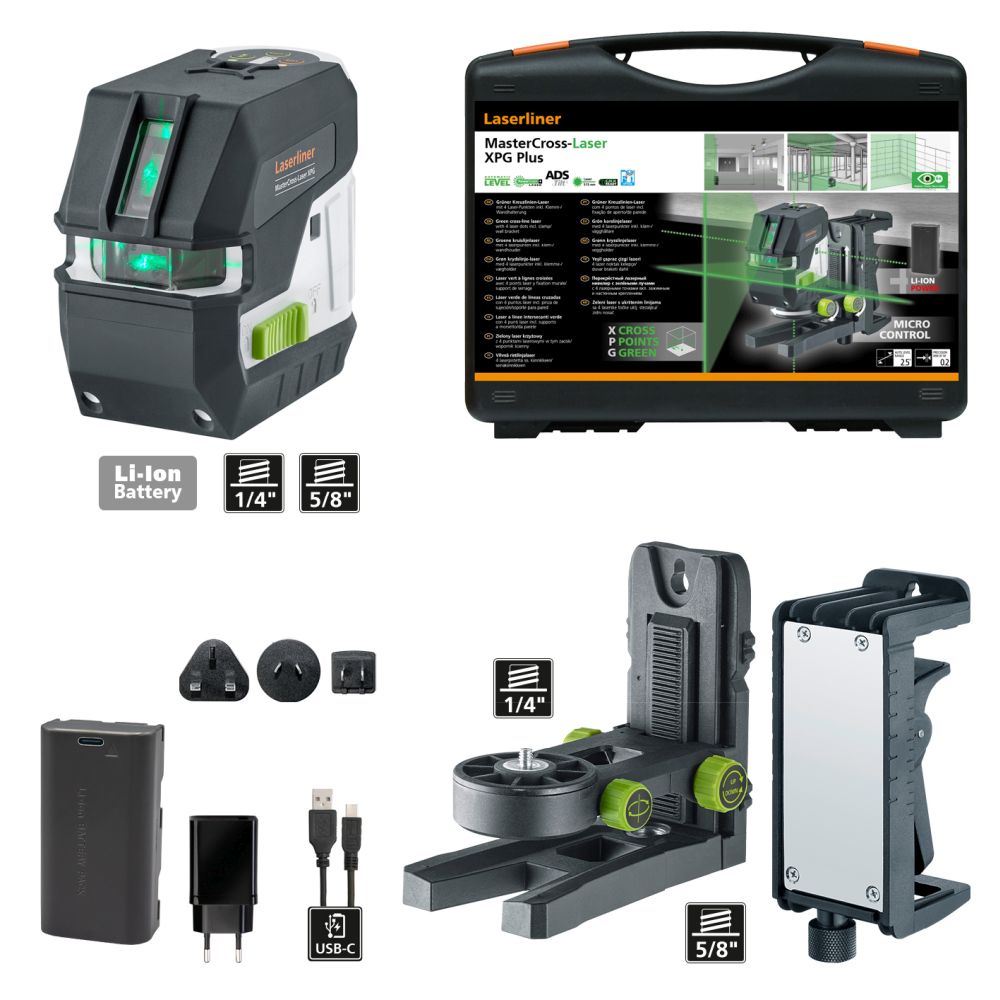

    Scope of delivery:
  • MasterCross-Laser XPG
  • CrossGrip Plus
  • HighCapacityPack (Li-Ion)
  • network/charging device incl. international adapter
  • USB-C-cable
  • carrying case

  • Documentation:

    Cross-line laser

    Industrial Quality (BlackLine) / Professional Technology (OrangeLine):

    Art.No.: 031.420A, GTIN (EAN): 4021563729876
