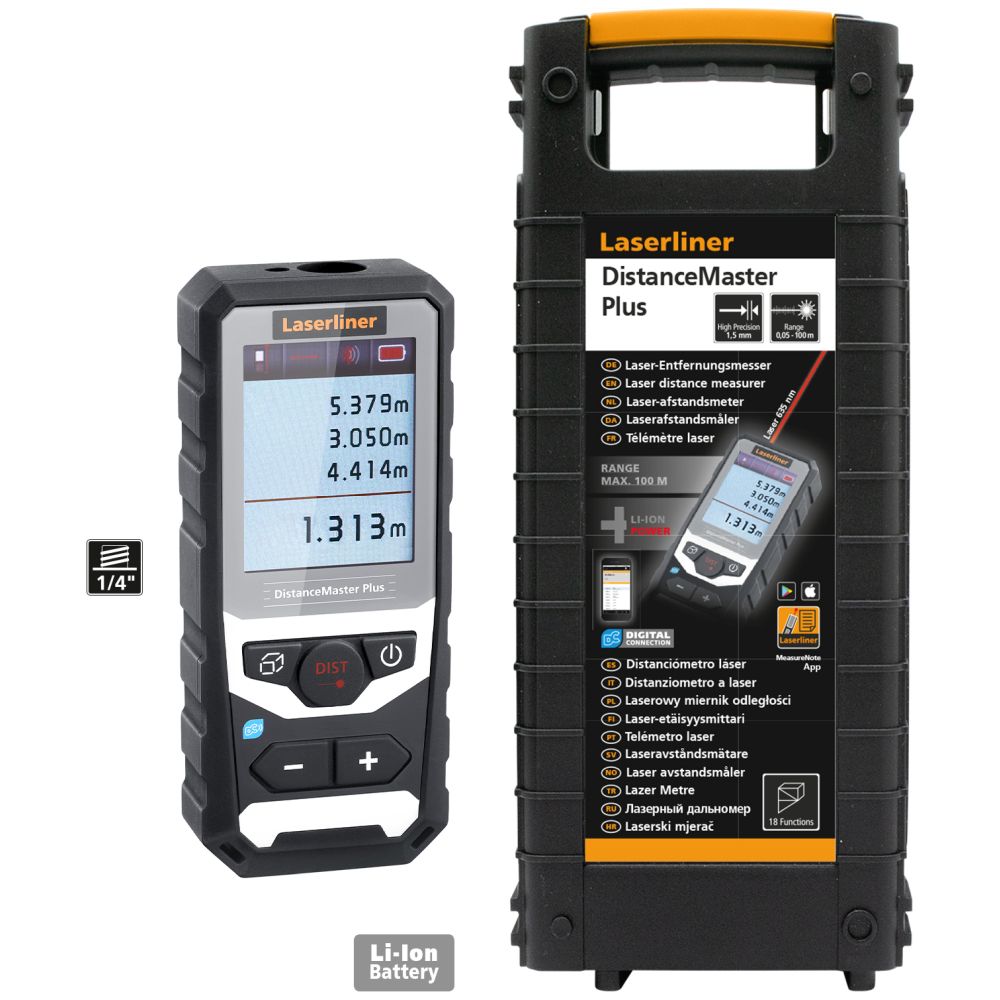

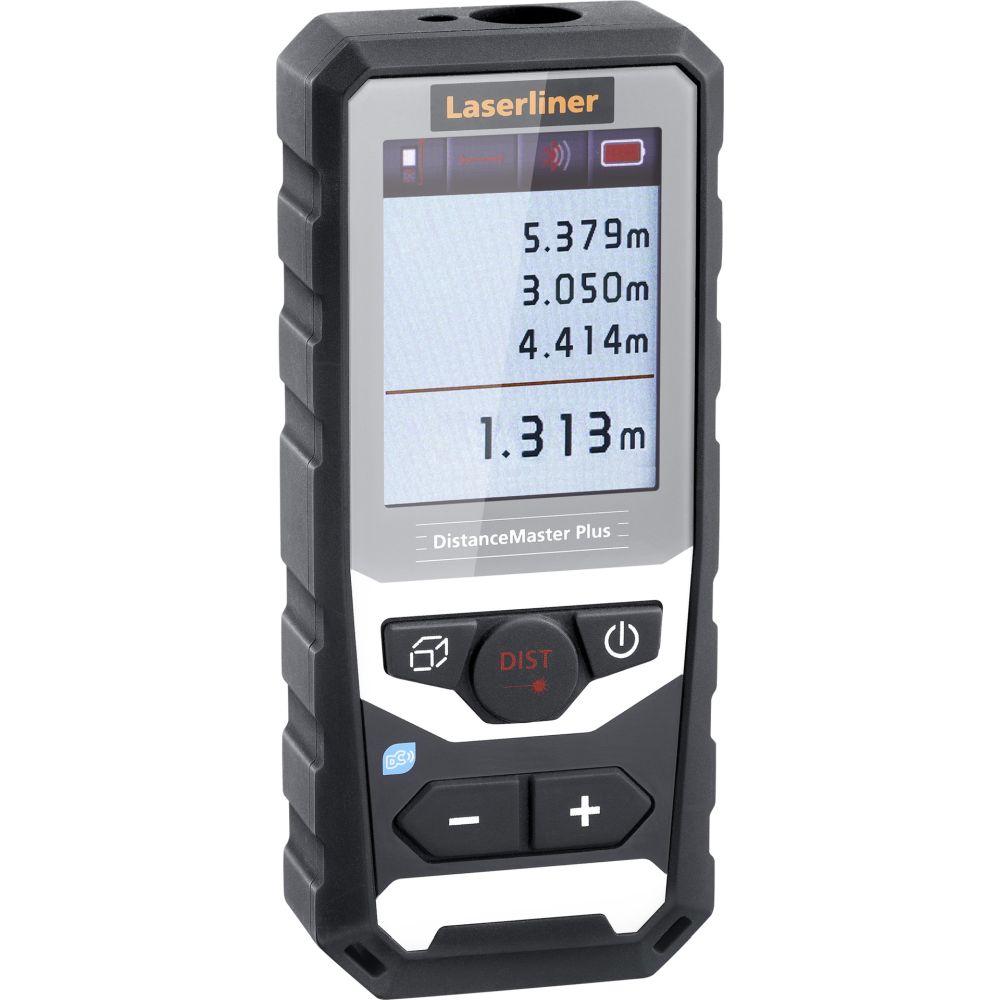

DistanceMaster Plus 100 m

Universal laser rangefinder with angle function and digital connection


Description: This universal laser rangefinder has a long measuring range of 100 metres and is perfect for rapid measurement, addition and subtraction of lengths, areas and volumes. The angle function allows heights and distances to be determined indirectly – perfect for measuring inaccessible locations. The continuous measuring function makes it easier to work in situations where continuous range-finding measurements are required, such as when the target object moves during measurement. The digital spirit level allows the rangefinder to be precisely aligned horizontally and perfectly set up for the measurement. Measured data can be transferred to the measured value log using the digital connection interface. It can store a maximum of 50 entries for optimum recording of results from the project.

  • Simple measurement, addition and subtraction of lengths, areas and volumes
  • Indirect determination of height in hard to reach locations using angle function (1 + 2 + 3)

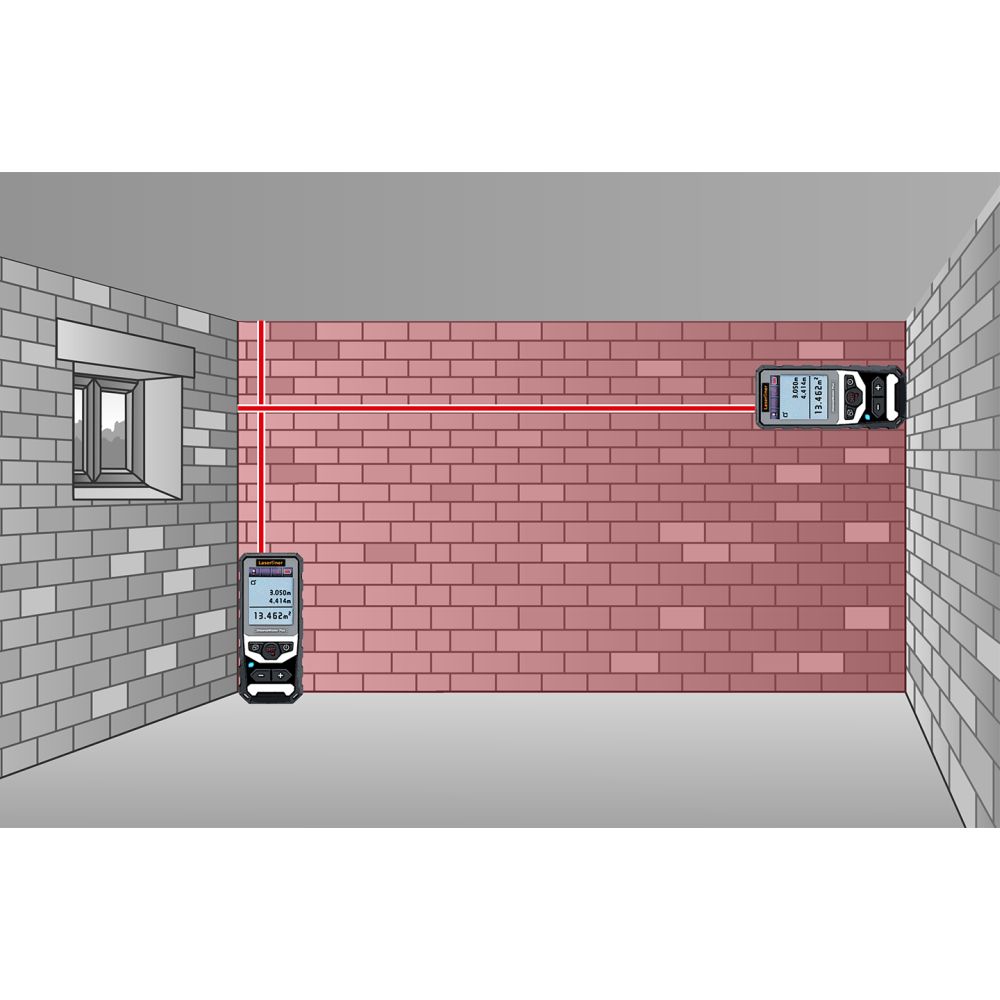

  • Automatic addition of wall surfaces with the same height, ideal for painting work
  • Long measuring range of 100 m
  • Continuous measurement with min/max display
  • Exact alignment of the measuring instrument through digital spirit level
  • Robust, dustproof and waterproof
  • Optimum project documentation: Easy transfer of measurement data to mobile devices via the digital connection
  • Front, back or tripod housing reference point options
  • Easy to use due to highly legible colour display
  • Effective saving of measured values through memory function with 50 memory locations
  • Energy-saving Auto Off function when not in use
  • Powerful lithium-ion battery with long operating time

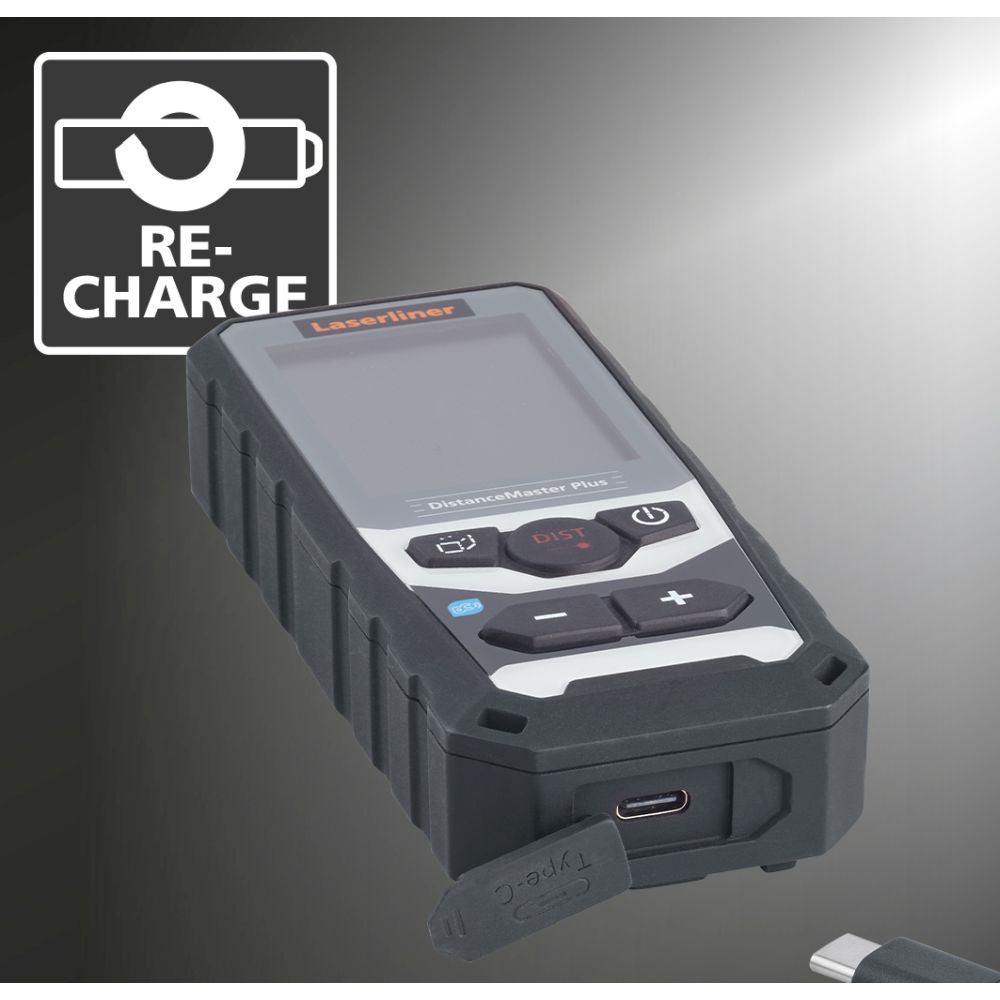

  • Rechargeable via USB-C cable

  • Length/area/volume
    Min/Max
    Continuous measurement
    Indirect determination of height (Pythagoras)
    Selectable housing reference point
    Addition/subtraction
    Data transfer
    Addition of wall area (decorators’ function)
    Precision (Typical)*± 1.5 mm
    Measurement Range (Inside)**0,1 m - 100 m
    Laser Wavelength635 nm
    Laser Class2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
    Memory50 storage locations
    Unitsm / ft / inch / _' _''
    Power SupplyLi-ion battery pack 3.7V / 0.7Ah
    Operating Conditions-10°C … 40°C, Luftfeuchtigkeit max. 20 … 85% rH, nicht kondensierend, Arbeitshöhe max. 2000 m über NN (Normalnull)
    Dimensions (W x H x D)54 mm x 126 mm x 27 mm
    Weight142 g (inkl. Akkupack)
    ** at max. 5,000 lux

    Scope of delivery:
  • DistanceMaster Plus
  • batteries
  • transport box


  • Documentation:

    Titel:
    laser rangefinder

    Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
    BlackLine

    Art.No.: 080.983A, GTIN (EAN): 4021563732029
