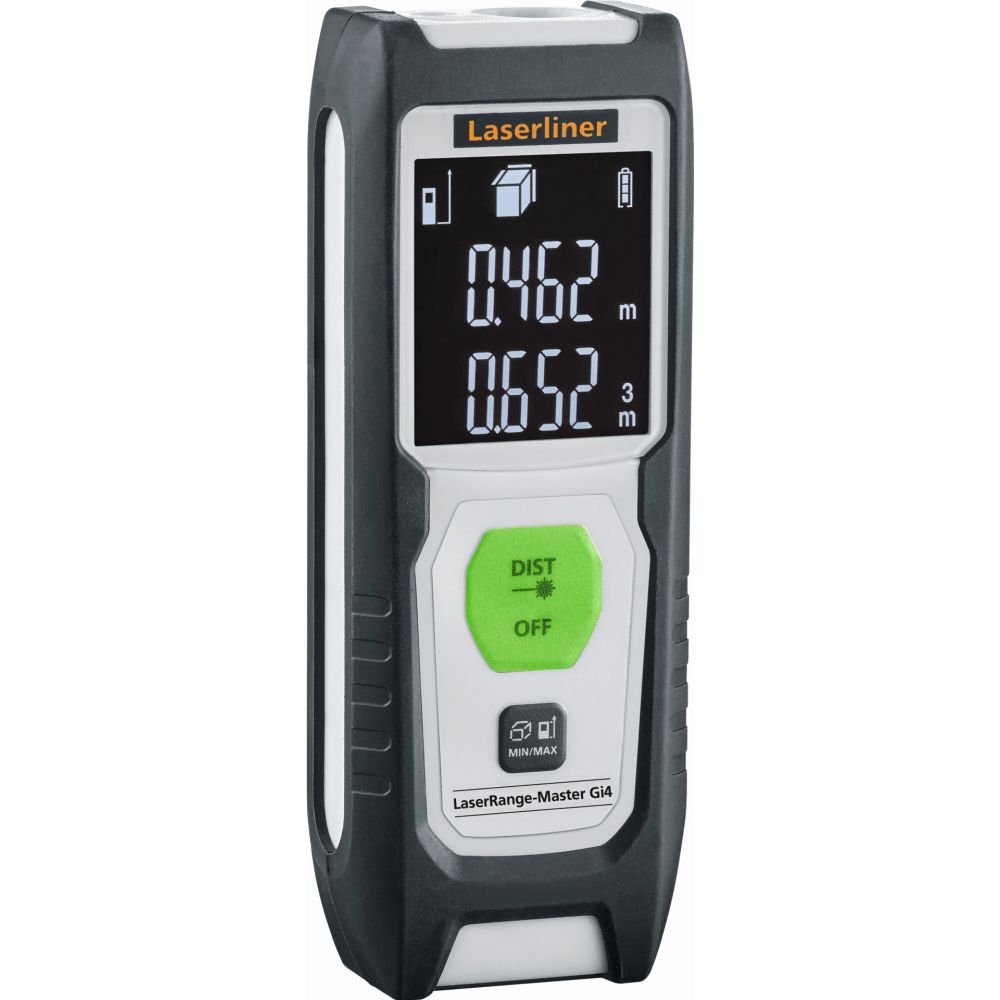

LaserRange-Master Gi4

Laser rangefinder with green laser technology - recycled material is used for sustainability


Description: This laser rangefinder provides precise determination of lengths, areas and volumes, and is perfect for acquiring room sizes and calculating material quantities. Green laser technology guarantees outstanding visibility. The continuous measuring function allows the LC display to show the maximum, minimum and current values. The highly legible display, selectable housing reference point, and compact design make this device extremely easy to use. Excellent protection is provided by the rubberised casing, which s mainly made of recycled plastic, contributing greatly to sustainability. After short periods of inactivity, first the laser and then the device shuts down to save energy.

  • Sustainable design: large proportion of the housing is made from recycled plastic

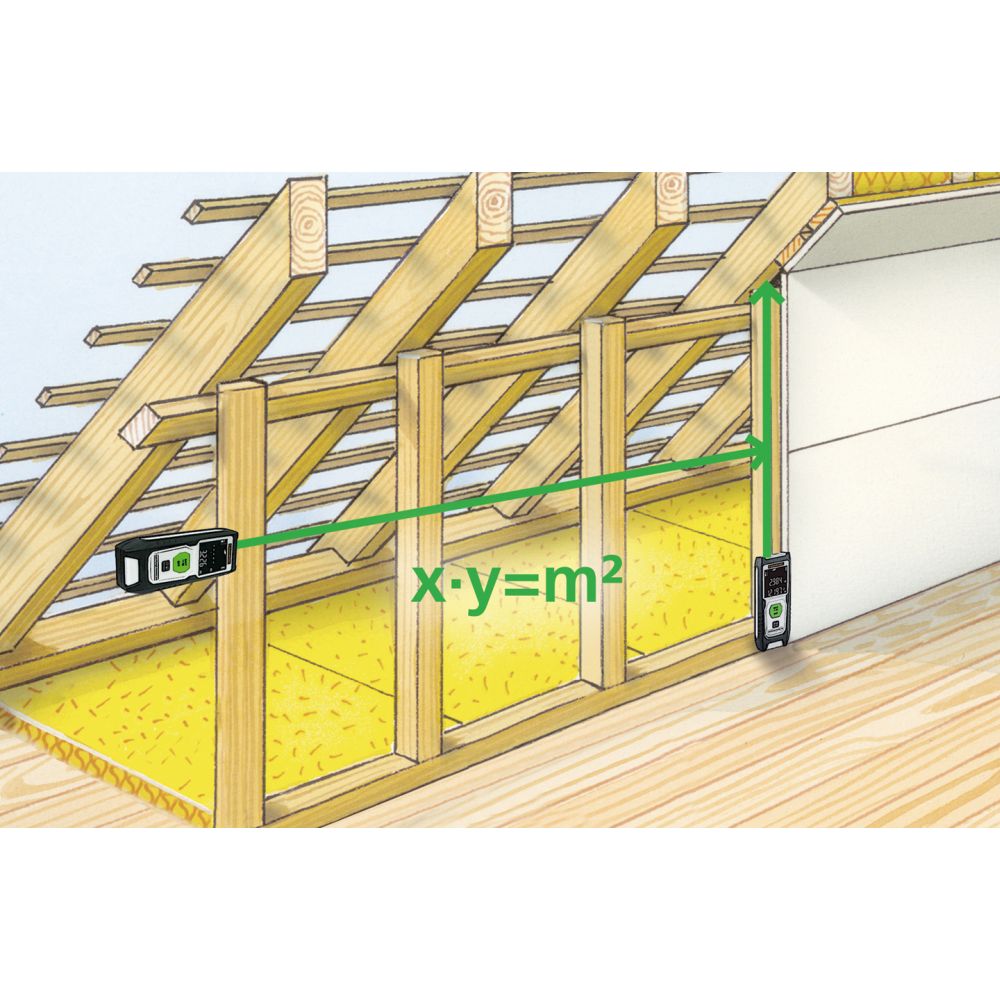

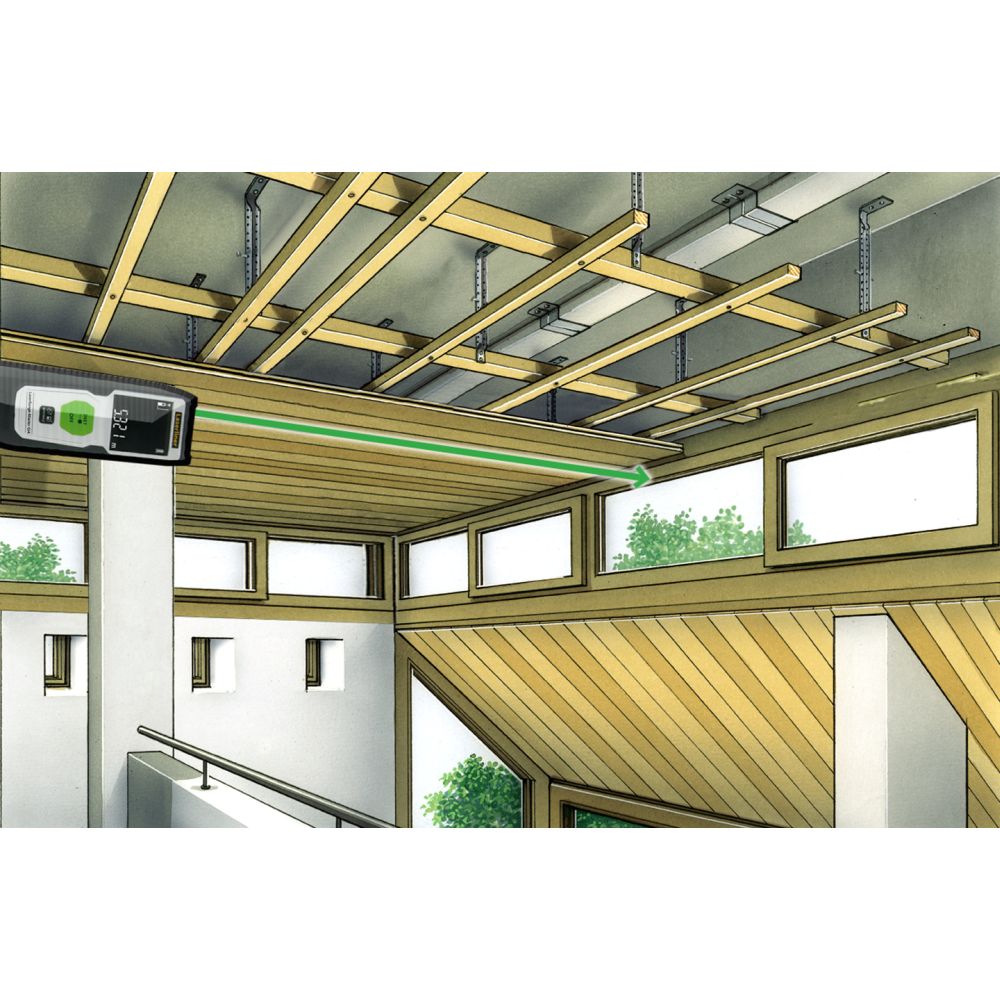

  • Point-precise laser measurement for determining lengths, areas and volumes

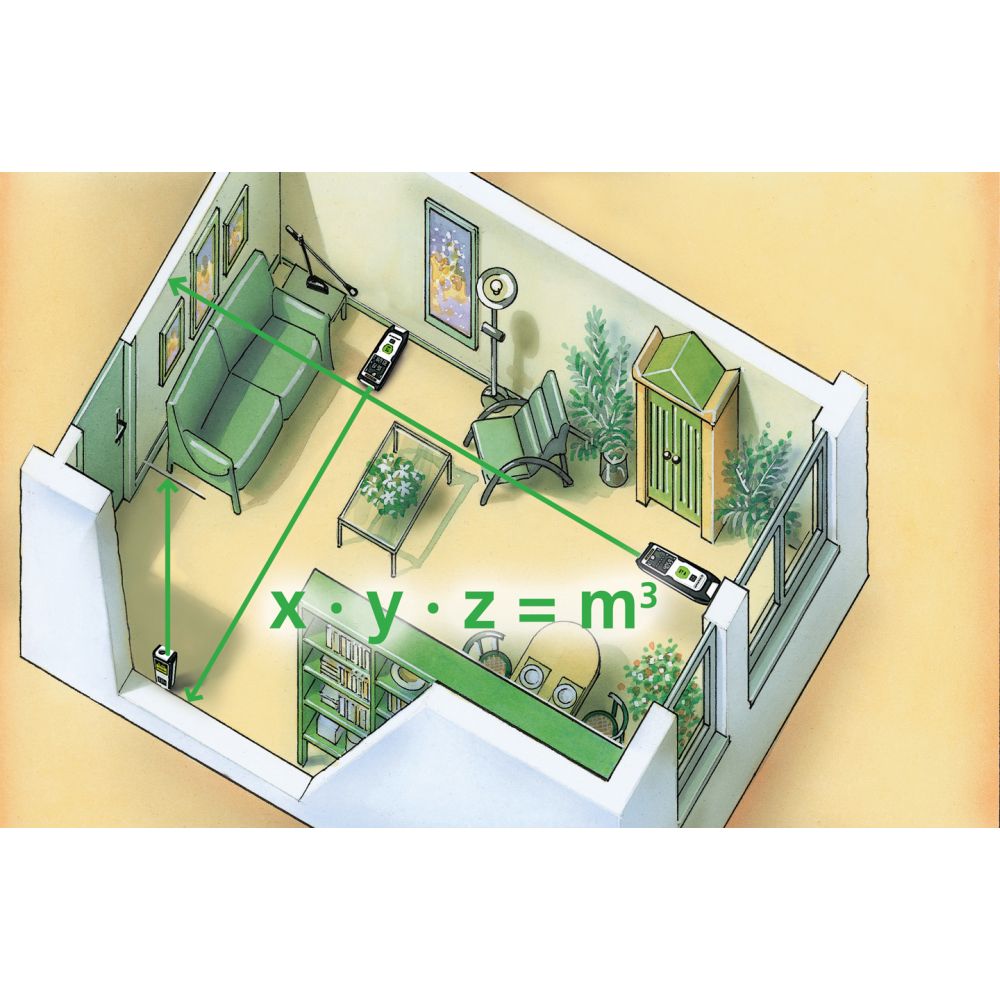

  • Ideal for recording room sizes and calculating material quantities
  • Good visibility through green laser technology
  • Measuring levels with practical switching function: front and rear

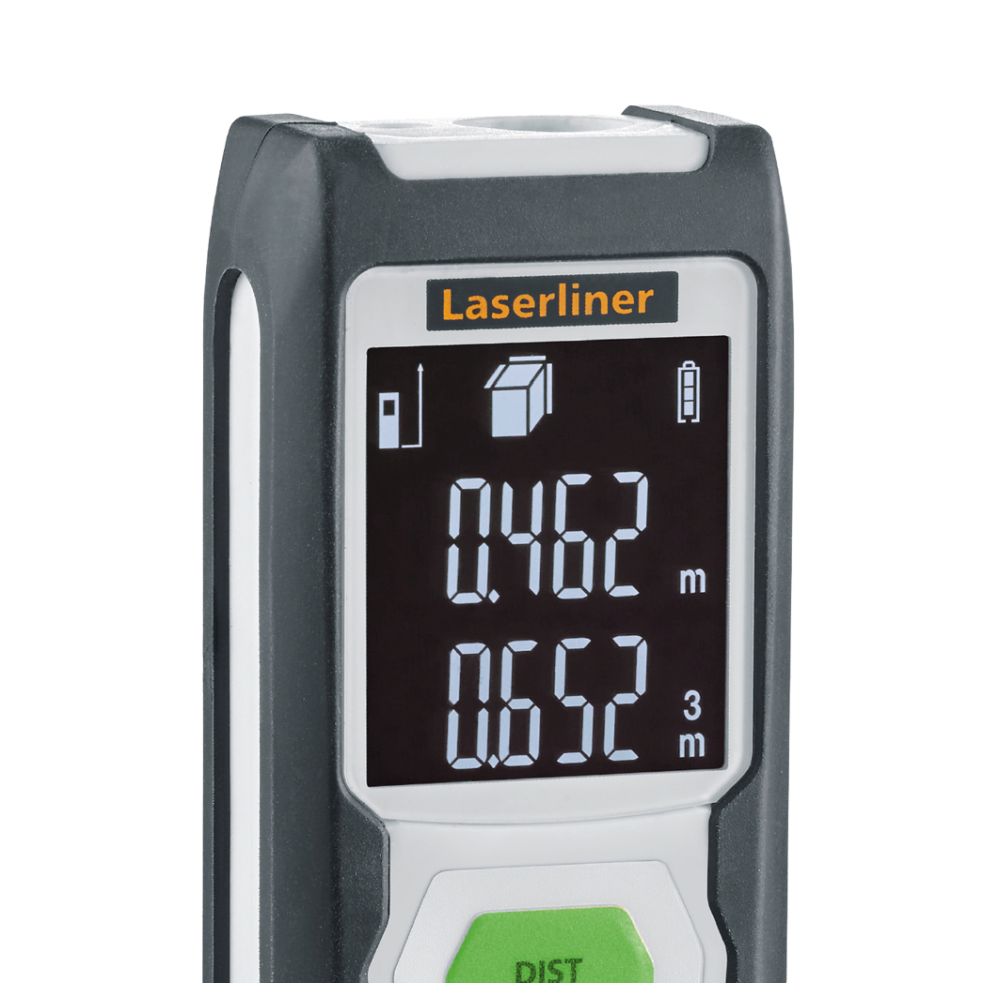

  • Easy-to-read LC display
  • Min./max. measurement

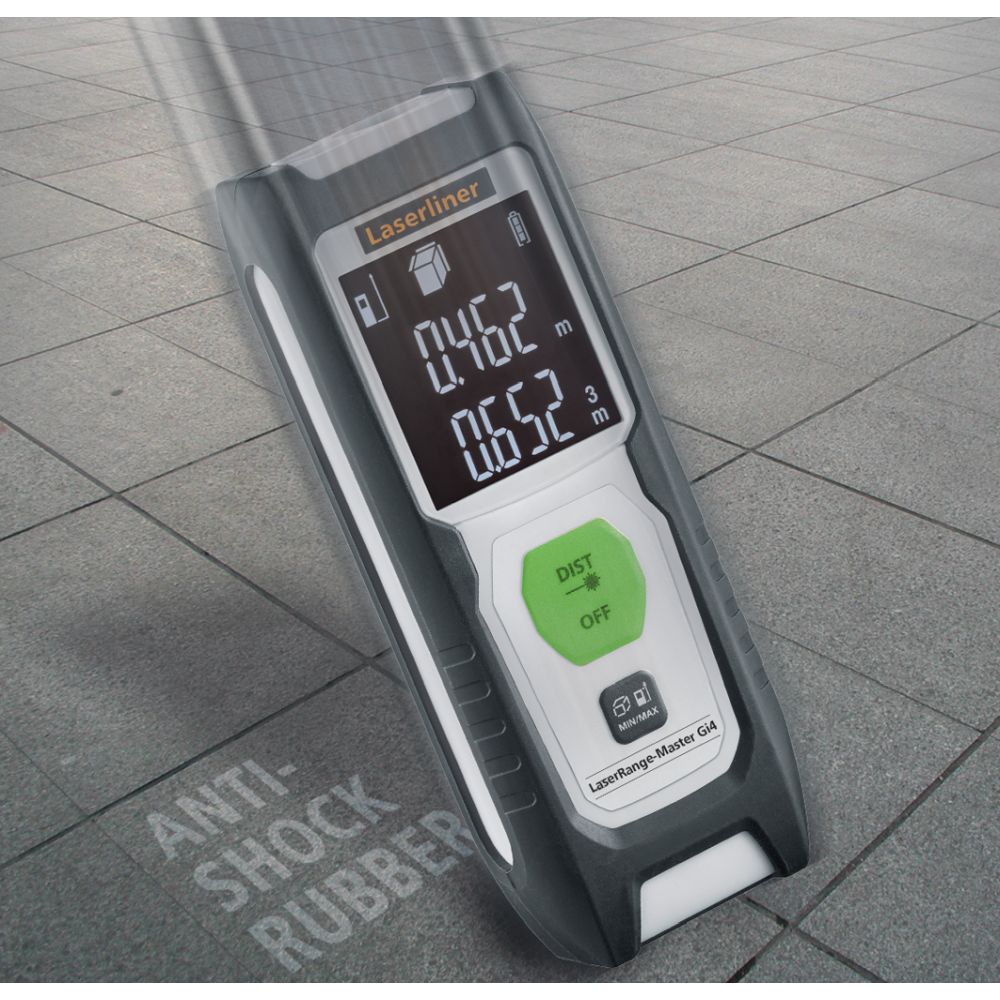

  • Sturdy, ergonomically designed, rubberised casing

  • Length/area/volume
    Min/Max
    Continuous measurement
    Selectable housing reference point
    Precision (Typical)*± 2 mm
    Measurement Range (Inside)**0,3 m - 40 m
    Laser Wavelength515 nm
    Laser Class2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021)
    Unitsm
    Power Supply2 x 1.5V LR03 (AAA)
    Operating Conditions-10°C … 40°C, Luftfeuchtigkeit max. 20 … 85% rH, nicht kondensierend, Arbeitshöhe max. 2000 m über NN (Normalnull)
    Dimensions (W x H x D)40 mm x 110 mm x 24 mm
    Weight90 g (inkl. Batterien)

    Scope of delivery:
  • LaserRange-Master Gi4
  • batteries
  • softbag


  • Documentation:

    Titel:
    Laser rangefinder

    Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
    EcoLine

    Art.No.: 080.833E, GTIN (EAN): 4021563732128
