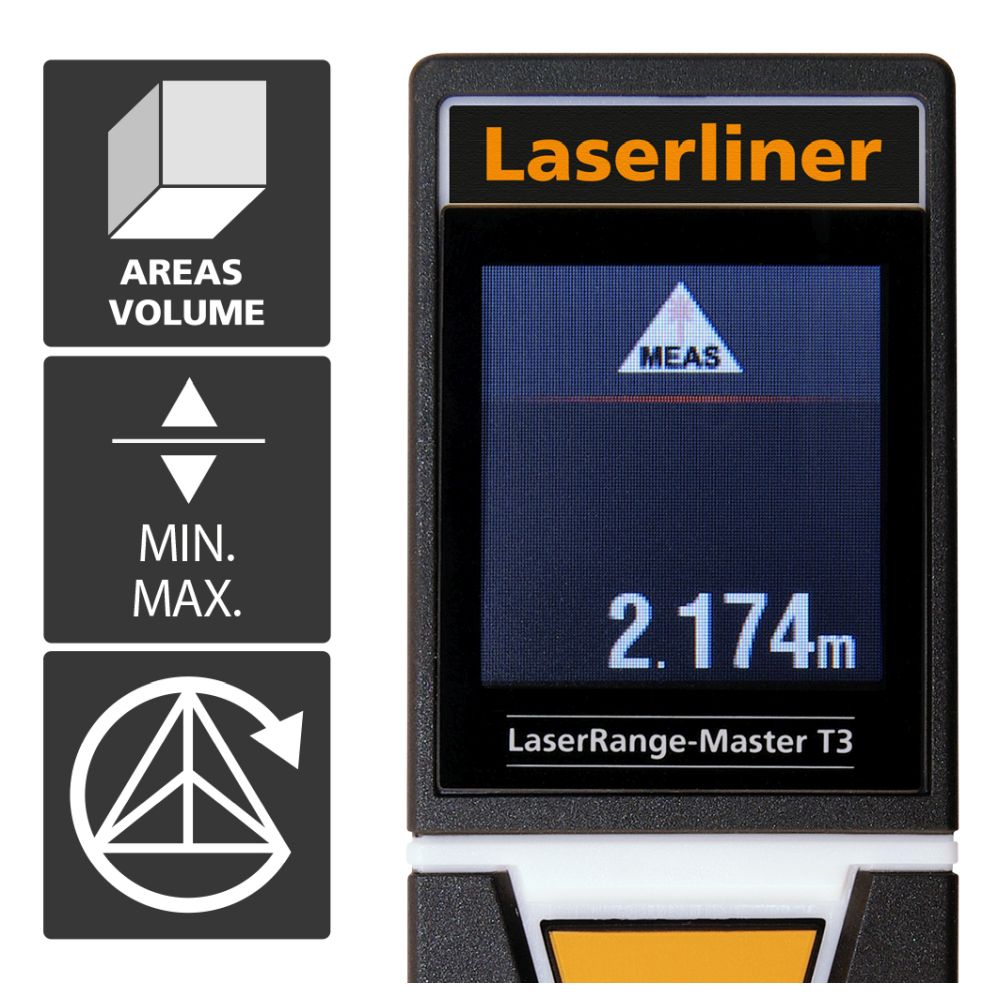

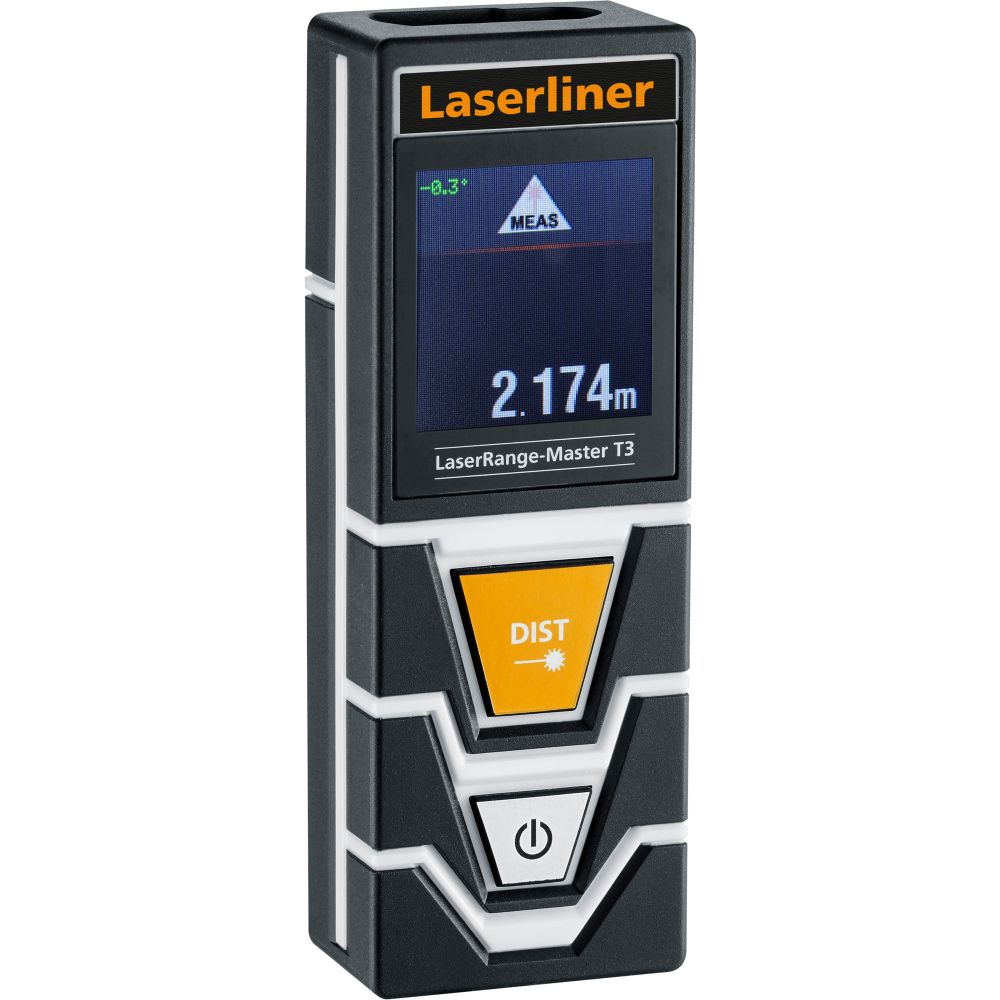

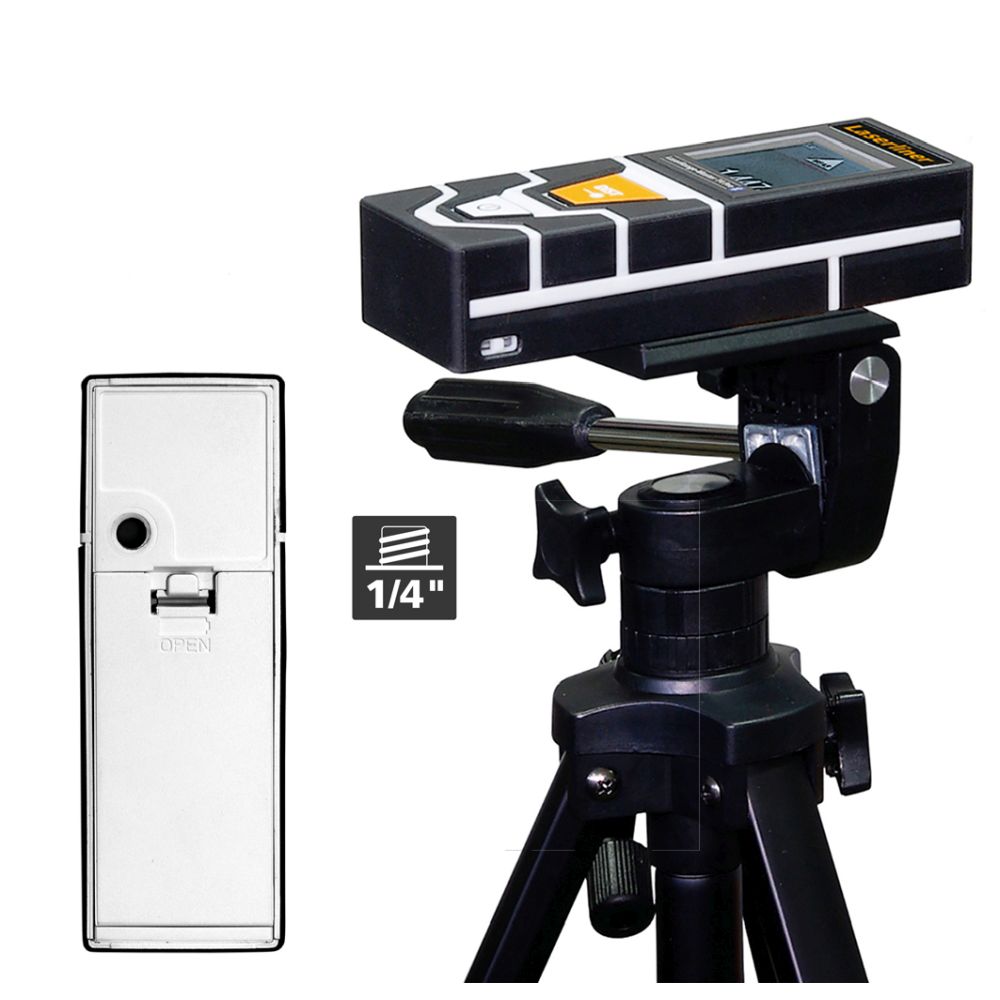

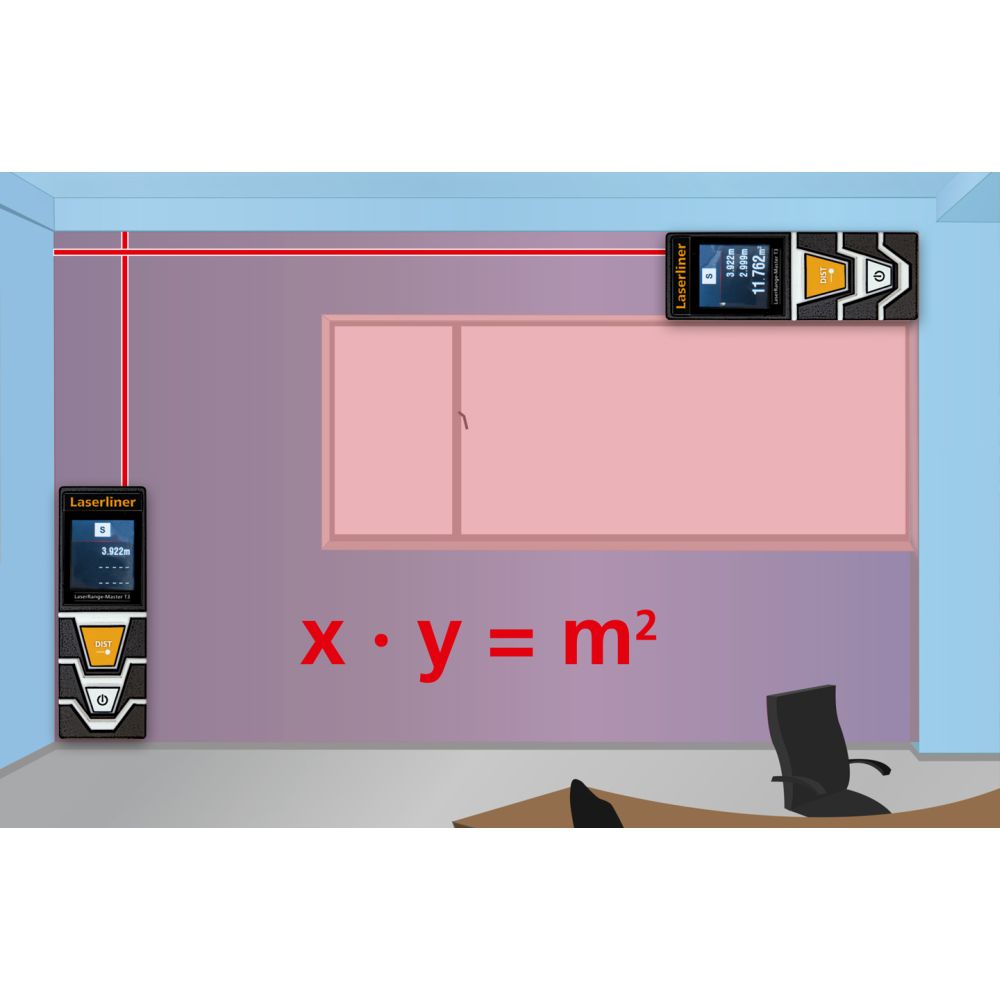

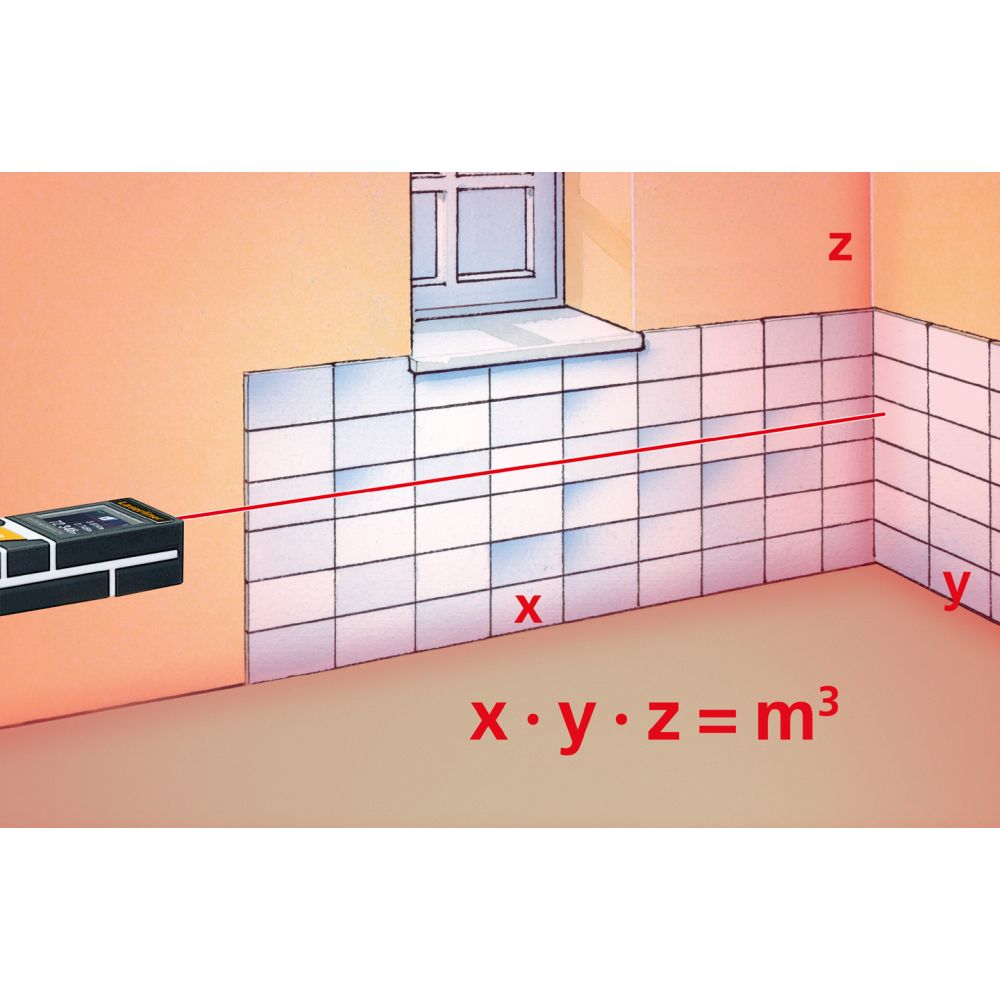

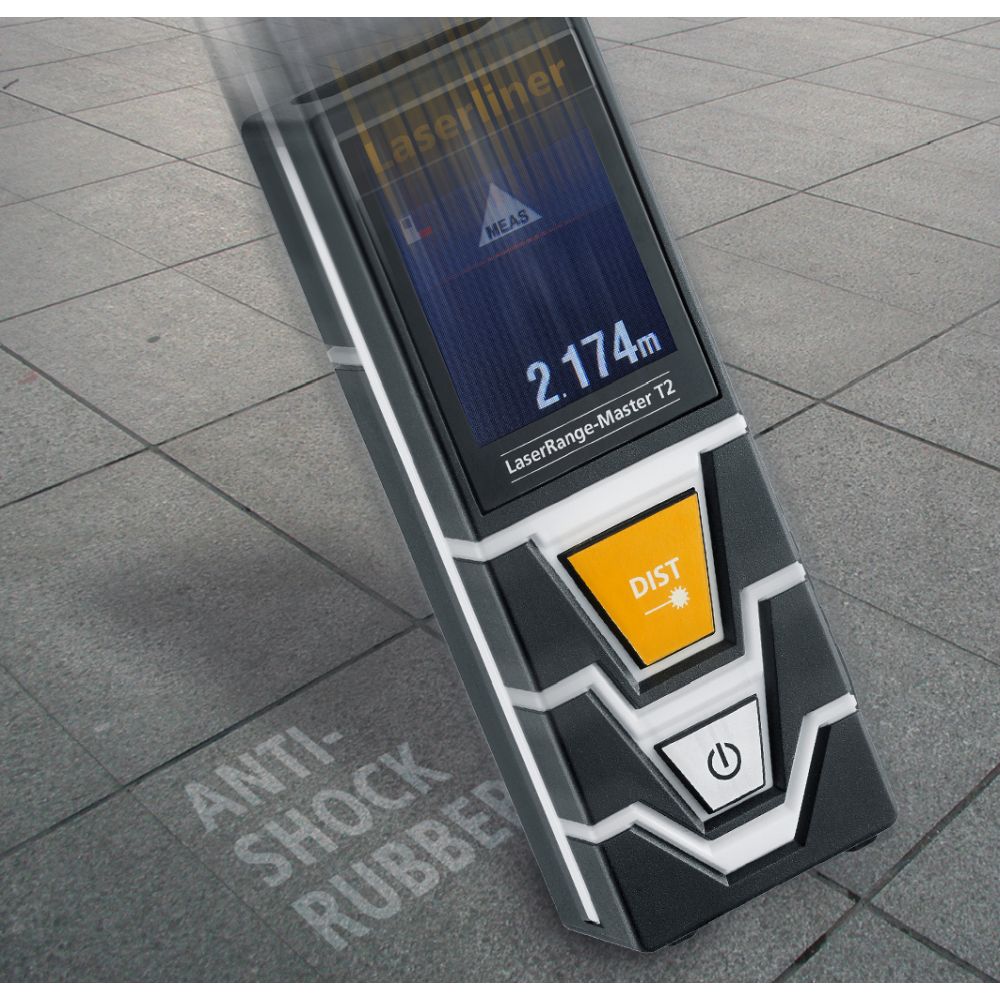

Description: The laser rangefinder provides point-precise determination of lengths, areas and volumes and is perfect for acquiring room sizes and calculating material quantities. The device has a continuous measuring function and an angle function for indirectly determining heights and distances. There are three options for the measuring point: front, rear or tripod. The illuminated, three-line colour LC display and ergonomic housing with a rubber casing make the device easy to use.
| Technical Data | 080.840A LaserRange-Master T3 |
|---|---|
| Title | Laser rangefinder |
| Length/area/volume | ✅ |
| Continuous measurement | ✅ |
| Indirect determination of height (Pythagoras) | ✅ |
| Slope display | ✅ |
| Selectable housing reference point | ✅ |
| Measurement Range (Inside)** | 0,2 m - 30 m |
| Precision (Typical)* | ± 2 mm |
| Laser Wavelength | 650 nm |
| Laser Class | 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021) |

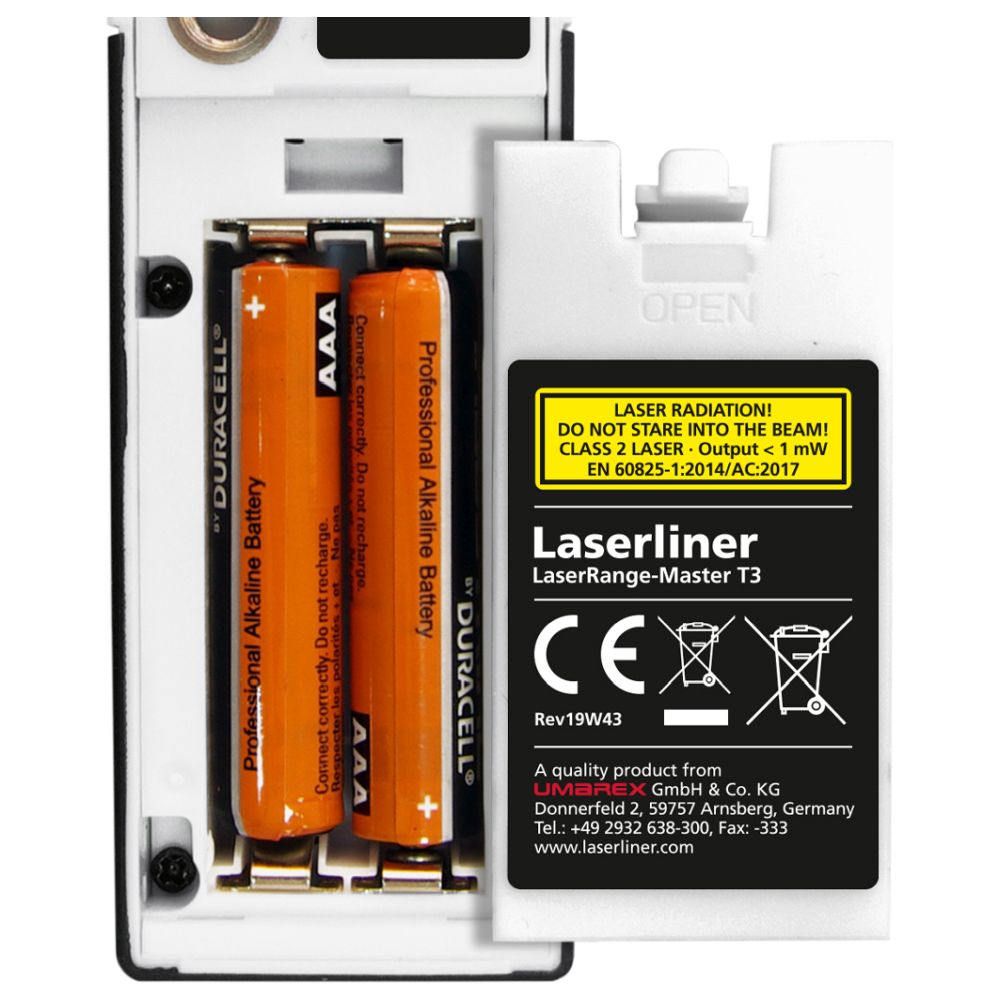

| Power Supply | 2 x 1.5V LR03 (AAA) |
| Operating Time | 3500 measurements |
| Temperature (Working Conditions) | 0°C … 40°C |

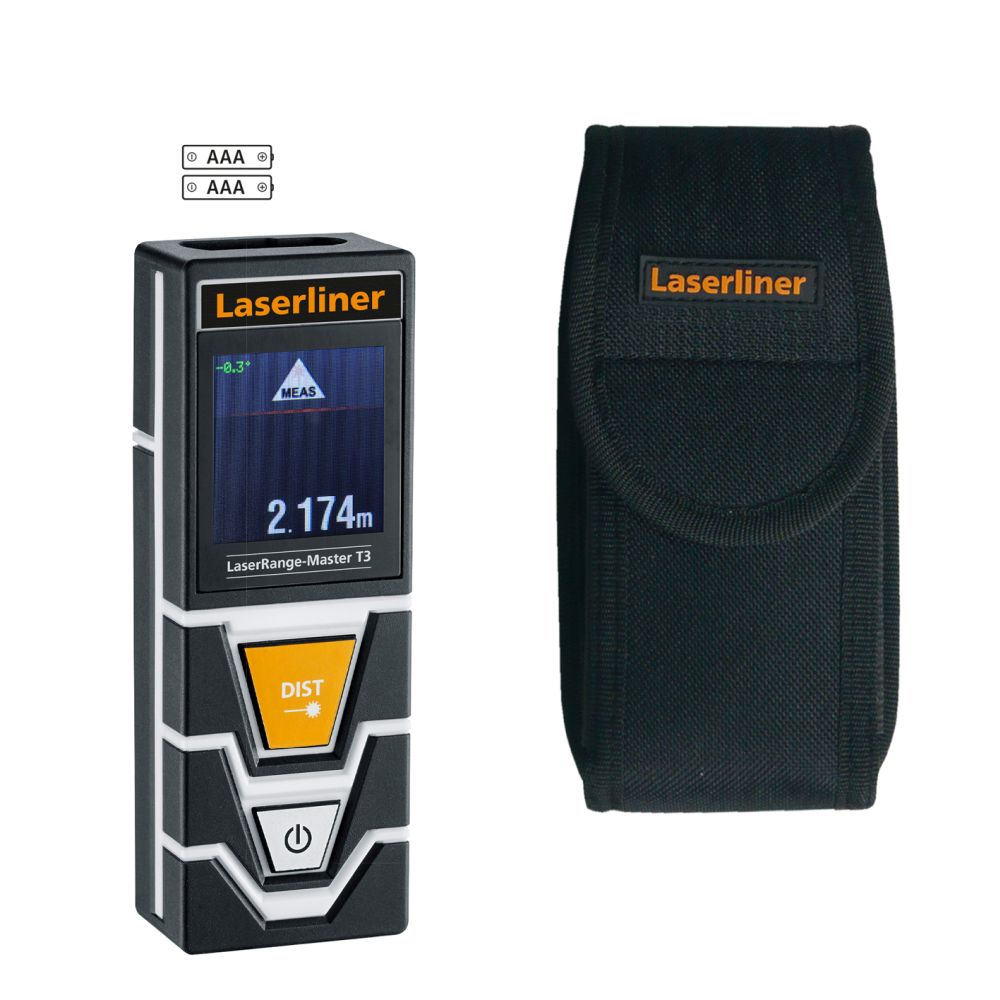

Scope of delivery:
Documentation:
Product information sheetTitel:
Laser rangefinder
Industrial Quality (BlackLine) / Professional Technology (OrangeLine):
Art.No.: 080.840A, GTIN (EAN): 4021563698141
